45 OHM TALKBACK MARINE HORN
FEATURES:
INDOOR/OUTDOOR USE
USE WITH HANDSFREE TALKBACK CONTROL UNITS
HIGH IMPACT ASA HOUSING
UTILIZES STANDARD CAT 3, 5, OR 6 CABLE
OMNI-DIRECTIONAL MOUNTING BASE
WALL OR ELECTRICAL BOX MOUNT
I-BEAM CLAMP INCLUDED
DESCRIPTION:

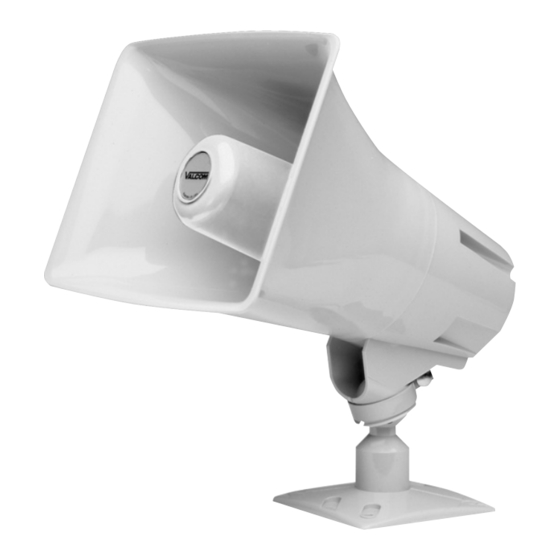

The V-1048M is a weather resistant re-entrant 45 ohm, talkback horn speaker, complete with
horn housing, mounting base and I-beam clamp.
FREQUENCY RESPONSE
225 Hz to 14 kHz
DISPERSION
°
120
Horizontal and 90
VOICE COIL IMPEDANCE
45 ohms
SENSITIVITY AS A MICROPHONE
9 mV into 45 ohms at a level of 71.6 dB
MOUNTING
Omni-Directional mounting fully adjustable,
°
360
horizontal and 160
for wall or electrical box mounting with I-beam
clamp included.
5614 Hollins Road
Roanoke, Virginia 24019
E-Mail: support@valcom.com
MODEL V-1048M
SPECIFICATIONS:
°
Vertical
°
vertical. Detachable base
SPECIFICATIONS
HOUSING AND FINISH
The horn and mounting base are made of high
impact ASA plastic.
ENVIRONMENT
Temperature: -4 to +131
Humidity: 0-95% Non-Condensing
DIMENSIONS AND WEIGHT
7.38" (18.75 cm) H x 10.0" (25.40 cm) W x 10.5"
(26.67cm) D
Weight: 4.4 lbs (2.0 kg.)
Phone: 540-563-2000
www.valcom.com
TECHNICAL
°
°C
F ( -20 to +55
)
Fax: 540-362-9800
