F1
F1
F1
Thermal Pad F 1.0 mm
F1

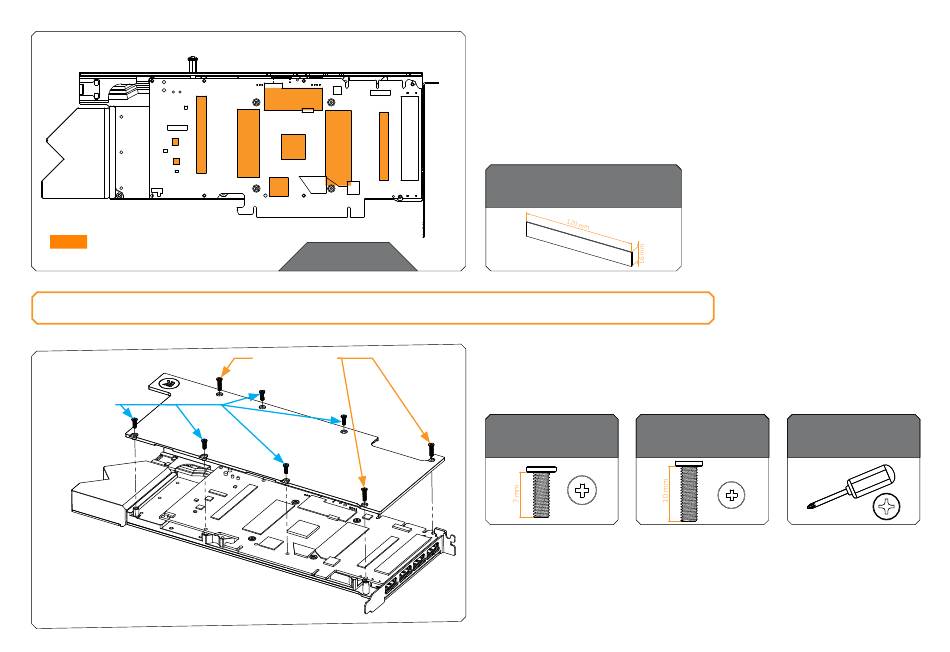

ATTACHING THE BACKPLATE TO THE GRAPHICS CARD

SCREW AX1
M2.5 x 7 (5x)
F1
F1
F1
F1
F1
F1
STEP 2
SCREW AX1
M2.5 x 10
(3x)
STEP 2

MOUNTING BACKPLATE ON PCB

Again, cut thermal pads to needed size. Thermal pads should be
placed on the back of PCB, as illustrated below. EK made sure to
provide you with more than an adequate quantity of thermal pads
to complete this Step.
For this Step, you will need:
Thermal Pad F 1.0 mm (5x)
(3830046996732)
Use three (3) M2.5 x 10 AX1 Screws and five (5) M2.5 x 7 AX1 Screws.
Tighten the screws evenly using the Phillips head screwdriver.
For this Step, you will need:
M2.5 x 7 AX1
Screw (5x)
- 11 -
M2.5 x 10 AX1
Phillips Head
Screw (3x)
Screwdriver
