EK-Mana

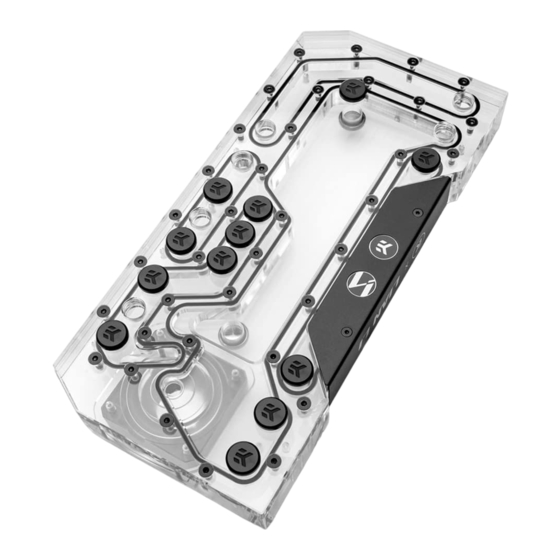

G2 PC-O11D EVO DDC D-RGB
DISTRIBUTION PLATE
USER GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EK-Mana G2 PC-O11D EVO DDC D-RGB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for EK EK-Mana G2 PC-O11D EVO DDC D-RGB

  • Page 1 EK-Mana G2 PC-O11D EVO DDC D-RGB DISTRIBUTION PLATE USER GUIDE...
  • Page 2 Before you start using this product please follow these basic guidelines: Please carefully read the manual before beginning with the installation process! The EK Fittings require only a small amount of force to screw them firmly in place since the liquid seal is ensured by the rubber O-ring gaskets.
  • Page 3: Table Of Contents

    TABLE OF CONTENT BOX CONTENTS DISTRIBUTION PLATE DIMENSIONS MOUNTING HOLES DIMENSIONS TECHNICAL SPECIFICATIONS AND PRODUCT PARTS PREPARING THE PC CASE INSTALLING THE DISTRIBUTION PLATE RECOMMENDED DISTRIBUTION PLATE CONFIGURATIONS FLOW DIAGRAM CONNECTING THE D-RGB LED STRIP CONNECTING THE PUMP TESTING THE LOOP SUPPORT AND SERVICE SOCIAL MEDIA - 3 -...
  • Page 4: Box Contents

    BOX CONTENTS Allen Key 6 mm (1 pc) Screw M4 x 8 DIN7984 (16 pcs) Allen Key 2.5 mm (1 pc) EK-Mana G2 PC-O11D EVO DDC D-RGB Distribution Plate - 4 -...
  • Page 5: Distribution Plate Dimensions

    DISTRIBUTION PLATE DIMENSIONS 142 mm 120 mm 55 mm 48 mm 87 mm 20 mm 73 mm 33 mm 62 mm 51 mm - 5 -...
  • Page 6: Mounting Holes Dimensions

    MOUNTING HOLES DIMENSIONS 135 mm 128 mm 23 mm 10 mm - 6 -...
  • Page 7: Technical Specifications And Product Parts

    Plexi part (Bottom) 104810 Plexi part (Top) 104812 LED Cover 104510 EK-Badge 104813 OR Set 3831109837580 EK-DDC 4.2 PWM pump 3831109834282 Plug Cover 8312 Screw M4 x 16 DIN7991 9039 Screw M4 x 18 DIN7991 8472 Screw M3 x 6 DIN7991 100006...
  • Page 8: Preparing The Pc Case

    PREPARING THE PC CASE STEP 1 Unscrew the factory provided screws and remove the top panels from the case. (On the photos, the Lian Li O11 Dynamic EVO PC Case is shown.) STEP 1 STEP 2 Remove both side panels and the front panel from the case. STEP 2 - 8 -...
  • Page 9: Installing The Distribution Plate

    From the backside of the PC case, secure the distribution plate through the fan bracket using M4 x 8 DIN7984 screws. The screws shouldn’t be over-tightened to avoid cracking the acrylic. EK recommends using the EK-Loop Torque Screwdriver - 0.6Nm: M4 x 8 https://www.ekwb.com/shop/ek-loop-torque-screwdriver-0-6nm DIN7994...
  • Page 10: Recommended Distribution Plate Configurations

    RECOMMENDED DISTRIBUTION PLATE CONFIGURATIONS To complete your loop, all ports must be used as marked in the image. All remaining unused ports must be closed with supplied plugs, RADIATOR using the Allen Key 6 mm. FILL (INLET) Only one INLET and one OUTLET port for the GPU connection can be used, while all other INLET and OUTLET GPU ports must be closed with G1/4 plugs.
  • Page 11 FILL DRAIN - 11 -...
  • Page 12: Flow Diagram

    FLOW DIAGRAM - 12 -...
  • Page 13: Connecting The D-Rgb Led Strip

    D-RGB Header RGB Header CONNECTING THE PUMP The EK DDC PWM pump has two connectors. 1. SATA Connector: It must be connected directly to your PSU at all times as it is used to power the pump. 2. 4-pin PWM Fan Connector: It can be connected to your motherboard’s CPU, fan, or designated water pump header.
  • Page 14: Testing The Loop

    TESTING THE LOOP To make sure the installation of EK components was successful, we recommend you perform a leak test for 24 hours. When your loop is complete and filled with coolant, connect the pump to a PSU outside of your system. Do not connect power to any of the other components.
  • Page 15: Support And Service

    SPECIFICATIONS AND PRODUCT PARTS” where you can find the EAN number of each part you might need. Include the EAN number with quantity in your request. Mounting Mechanism EAN can be found under “BOX CONTENTS” Thermal pads are readily available in the EK shop SOCIAL MEDIA EKWaterBlocks @EKWaterBlocks...
