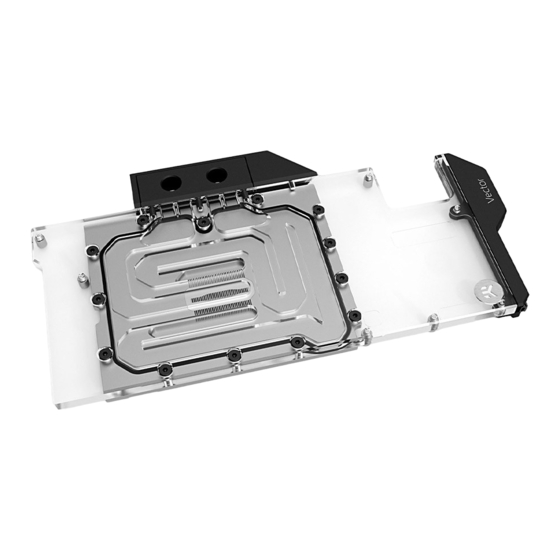

- Page 1 EK-Quantum Vector N+ RX 6800XT/6900XT GPU WATER BLOCK USER GUIDE...
- Page 2 GPU or its circuit board (PCB). EK Fittings require only a small amount of force to screw them firmly in place since the liquid seal is ensured with the rubber O-ring gaskets.
-
Page 3: Table Of Contents
TABLE OF CONTENTS BOX CONTENTS WATER BLOCK DIMENSIONS TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS PREPARING YOUR GRAPHICS CARD REMOVING THE STOCK COOLER CLEANING THE PCB CUTTING AND PLACING THERMAL PADS APPLYING THERMAL COMPOUND INSTALLING THE WATER BLOCK PLACING THE BLOCK ON THE GRAPHICS CARD ATTACHING THE BLOCK TO THE GRAPHICS CARD CHECKING FOR CONTACT INSERTING THE GRAPHICS CARD INTO THE CHASSIS... -
Page 4: Box Contents
Universal Mounting Mechanism – You may not need every screw from this package. EAN: 3831109834688 M2.5x4 AX1 Screw (30 pcs) PVC Washer M2.5 (28 pcs) EK-Quantum Vector N+ RX 6800XT/6900XT M2.5 Nut (6 pcs) Thermal Grease (1 pc) Allen Key 2 mm (1 pc) -
Page 5: Water Block Dimensions
WATER BLOCK DIMENSIONS 285 mm 16.5 mm 197 mm 168 mm - 5 -... -
Page 6: Technical Specifications And Water Block Parts
Standoff M4/M2.5 x 2.50 L 8533 Standoff M4/M2.5 x 2.50 8541 Standoff M4/M2.5 x 6.60 103617 Coldplate 103624 Main O-Ring 101340 Jet plate M4/2.5 x 6.60 M4/2.5 x 2.5 100663 EK - Badge STANDOFF STANDOFF 9013 M4x8 DIN7984 Screw - 6 -... -
Page 7: Preparing Your Graphics Card
Wipe off the remains of the original thermal compound using a nonabrasive cloth or Q-tip, as shown in the sample image, until the components and circuit board are completely clean. EK recommends the use of denatured alcohol for removing TIM leftovers. After that, remove all remaining stock thermal pads from the PCB. -
Page 8: Cutting And Placing Thermal Pads
Once cut to size, thermal pads should be placed on the PCB, as Thermal Pad F 1.0 mm illustrated below. EK made sure to provide you with more than an adequate quantity of thermal pads to complete this Step. STEP 2... -
Page 9: Applying Thermal Compound
APPLYING THERMAL COMPOUND STEP 1 Apply the enclosed EK-TIM Ectotherm thermal grease (thermal compound) on the GPU heat spreader – IHS – as shown in the image. The layer of the thermal compound must be thin and even over the entire surface of the IHS. -
Page 10: Attaching The Block To The Graphics Card
M2.5 x 4 AX1 SCREW Use sixteen (16) M2.5 x 4 AX1 Screws and M2.5 PVC Washers. Tighten the screws evenly using the Phillips head screwdriver. EK M2.5 PVC WASHER recommends you start tightening the screws around the GPU core first and then continuing outward to prevent damaging the GPU. -
Page 11: Inserting The Graphics Card Into The Chassis
Do not forget to plug the remaining two openings with enclosed EK-Plug G1/4 or its equivalent. EK recommends using EK fittings with all EK water blocks. EK- PLUG G1/4... -
Page 12: Connecting The D-Rgb Led Strip
RGB HEADER STEP 1 TESTING THE LOOP To ensure the installation of EK components was successful, we recommend you perform a 24-hour leak test. When your loop is complete and filled with coolant, connect the pump to a PSU outside your system. Do not connect power to any of the other components. -
Page 13: Support And Service
EAN number of each part you might need. Include the EAN number with quantity in your request. Mounting Mechanism EAN can be found under “BOX CONTENTS” Thermal pads are readily available in the EK shop SOCIAL MEDIA EKWaterBlocks @EKWaterBlocks...
