Bleeding Air from the System
1� Cycle the hydraulic system until operation is smooth and consistent.
2� Check the pump reservoir level. Add Power Team hydraulic fluid as needed.
Air Motor Operation
Connect the air supply line. The remote hand control
has two momentary push buttons, advance and
retract, with spring offset to hold. Press push buttons
accordingly.
Adjusting the Pressure Regulating Valve
NOTE: For easy adjustment of the pressure regulat-
ing valve, always adjust the pressure by increasing
to the desired pressure setting.
1� The pump must be completely connected.
2� See Figure 7. Turn adjustment knob counter-
clockwise to decrease the setting to a lower than
desired pressure.
3� Using the pendant, operate the pump motor to apply
pressure to the system.
4� Slowly turn the adjusting knob in a clockwise
direction. This gradually increases the pressure
setting until the desired pressure is reached.
IMPORTANT : The pressure range is from 69-690
bar (1,000 to 10,000 psi) depending on the pump
model.
© SPX FLOW, Inc.

OPERATING INSTRUCTIONS

10

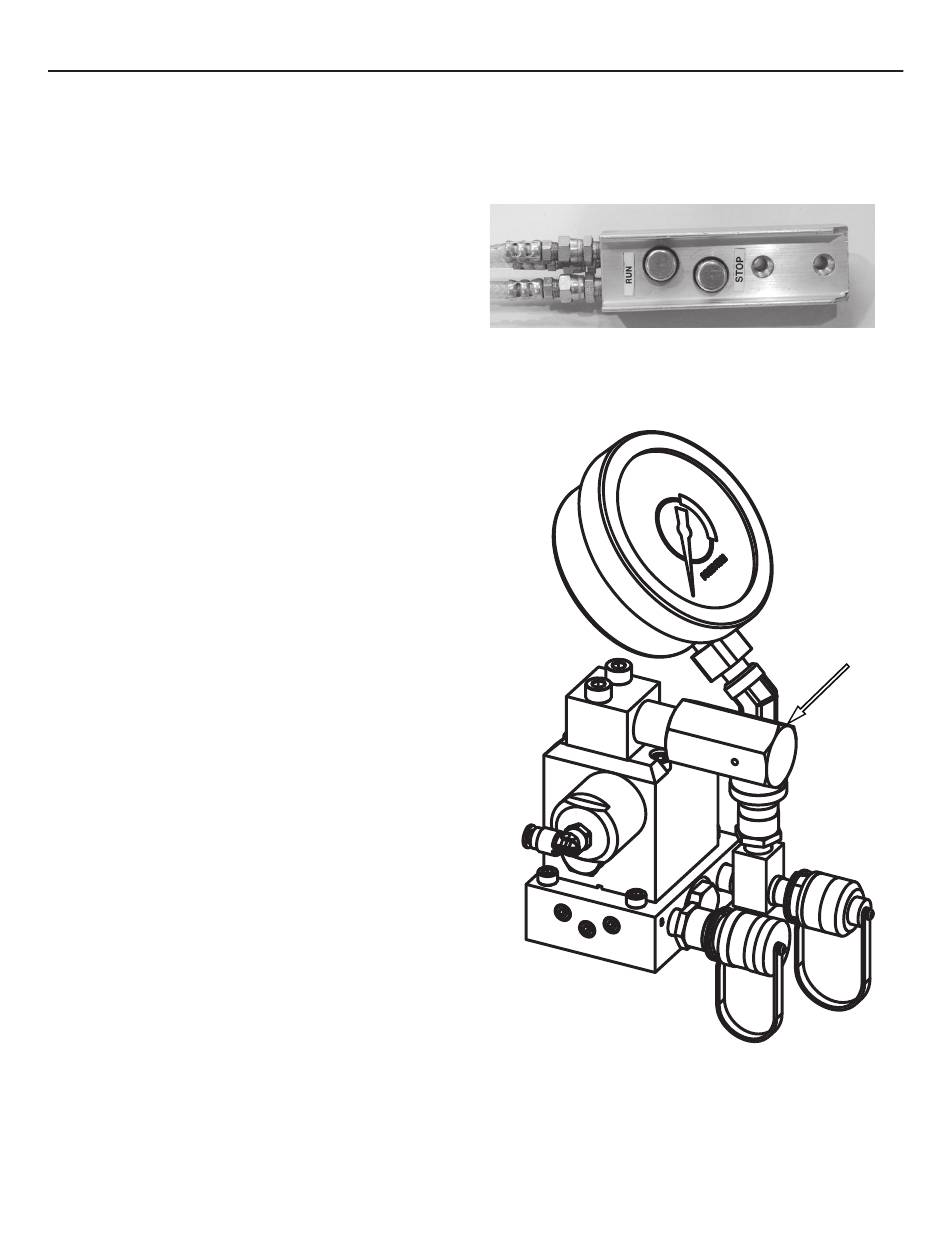

Figure 6. Air Pendant Control
