Remote Control Alarm & Remote Engine Starting System
CONGRATULATIONS on your choice of a Super Rage™ Alarm & Remote Engine Starter with DP Technology
by Crimestopper Security Products Inc. This booklet contains the information necessary for operating your
system. If any questions arise, contact your installation dealer or Crimestopper Security Products Inc.
*IMPORTANT INFORMATION: Primary and Optional Features
-PRIMARY: These are features that must be connected in order for the system to operate properly i.e. Power,
Ground, Lights, Siren, etc.
-OPTIONAL: Optional features are connected only if desired or agreed upon by the installing dealer i.e. Door
Locks, Horn Honk, Dome light illumination, Starter Kill, L.E.D., Trunk Pop, etc. These features may require
additional parts and labor charges. Consult with your installer about these features before installation.
CONTACT INFORMATION:
TECHNICAL SUPPORT (800)-998-6880
Monday - Friday 8:00am - 4:30pm Pacific
Website: www.crimestopper.com
E-mail: tech-support@crimestopper.com
CRIMESTOPPER
SECURITY PRODUCTS, INC.
1770 S. TAPO STREET
SIMI VALLEY, CA. 93063
CS-2011DP
DP Series (Data Port)
Super Rage™
OPERATION INSTRUCTIONS
INTRODUCTION
This device complies with FCC Rules part 15. Operation is subject
to the following two conditions: 1) This device may not cause
interference, and (2) this device must accept any interference that
may be received, including interference that may cause undesired
operation. The manufacturer is not responsible for any radio or TV
interference
equipment. Such modification could void the user's authority to
operate the equipment.
REV.B 1.10.2006
caused
by
unauthorized
modification
to
this
Advertisement
Table of Contents
Related Manuals for CrimeStopper Super Rage CS-2011DP
Summary of Contents for CrimeStopper Super Rage CS-2011DP
- Page 1 CONGRATULATIONS on your choice of a Super Rage™ Alarm & Remote Engine Starter with DP Technology by Crimestopper Security Products Inc. This booklet contains the information necessary for operating your system. If any questions arise, contact your installation dealer or Crimestopper Security Products Inc.
-
Page 2: Table Of Contents
Troubleshooting: “Before you call section”………………………………………………………………………...….15 OPERATION CAUTIONS & WARNINGS CRIMESTOPPER SECURITY PRODUCTS, INC. and its VENDORS shall not be liable for any accident resulting from the use of this equipment. This system is designed to be professionally installed into a car or vehicle in good running order. -
Page 3: Quick Guide

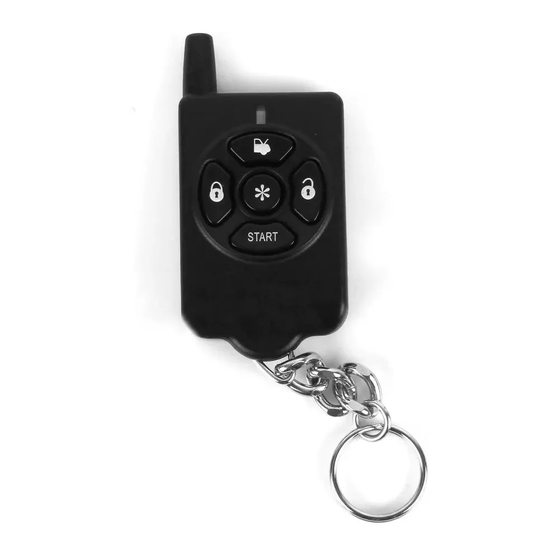

REMOTE OPERATION QUICK GUIDE OPERATION: BUTTON 1 (Lock Symbol): · Press and release to Lock doors. · Press and Hold for more than 3 seconds to activate “Panic” feature. BUTTON 2 (Unlock Symbol): · Press and release to Unlock doors. ·... -
Page 4: Operating Instructions - Alarm
OPERATING INSTRUCTIONS - ALARM Arming / Locking: Press and release button #1 (Lock symbol) on the transmitter. The System will arm and confirm with one siren chirp, one light flash, and the LED will begin to flash. Power locks will lock (if equipped). Starter disable circuit will turn on. - Page 5 OPERATING INSTRUCTIONS - ALARM Remote Panic Protection To sound the alarm in an emergency situation or to draw attention to your vehicle, press and hold Button #1 (Lock) for at least 3 seconds until the siren sounds. Press Button #2 (Unlock) to reset panic mode. Arming With Shock Sensor Bypass To arm the alarm and bypass shock sensor protection, press Button #1 as normal then press and release Button #1 and #2 together within 2 seconds.
- Page 6 OPERATING INSTRUCTIONS - ALARM Remote AUX. Output 2 (Optional) This system contains a second auxiliary output to activate other accessories or devices. To activate the systems’ Second Auxiliary Output, Press button 5, then press button 1. Output stays on as long as the button is held.
-
Page 7: Alarm
The CS-2011DP system includes disarm diagnostics, through the RED LED light, that will help in determining what caused the last trigger of the alarm system. This is a valuable tool in determining how the vehicle was tampered with or if there is a false alarm problem in which case you can make the necessary adjustments to correct the problem. - Page 8 REMOTE ENGINE CONTROL REMOTE ENGINE STARTING - SUCCESSFUL START DIAGRAM: SOLID FLASH 1X AFTER STARTER SEC. THEN SOLID REMOTE ENGINE STARTING - UNSUCCESSFUL START In the event that the engine does not start on the first attempt, the system shuts down for a few seconds, then attempts to restart the engine a 2 and 3 time.
- Page 9 ENTERING YOUR REMOTE STARTED VEHICLE: 1) With engine running, Remote Unlock/Disarm system (If armed) or open door with key. 2) Enter vehicle and be careful not to step on brake pedal! (Remote Start Reset) 3) Turn Ignition to ON/RUN position, then press brake pedal to reset the Remote Starter & Shift out of park. 4) Remote starter will reset instantly when the brake is pressed.
- Page 10 INFINITY RUN MODE This mode allows the vehicle’s engine to remain running INDEFINITELY. This mode can be beneficial to law enforcement vehicles or commercial vehicles that need to remain running unattended for long periods of time. INFINITY RUN MODE – EXITING THE VEHICLE: 1) Follow steps on the last page for “IDLE DOWN MODE - EXITING THE VEHICLE”, except press the remote start button TWO times at STEP #1.
-
Page 11: Remote Engine Control
TIMED SELF START MODE This mode allows the vehicle to be programmed to self-start every 4 hours and run for the programmed run time. This can be helpful during extremely cold conditions where engine fluid freeze-up is a concern. THE VEHICLE MUST BE OUTDOORS OR IN A WELL VENILATED AREA. -
Page 12: Optional Turbo Timer Mode
OPTIONAL TURBO TIMER MODE: IMPORTANT NOTE: This mode requires the use of an extra part called a momentary switch or button that is not included with the kit. Check with your installer about adding this feature. The optional Turbo Timer mode allows the your system to keep your vehicle running for 1 to 5 minutes [selectively] after you remove the key, exit the vehicle, and lock the doors remotely [if you own a Turbo or Turbo Diesel]. -
Page 13: Anti-Carjack Protection
REMOTE OPERATED CARJACK PROTECTION This feature provides Active Carjack protection through the remote control. When the Ignition is on (vehicle is running), press and hold the #1 LOCK Button and #3 TRUNK Button for 2 seconds. The parking lights will flash 2 times and the LED will begin to flash rapidly to confirm the beginning of a Carjack countdown. -
Page 14: Transmitter Programming
Note: Remotes Transmitters come pre-programmed from the Factory. When re-learning remotes or adding remotes, ALL your system’s remote codes must be learned at time of programming!! This system allow storage of up to 4 different remote codes in memory. 1. Turn key to the ON position. (Starting the vehicle is not necessary.) 2. -
Page 15: Troubleshooting: "Before You Call Section
TROUBLESHOOTING: “BEFORE YOU CALL SECTION” Before calling your dealer or Crimestopper, read the following for tips that may remedy the problem. SYSTEM IS UNSUCCESSFUL AT REMOTE START DURING EXTREME COLD CONDITIONS: Please be aware that during sub-freezing conditions your remote starter may take more that one attempt to start, or it may not successfully start the vehicle after 3 attempts. - Page 16 ONLINE TECHNICAL SUPPORT Phone (800) 998-6880 www.crimestopper.com FAX (805) 581-9500 © 2005 Crimestopper Security Products...
