Do not handle the luminaire by holding
the cable end!
Refer to the instructions contained in this
document for details.
Surge Protection
This product has a built in level of surge protection. For comprehensive
protection of a luminaire installation against lightning and electrical surges,
it is essential to cover mains supply and data input lines at the distribution
board level, by using respective primary (Type 1) and secondary (Type 2)
surge arrestors in compliance with EN61643-11/IEC61643-1.
Warning
Ensure that all required surge protection measures are in place and
activated prior to luminaire installation. Also, disconnect luminaires before
operating high-power devices such as, for example, electrical arc welders.
WE-EF LEUCHTEN
Installation and Maintenance
Instructions

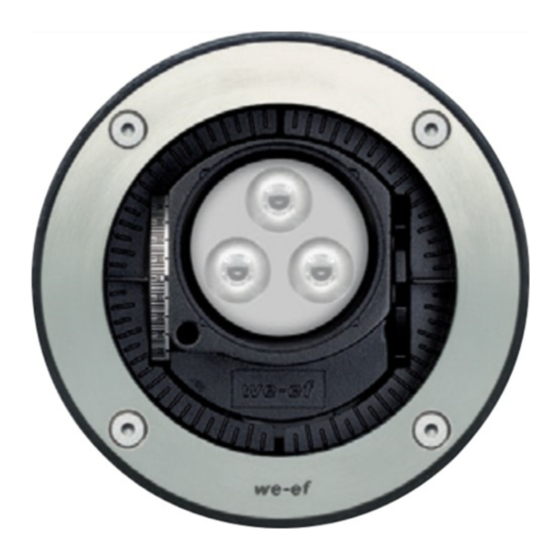

Inground Luminaire
ETC320-GB LED
INSTALLER
HOTLINE
+61 458 933399
7am – 7pm AEST
Advertisement
Related Manuals for WE-EF ETC320-GBLED
Summary of Contents for WE-EF ETC320-GBLED
- Page 1 WE-EF LEUCHTEN Installation and Maintenance Instructions Inground Luminaire ETC320-GB LED INSTALLER HOTLINE Do not handle the luminaire by holding +61 458 933399 the cable end! 7am – 7pm AEST Refer to the instructions contained in this document for details. Surge Protection This product has a built in level of surge protection.
- Page 3 Inground Luminaire IP67, Class I, ta = 25°C Fig. I...
- Page 4 Attention: In case of damage to the lens, the complete lens/gasket assembly must be replaced. 4) In case of damage to the LED, the complete gimbal module X must be returned to WE-EF for factory- maintenance (contact your authorised WE-EF agent for service). To remove the gimbal module proceed as follows (Fig.
-
Page 5: Installation
Installation Installation Methods The product must be installed and maintained by a For proper installation, use the supplied installation suitably qualified professional in compliance with latest blockout. building/construction and/or electrical regulations and relevant legislation. Ensure that proper drainage is provided for the shown installation methods: Warning: Switch off mains electrical supply prior to In landscape areas, soil with gravel base (Fig. - Page 6 Phase One Blockout Installation Procedure (during earth or masonry work) 1) Ensure a suitable recess is provided to accommo- date installation blockout/mounting ring assembly L/H. 2) Set installation blockout/mounting ring assembly L/H in position and ensure that: a)Arrow R on mounting ring H is pointed towards the object to be illuminated (wall, tree, column).
- Page 7 12)Insert screw driver into a slot on locking wheel W. Phase Two Luminaire Installation, Electrical Connection, and Rotate locking wheel W in the 'LOCK' direction Aiming Procedure until the gimbal is firmly secured (Fig. V). Warning: Do not tighten more than necessary to 4) Switch off mains electrical supply.
- Page 9 Fig. IV Fig. V...
- Page 10 NOTE: LED luminaires are static sensitive devices; please ensure that appropriate ESD measures are taken before opening luminaire. If in doubt, please contact WE-EF. The desiccant sachet MUST not be left in the open environment. please seal luminaire down within 15 minutes of opening sachet.
- Page 11 Installation Instruction Inserting Desiccant sachet into ETC gimbal 5. Aim gimbal and tighten 6. Place lens back onto housing noting alignment of indexing stud 7. Tighten cover down to recommended torque in criss-cross pattern as per instructions.
- Page 12 Fax +1 724 742 0035 info.switzerland@we-ef.com info.usa@we-ef.com WE-EF LIGHTING United Kingdom Tel +44 844 880 5346 INSTALLER HOTLINE Fax +44 844 880 5347 info.uk@we-ef.com +61 458 933399 7am – 7pm AEST TO9191W0218 © WE-EF 2020 Technical specifications are subject to change.
