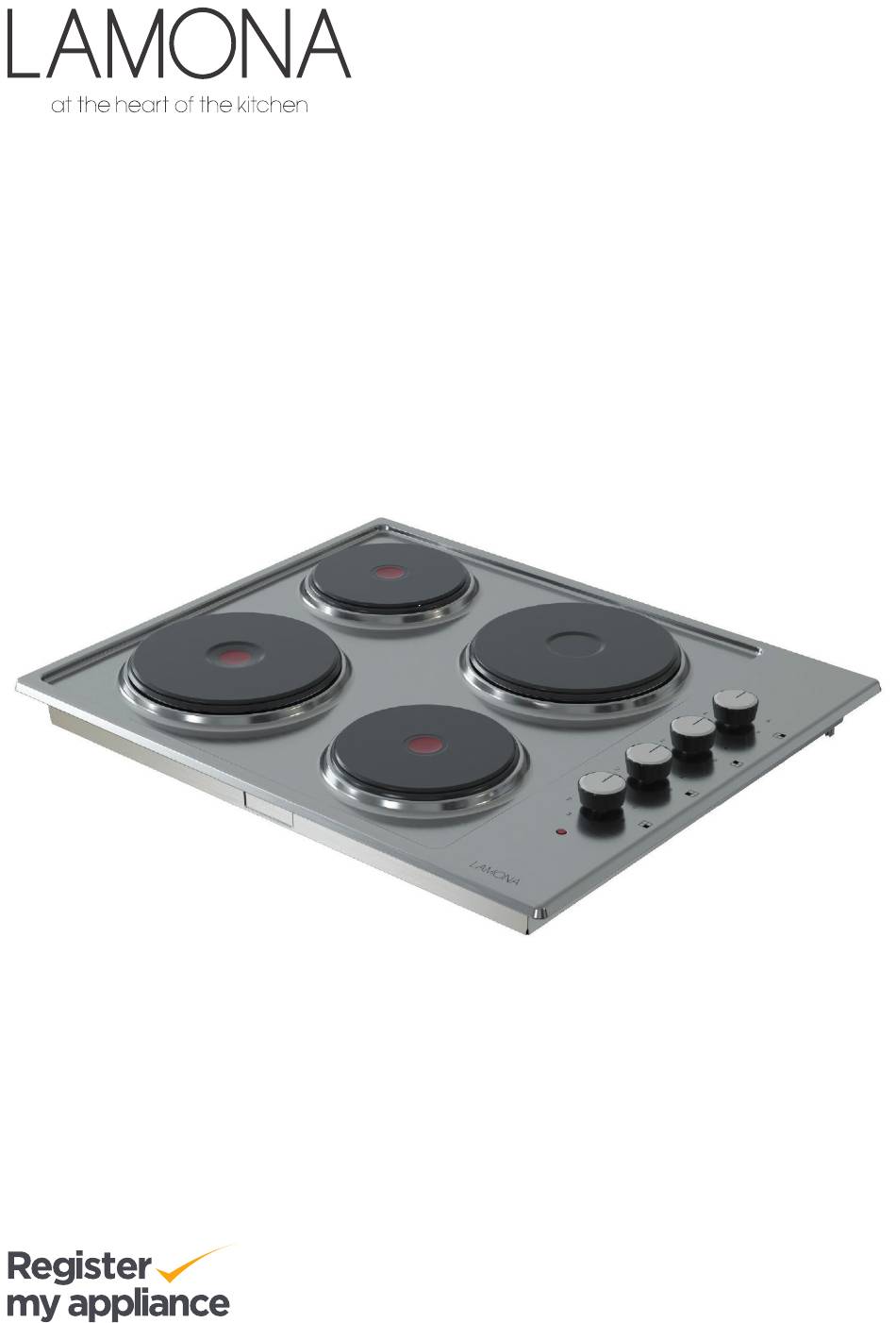

- Page 1 Electric Solid Plate Hob LAM1217 Instructions and Installation www.howdens.com/appliance-registration...
- Page 2 Extended Warranty Labels_Update_V1_AW_OL.pdf Electric Solid Plate Hob LAM1217 www.howdens.com...
- Page 3 Instructions and Installation Welcome Dear Customer, Congratulations on your choice of hob. The instruction and installation manual will help you use your product quickly and safely. • Please read this user manual before installing and using the hob. • Always follow the safety instructions. •...
-
Page 4: Table Of Contents
Electric Solid Plate Hob LAM1217 Contents 1. Before using the hob 5. Cleaning and maintenance 11 How to clean your hob 2. Safety 6. Installation General safety Electrical safety General information Product safety Positioning Intended use Protecting the hob cut-out... -
Page 5: Before Using The Hob
Instructions and Installation 1. Before using the hob • Make sure that you have removed all packaging, wrappings, stickers and films from the hob surface. • It is recommended that you clean the hob surface before using for the first time (see page 11). 2. -
Page 6: Product Safety
Electric Solid Plate Hob LAM1217 • Only connect the product to a grounded outlet/line with the voltage and protection as specified in the “Technical specifications”. Have the grounding installation made by a qualified electrician while using the product with or without a transformer. Our company shall not be liable for any problems arising due to the product not being earthed in accordance with the local regulations. -
Page 7: Intended Use
Instructions and Installation • WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the • appliance and then cover flame e.g. with a lid or a fire blanket. CAUTION: The cooking process has to be supervised. -
Page 8: Environmental Instructions
Electric Solid Plate Hob LAM1217 3. Environmental instructions Waste regulations Disposing of the old product. Compliance with the WEEE Directive and disposing of the waste product: This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). -
Page 9: Using The Hob
Instructions and Installation 4. Using the hob DO NOT use the hob it The hob surface remains hot after use. DO NOT TOUCH. the surface is cracked, as electrical parts are directly The appliance is not intended beneath. Switch off the to be operated by means of appliance at the supply to an external timer or separate... -
Page 10: Hob Layout
Electric Solid Plate Hob LAM1217 Hob layout Rear Left Zone (Rapid) Ø145mm 1500W Rear right control knob. Suitable for 6" or 15cm diameter saucepan. Rear left control knob. Rear Right Zone (Standard) Ø180mm 1500W Front left control knob. Suitable for 7" or 18cm diameter saucepan. -
Page 11: Cleaning And Maintenance
Instructions and Installation 5. Cleaning and maintenance How to clean your hob • Switch plates off and let cool. • Do not use steam cleaners If necessary, treat plates with or high pressure cleaning a cleaning agent (cleaner/ equipment. conditioner available in •... -
Page 12: Installation
Electric Solid Plate Hob LAM1217 6. Installation General information Positioning Installation must only be carried The hob is designed to be built out by a qualified installer or into a worktop as detailed in engineer. the image. Please note: Aperture width:... -
Page 13: Clearances And Dimensions
Instructions and Installation Clearances and dimensions 50mm min. 490mm 50mm min. Minimum distance between cabinets must be equal to overall width of hob. There must be a minimum Minimum height to extractor clearance of 50mm between as recommended in extractor the rear edge of the cut-out instruction manual. - Page 14 Electric Solid Plate Hob LAM1217 Method 1 Place the hob in the aperture, checking the hob is covering the The brackets screw directly worktop along all four sides. Set into the base of the hob in the the front edge of the appliance positions shown.
- Page 15 Instructions and Installation • WARNING RISK OF FIRE: The putty seal must be fitted to reduce the heat transfer between the hob surface and the worktop. Failure may result in damage to the worktop and invalidate your guarantee. • Apply a thin bead of the putty seal (provided) to the underside of the hob.
-
Page 16: Electrical Connections
Electric Solid Plate Hob LAM1217 Electrical connections • IMPORTANT: Ensure that the electricity supply is switched off before connecting. Your oven is intended for permanent installation. • Your appliance must be connected to fixed wiring via the use of a double pole switched fused spur outlet with at least 3mm contact separation. - Page 17 Instructions and Installation The appliance must be cable must not be longer connected to the mains than 2m for safety reasons). supply only by a suitably It should be routed away qualified person. from the appliance and not trapped between the The mains lead must not be appliance and the wall.
-
Page 18: Technical Specifications
Electric Solid Plate Hob LAM1217 7. Technical specifications Technical specifications Outer dimensions Width 610mm Depth 510mm Height 38mm Outer dimensions Width 560mm Depth 490mm Cook zones Rear Left Zone (Rapid) Ø145mm 1500W Rear Right Zone (Standard) Ø180mm 1500W Front Left Zone (Rapid) Ø180mm 2000W... -
Page 19: Your Guarantee
• Your full contact details. Call the Depot number on your Proof of Purchase Document supplied with the product/kitchen. Call the LAMONA Service Line on: Within the UK: 0344 460 0006 Within Republic of Ireland: 01525 5703 • Product installed within a domestic kitchen or a non-domestic kitchen where 8 or fewer people are using the appliance. - Page 20 Product serial number (Place sticker here) Howden Joinery Ltd, Thorpe Road, Howden, East Yorkshire, DN14 7PA Imported in EU by: Houdan Cuisines SAS, Z.A. du Bois Rigault Nord, 1Rue Calmette, 62880 Vendin-le-Vieil, Cedex, France. Product information correct at the time of publication in March 2022. The company has a policy of continuous product development and reserves the right to change any products and specifications given in this manual.
