Summary of Contents for Lamona LAM1111

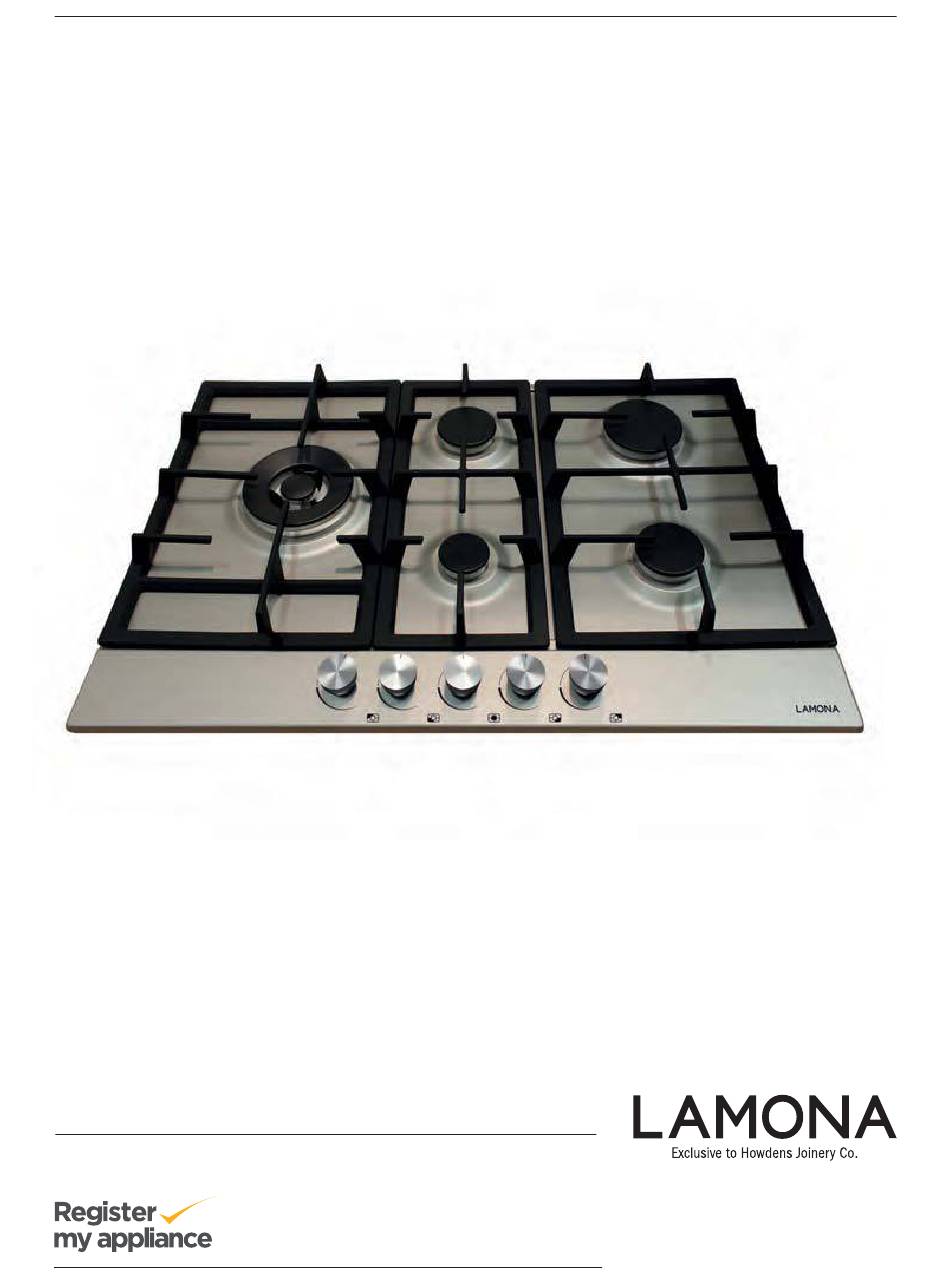

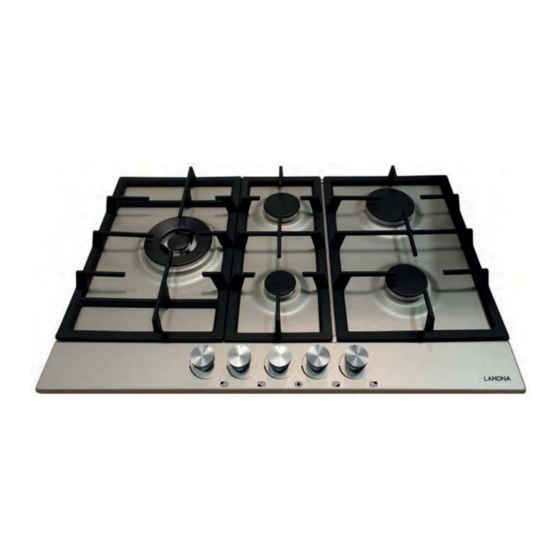

- Page 1 Professional 5 Zone Gas Hob LAM1111 User Guide www.howdens.com/appliance-registration...
- Page 2 See back page for product serial number...
- Page 3 User manual LAM1111 Dear Customer, Congratulations on your choice of hob. The user manual will help you use your product quickly and safely. Please read this user manual before installing and using the hob. Always follow the safety instructions. Keep this user manual within easy reach for future reference.
-
Page 4: Table Of Contents
LAMONA Appliances Index 01 - Before Using the hob 02 - Safety General Fire safety advice If a pan catches fi re Deep fat frying Safety working with gas What to do if you smell gas 03 - Using the hob... -
Page 5: Before Using The Hob
User manual LAM1111 01 - Before using the hob Make sure that you have removed all packaging, wrappings, stickers and fi lms from the hob surface. It is recommended that you clean and wash the hob surface before using for the fi rst time (see p12). -
Page 6: Fire Safety Advice
LAMONA Appliances Never leave pans over- Never use pans smaller hanging the edge of the hob. than 100mm (4”) and larger than 250mm (10”).Match the size of pan to the heat zone – do not use large pans on small zones or vice versa. -
Page 7: Deep Fat Frying
User manual LAM1111 attention shall be given to the If you have put the fire out, relevant requirements regard- leave the pan to cool com- ing ventilation. pletely. The use of gas cooking Deep-fat frying presents more appliance results in the... -
Page 8: What To Do If You Smell Gas
LAMONA Appliances clamps etc should be checked regularly. Request information about gas emergency telephone numbers and safety measures in case of gas smell from you local gas provider. What to do if you smell gas Do not use open flame or do not smoke. -
Page 9: Using The Hob
User manual LAM1111 03 - Using the hob Hob layout Pan support Normal burner Assembly Clamp Control Panel Base cover Auxiliary burner Main body Wok burner Normal burner 10. Rapid burner Burner Controls Position Auxiliary Normal Rapid Normal centre front... - Page 10 LAMONA Appliances Cooking with gas WARNING! Pots must not enter the control The size of the pan and the size of the gas fl ame zone. should match each other. Adjust the gas fl ames so that they do not go beyond the bottom of the pan...
-
Page 11: Burner Caps
User manual LAM1111 In case of fl ame failures of the burners for any reason, the fl ame failure sensor ‘A’ will cut off the gas fl ow after a few seconds. If this occurs, depress and turn the control knob to the ignition position clockwise direction and wait for ignition. -
Page 12: Cleaning And Maintenance
LAMONA Appliances 04 - Cleaning & maintenance How to clean your hob Switch plates off and let cool. If necessary, Do not use steam cleaners or high pressure treat plates with a cleaning agent (cleaner/ cleaning equipment. conditioner available in selected stores). -
Page 13: Positioning
User manual LAM1111 Protecting the Hob cut-out Positioning The types of chipboard used for work surfaces swell relatively quickly in contact with humidity. The hob is designed to be built into a worktop as detailed in the image above. Apply a special varnish or adhesive to the cut edges to seal and protect it from moisture ingress. -
Page 14: Clearances And Dimensions
LAMONA Appliances Clearances and Dimensions ** Minimum distance between cabinets must be equal to overall width of all hobs * Minimum height to extractor as recommended in extractor instruction manual No shelf or overhang of combustible material should be closer than 650mm directly above the hob. -
Page 15: Installation Above An Oven
User manual LAM1111 Secure the hob to the worktop by means of the brackets provided, taking the thickness of the worktop into account. Your appliance will be supplied and installed using the following installation method. The two brackets are secured directly into the base of the hob in appropriate positions as shown. -
Page 16: Installation Above Kitchen Unit With Door And Drawer
LAMONA Appliances Installation above a kitchen unit with door & drawer Worktop 15mm The panel installed below the hob must be easy to remove and let an easy access in case a technical assistance intervention is necessary. oven or partition... -
Page 17: Gas Connection
User manual LAM1111 Adapting the hob to different types of gas To adapt the Hob for use with different types of gas, carry out the following instructions: Remove the grids and burners Insert on hexagonal spanner (7mm) into the burner support... -
Page 18: Regulating The Minimum Fl Ame
LAMONA Appliances Regulating the minimum fl ame After lighting the burners, turn the control knob to the minimum setting then remove the knob (this can easily be removed by applying gentle pressure). Using a small «terminal» type screwdriver the regulating screw can be adjusted as in image below. -
Page 19: Electrical Connections
User manual LAM1111 Electrical Connections IMPORTANT: Ensure that the electricity supply is switched off before connecting. Your hob is intended for permanent installation. Your appliance must be connected to fi xed wiring via the use of a double pole switched fused spur outlet with at least 3mm contact separation. -
Page 20: Technical Specifi Cations
LAMONA Appliances Technical Specifi cations General Gas Power / Category 10.7 kW / II 2H3+ G 20/20 mbar (natural gas) 1023 lt/h G 30/28-30 mbar (LPG) 778 g/h Installation Class Voltage/ Frequency V / Hz 220-240 V / 50Hz Electrical Input Power... -
Page 21: Troubleshooting
User manual LAM1111 Troubleshooting Problem Possible Cause Remedy There is no spark when lighting There is no electrical supply Make sure that the unit is the gas connected and the eletrical supply is switched on. Control the fuse. If the fuse... -
Page 22: Your Guarantee
Call the Depot number on your Proof of Purchase Document supplied with the product / kitchen. Call the LAMONA Service Line on 0845 00 60 006 * Product installed within a domestic kitchen or non-domestic kitchen where 8 or fewer people are using the appliance. - Page 24 Product serial number (Place sticker here) Issue v2 250117 185.9272.68/R.AA/25.01.2017...
