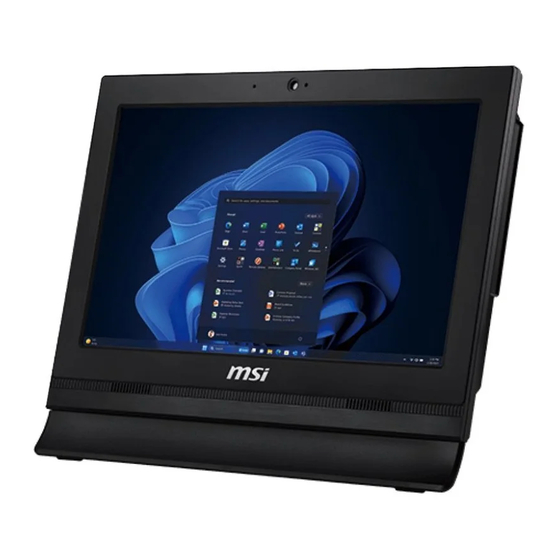

- Page 1 PRO Series All-in-One PC PRO AP162T ADL (MS-A602) User Guide...
-
Page 2: Table Of Contents
Contents Getting Started ......................3 Package Contents ....................3 Safety & Comfort Tips .................... 3 System Overview..................... 4 Connecting the Power ..................10 Adjusting the Monitor ................... 11 Component Replacement & Upgrade ..............12 Windows 11 System Operations ................13 Power Management ..................... -
Page 3: Getting Started
This chapter provides you with the information on hardware setup procedures. While connecting devices, be careful in holding the devices and use a grounded wrist strap to avoid static electricity. Package Contents All-in-One PC PRO AP162T ADL User Guide (Optional) Quick Start Guide Documentation Warranty Card (Optional) -
Page 4: System Overview
System Overview Front View Digital Microphone The built-in microphone can be used for video chatting online. Webcam The built-in webcam with the microphone can be used for picture taking, video recoding, online conferencing and any other interactive applications. LED Indicator The LED indicator indicates when it is recording. - Page 5 Rear View Ventilator The ventilator on the enclosure is used for air convection and to prevent the equipment from overheating. Do not cover the ventilator. Kensington Lock Port This PC provides a Kensington lock port, which allows users to secure the PC in place with a key or some mechanical PIN device and attached through a rubberised metal cable.
- Page 6 Side View Power Button Press the power button to turn the system on and off. Power LED The power LED glows when the system is turned on and goes off when the system is shut down. In terms of power saving, the LED blinks in S3 (Suspend to RAM) mode and goes off in S4 (Suspend to Disk) mode.
- Page 7 Power Jack Power supplied through this jack supplies power to your system. ⚠ Important We suggest that you connect the AC/DC adapter to your PC first and then connect the AC power cord to the socket-outlet for safety concerns. 2.5” Storage Rapid Upgrade Holder (Optional) This holder allows users to upgrade their 2.5”...
- Page 8 Top & Bottom View Ventilator The ventilator on the enclosure is used for air convection and to prevent the equipment from overheating. Do not cover the ventilator. Combo Audio Jack This connector is provided for headphones, speakers, or microphones. USB 2.0 Port This connector is provided for USB peripheral devices.
- Page 9 VGA Port The VGA port supports monitors and other VGA interface devices. Serial Port The serial port supports barcode scanners, barcode printers, bill printers, credit card machine, etc. Parallel Port The parallel port supports printers and other parallel interface devices.
-
Page 10: Connecting The Power
Connecting the Power Connect the adapter to the AIO PC and plug in the power cord. Press the power button to power on the AIO PC. ∙ External Power Supply 65W • Input: 100-240V~, 50-60Hz • Output: 19.0V 3.42A ⚠ Important The illustrations are for reference only. -
Page 11: Adjusting The Monitor
Adjusting the Monitor This AIO PC is designed to maximize your viewing comfort with its adjustment capabilities. ⚠ Important ∙ Do not use any sharp objects on the display panel. ∙ Avoid pressing the display panel when adjusting. -
Page 12: Component Replacement & Upgrade
Component Replacement & Upgrade Please note that certain components preinstalled in the product may be upgradable or replaceable by user’s request depending on the models users purchased. For any further information on the product users purchased, please contact the local dealer. -
Page 13: Windows 11 System Operations
Windows 11 System Operations ⚠ Important All information and Windows screenshots are subject to change without prior notice. Power Management Power management of personal computers (PCs) and monitors has the potential to save significant amounts of electricity as well as deliver environmental benefits. To be energy efficient, turn off your display or set your PC to sleep mode after a period of user inactivity. - Page 14 ∙ Tune the settings in Power Options under Windows OS to optimize your PC’s power management. ∙ Install power saving software to manage your PC’s energy consumption. ∙ Always disconnect the AC power cord or switch the wall socket off if your PC would be left unused for a certain time to achieve zero energy consumption.
-
Page 17: Network Connections
Network Connections Wi-Fi 1. Right-click [Start] and select [Network Connections] from the list. 2. Select and turn on [Wi-Fi]. 3. Select [Show available networks]. A list of available wireless networks pops up. Choose a connection from the list. 4. To establish a new connection, select [Manage known networks]. 5. - Page 20 Ethernet 1. Right-click [Start] and select [Network Connections] from the list. 2. Select [Ethernet]. 3. The [IP assignment] and [DNS server assignment] are automatically set as [Automatic (DHCP)]. 4. For a Static IP connection, click [Edit] of [IP assignment]. 5. Select [Manual]. 6.
- Page 23 Dial-up 1. Right-click [Start] and select [Network Connections] from the list. 2. Select [Dial-up]. 3. Select [Set up a new connection]. 4. Choose [Connect to the Internet] and click [Next]. 5. Select [Broadband (PPPoE)] to connect using DSL or cable that requires a user name and password.
-
Page 25: System Recovery
System Recovery The purposes for using the System Recovery Function may include: ∙ Restore the system back to the initial status of original manufacturer’s default settings. ∙ When some errors have occurred to the operating system in use. ∙ When the operating system is affected by virus and is not able to work normally. ∙... -
Page 27: F3 Hotkey Recovery (Optional)
Recovering the system with the F3 Hotkey Follow the instructions below to continue: 1. Restart the PC. 2. Press the F3 hotkey on the keyboard promptly when the MSI greeting appears on the display. 3. On the [Choose an option] screen, select [Troubleshoot]. -
Page 28: Troubleshooting
Troubleshooting My system does not start. • Check if the system is connected to an electrical outlet and it is turned on. • Check if the power cord and all cables are connected firmly. When I turn on my computer, the message “Operating System not found”... - Page 29 System monitor does not display anything. • Check if the system is connected to an electrical outlet and it is turned on. • The system may be in Standby mode. Press any key to activate the Display.
-
Page 30: Safety Instructions
∙ Place the power cord in a way that people are unlikely to step on it. Do not place anything on the power cord. ∙ If this device comes with an adapter, use only the MSI provided AC adapter approved for use with this device. - Page 31 BSMI: 廢電池請回收 For better environmental protection, waste batteries should be collected separately for recycling or special disposal. California, USA: The button cell battery may contain perchlorate material and requires special handling when recycled or disposed of in California. For further information please visit: https://dtsc.ca.gov/perchlorate/ Environment ∙...
-
Page 32: Energy Star Certification
ENERGY STAR Certification ENERGY STAR is a program run by the U.S. Environmental Protection Agency (EPA) and U.S. Department of Energy (DOE) to promote energy efficiency. This product qualifies for ENERGY STAR in the “factory default” settings through which power savings will be achieved. -
Page 33: Regulatory Notices
∙ ErP Directive 2009/125/EC Compliance with these directives is assessed using applicable European Harmonized Standards. The point of contact for regulatory matters is MSI-Europe: Eindhoven 5706 5692 ER Son. Products with Radio Functionality (EMF) This product incorporates a radio transmitting and receiving device. For computers in normal use, a separation distance of 20 cm ensures that radio frequency exposure levels comply with EU requirements. - Page 34 ∙ this device may not cause harmful interference, and ∙ this device must accept any interference received, including interference that may cause undesired operation. MSI Computer Corp. 901 Canada Court, City of Industry, CA 91748, USA (626) 913-0828 www.msi.com WEEE Statement Under the European Union (“EU”) Directive on Waste Electrical and...
- Page 35 Vietnam RoHS As from December 1, 2012, all products manufactured by MSI comply with Circular 30/2011/TT-BCT temporarily regulating the permitted limits for a number of hazardous substances in electronic and electric products.
- Page 36 ∙ Users should contact the local authorized point of collection for recycling and disposing of their end-of-life products. ∙ Visit the MSI website and locate a nearby distributor for further recycling information. ∙ Users may also reach us at gpcontdev@msi.com for information regarding proper disposal, take-back, recycling, and disassembly of MSI products.
- Page 37 Copyright and Trademarks Notice Copyright © Micro-Star Int’l Co., Ltd. All rights reserved. The MSI logo used is a registered trademark of Micro-Star Int’l Co., Ltd. All other marks and names mentioned may be trademarks of their respective owners. No warranty as to accuracy or completeness is expressed or implied.
