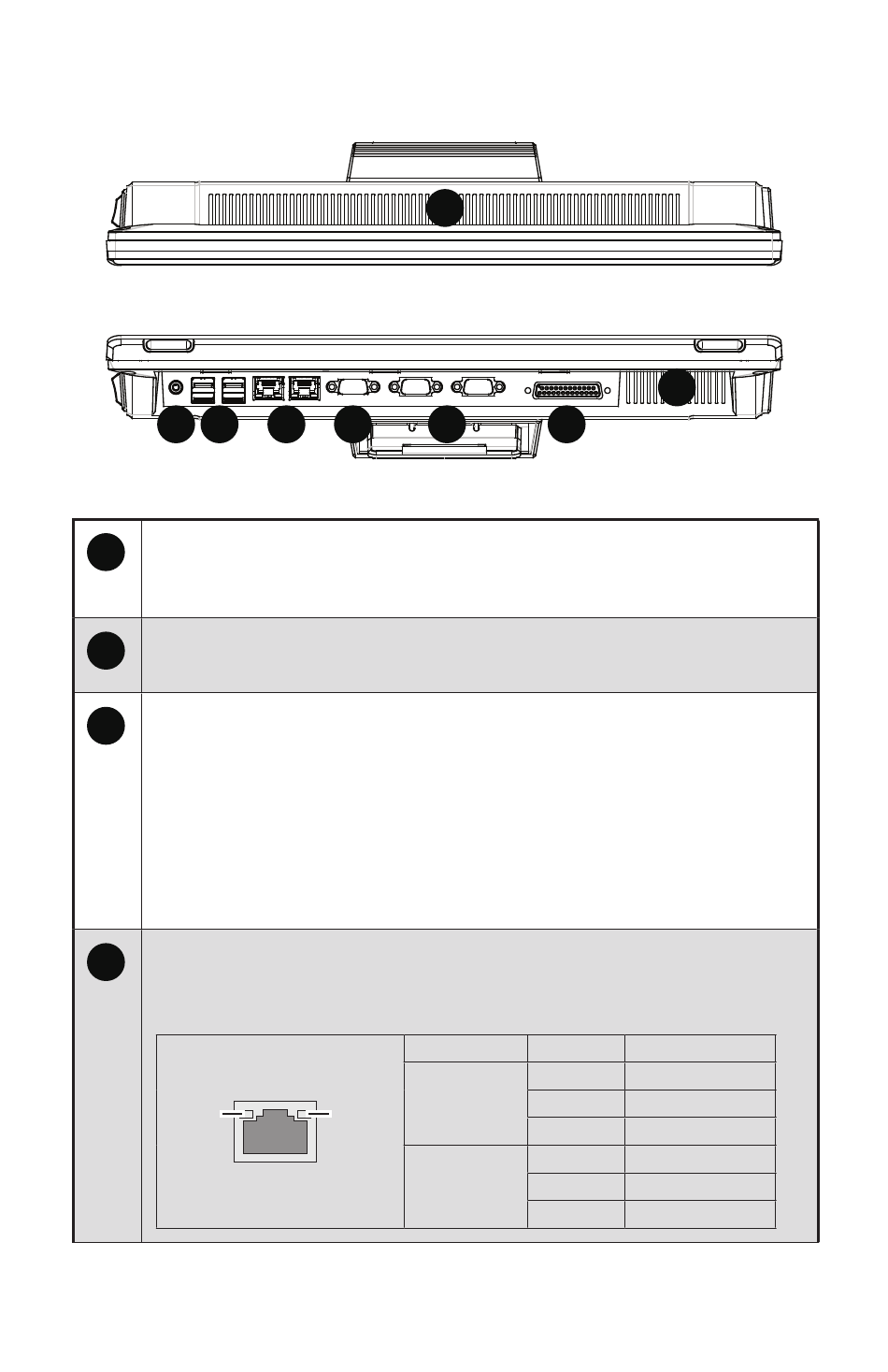

Top & Bottom View
2
3
Ventilator
1
The ventilator on the enclosure is used for air convection and to prevent
the equipment from overheating. Do not cover the ventilator.
Combo Audio Jack
2
This connector is provided for headphones, speakers, or microphones.
USB 2.0 Port
3
This connector is provided for USB peripheral devices. (Speed up to 480
Mbps)
⚠
Important
High-speed devices are recommended for USB 3.2 ports whereas low-
speed devices, such as mouse or keyboard, are suggested to be plugged
into the USB 2.0 ports.
1 Gbps LAN Jack
4
The standard RJ-45 LAN jack is provided for connection to the Local Area
Network (LAN). You can connect a network cable to it.
SPEED
LED
1
4
5
6
LED
Link/
LINK/ACT
Activity LED
LED
Speed LED
8
1
7
Status
Description
Off
No link
Yellow
Linked
Blinking
Data activity
Off
10 Mbps
Green
100 Mbps
Orange
1 Gbps
