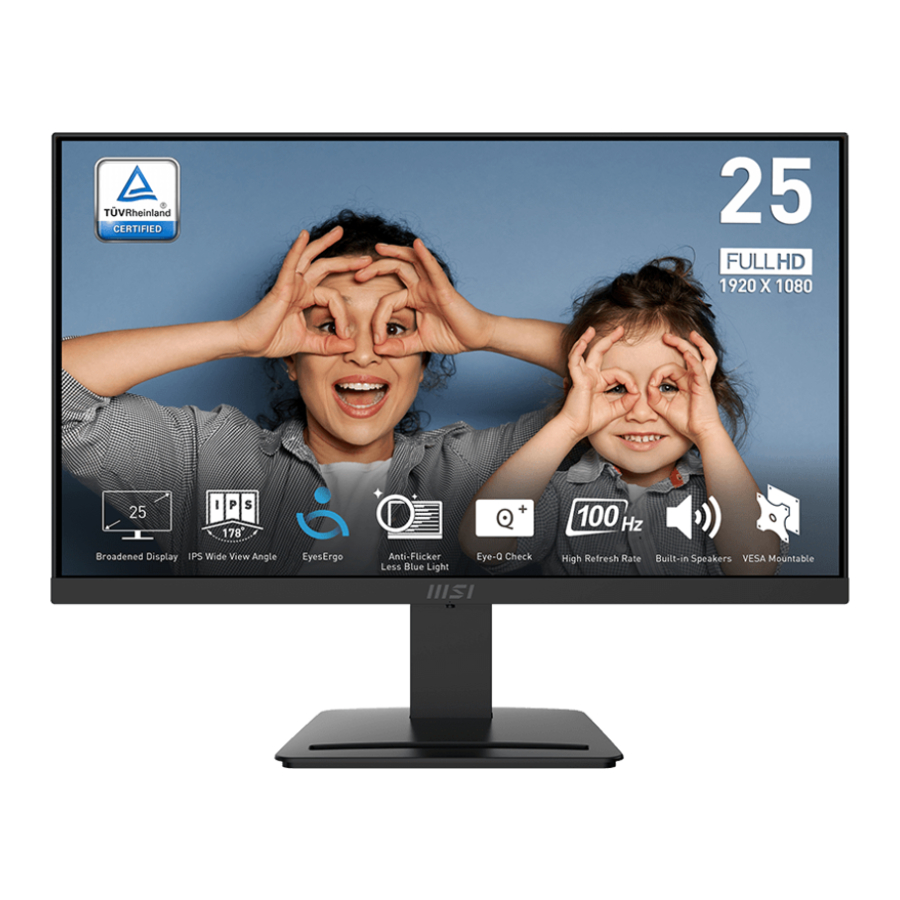

MSI PRO Series, PRO MP253, PRO MP253W - LCD Monitor Manual

Getting Started

This chapter provides you with the information on hardware setup procedures. While connecting devices, be careful in holding the devices and use a grounded wrist strap to avoid static electricity.

Package Contents

• Contact your place of purchase or local distributor if any of the items is damaged or missing.
• Package contents may vary by country and model.
• The included power cord is exclusively for this monitor and should not be used with other products.

Installing the Unit Stand

1. Leave the monitor in its protective packaging. Align and gently push the stand bracket towards the monitor groove until it locks in place.
2. Align and gently push the cable organizer towards the stand until it locks in place.
3. Align and gently push the base towards the stand until it locks in place.
4. Make sure the stand assembly is properly installed before setting the monitor upright.

• Place the monitor on a soft, protected surface to avoid scratching the display panel.
• Do not use any sharp objects on the panel.
• This product comes with NO protective film to be removed by the user! Any mechanical damages to the product including removal of the polarizing film may affect the warranty!


Adjusting the Unit

This monitor is designed to maximize your viewing comfort with its adjustment capabilities.

Avoid touching the display panel when adjusting the monitor.

Product Overview

	Power Button & Navi Key
	Kensington Lock
	Cable Organizer
	DisplayPort Supports 1920x1080@100Hz as specified in DisplayPort 1.2a.
	HDMI Connector Supports 1920x1080@100Hz as specified in HDMI 1.4b.
	D-Sub Port
	Line-In Jack For audio playback through the speakers, connect the device's Line-out jack to this Line-in jack when using the D-Sub port.
	Power Jack

Connecting the Unit to PC

1. Turn off your computer.
2. Connect the video cable from the monitor to your computer.
3. Assemble the external power supply & power cord. (Figure A)
4. Connect the external power supply to the monitor power jack. (Figure B)
5. Plug the power cord into the electrical outlet. (Figure C)
6. Turn on the monitor. (Figure D)
7. Power on the computer and the monitor will auto detect the signal source.

OSD Setup

This chapter provides you with essential information on OSD Setup.

All information is subject to change without prior notice.

Navi Key

The monitor comes with a Navi Key, a multi-directional control that helps navigate the On-Screen Display (OSD) menu.

Up/ Down/ Left/ Right:

• selecting function menus and items
• adjusting function values
• entering into/exiting from function menus

Middle:

• launching the On-Screen Display (OSD)
• entering submenus
• confirming a selection or setting

Hot Key

• Users may enter into preset function menus by moving the Navi Key up, down, left or right when the OSD menu is inactive.
• Users may customize their own Hot Keys to enter into different function menus.

OSD Menus

Professional

1st Level Menu	2nd/3rd Level Menu		Description
Mode	Eco		Use Up or Down Button to select and preview mode effects. Press the Middle Button to confirm and apply your mode type. The default setting "Eco" mode meets the requirements of TÜV Rheinland's "Low Blue Light" standard and Eyesafe certification.
	User
	sRGB
	Anti-Blue
	Movie
	Office
	Black-White
Response Time	Normal		Setting to Fastest will reach the shortest response time and help improve blurred images when playing very fast games.
	Fast
	Fastest
MPRT	OFF		MPRT is available when the refresh rate is over 85 Hz. Activating MPRT will affect: Affected Function Function Status Brightness Unable to select HDCR Adaptive-Sync Set to OFF
	ON
Refresh Rate	Location	Left Top	Location is adjustable in OSD Menu. Press the Middle Button to confirm and apply your Refresh Rate Location. This monitor follows and works at the Operating System's preset Screen Refresh Rate.
		Right Top
		Left Bottom
		Right Bottom
	OFF
	ON
Alarm Clock	Location	Left Top	After setting the time, press the Middle Button to activate the timer. Users have to manually restore their preset Alarm Clock after any AC power loss and reconnection.
		Right Top
		Left Bottom
		Right Bottom
	OFF
	15:00	00:01 ~ 99:59
	30:00
	45:00
	60:00
Eye-Q Check	OFF		Select OFF to disable Eye-Q Check. Activating Eye-Q Check will affect: Affected Function Function Status Refresh Rate Alarm Clock Screen Assistance Info. On Screen Set to OFF
	Amsler Grid		Select Amsler Grid to check your central vision field.
	Astigmatism		Select Astigmatism to check your blurred vision.
	Posture Correction		Select Posture Correction to improve your posture when sitting.
Screen Assistance	None		Users can adjust Screen Assistance in any mode.
1st Level Menu	2nd/3rd Level Menu		Description
Screen Size	Auto		Users can adjust Screen Size in any mode, any resolution and any screen refresh rate.
	4:3
	16:9
Adaptive-Sync	OFF		Adaptive-Sync prevents screen tearing. Activating Adaptive-Sync will affect: Affected Function Function Status MPRT Set to OFF
	ON


Input Source

Navi Key

Settings

Specifications

Monitor		PRO MP253 PRO MP253W
Size		24.5 inch
Curvature		Flat
Panel Type		IPS
Resolution		1920x1080 (FHD)
Aspect Ratio		16:9
Brightness		300 nits (typ.)
Contrast Ratio		1000:1
Refresh Rate		100Hz
Response Time		1ms (MPRT) 4ms (GTG)
I/O		DisplayPort x1 HDMI Connector x1 D-Sub Port x1 Line-in Jack x1
View Angles		178°(H), 178°(V)
DCI-P3*/ sRGB		85% / 109%
Surface Treatment		Anti-glare
Display Colors		16.7M
Speaker		3W x 2
Monitor Power Options		12V 2.5A
External Power Supply**		30W, 12V
Power Input		100-240Vac, 50/60Hz, 1A
Power Output		12V 2.5A
Adjustment (Tilt)		-5° ~ 20°
Kensington Lock		Yes
VESA Mounting		Plate Type: 75 x 75 mm Screw Type: M4 x 10 mm Thread Diameter: 4 mm Thread Pitch: 0.7 mm Thread Length: 10 mm
Dimension (W x H x D)		560 x 438.4 x 182 mm
Weight	Net	3.03 kg
	Gross	5.05 kg
Environment	Operating	Temperature: 0℃ to 40℃ Humidity: 20% to 90%, non-condensing Altitude: 0 ~ 5000m
	Storage	Temperature: -20℃ to 60℃ Humidity: 10% to 90%, non-condensing

* Based on CIE1976 test standards.
** External Power Supply may vary by country.

Preset Display Modes

All information is subject to change without prior notice.

Troubleshooting

The power LED is off

• Press the monitor power button again.
• Check if the monitor power cable is properly connected.

No image

• Check if the computer graphics card is properly installed.
• Check if the computer and monitor are connected to electrical outlets and are turned on.
• Check if the monitor signal cable is properly connected.
• The computer may be in Standby mode. Press any key to activate the monitor.

The screen image is not properly sized or centered

• Refer to Preset Display Modes to set the computer to a setting suitable for the monitor to display.

No Plug & Play

• Check if the monitor power cable is properly connected.
• Check if the monitor signal cable is properly connected.
• Check if the computer and graphics card are Plug & Play compatible.

The icons, font or screen are fuzzy, blurry or have color problems.

• Avoid using any video extension cables.
• Adjust brightness and contrast.
• Adjust RGB color or tune color temperature.
• Check if the monitor signal cable is properly connected.
• Check for bent pins on the signal cable connector.

The unit starts flickering or shows waves

• Change the refresh rate to match the capabilities of your monitor.
• Update your graphics card drivers.
• Keep the monitor away from electrical devices that may cause electromagnetic interference (EMI).

Safety Instructions

• Read the safety instructions carefully and thoroughly.
• All cautions and warnings on the device or User Guide should be noted.
• Refer servicing to qualified personnel only.

Power

• Make sure that the power voltage is within its safety range and has been adjusted properly to the value of 100~240V before connecting the device to the power outlet.
• If the power cord comes with a 3-pin plug, do not disable the protective earth pin from the plug. The device must be connected to an earthed mains socket-outlet.
• Please confirm the power distribution system in the installation site shall provide the circuit breaker rated 120/240V, 20A (maximum).
• Always disconnect the power cord or switch the wall socket off if the device would be left unused for a certain time to achieve zero energy consumption.
• Place the power cord in a way that people are unlikely to step on it. Do not place anything on the power cord.
• If this device comes with an adapter, use only the MSI provided AC adapter approved for use with this device.

Environment

• To reduce the possibility of heat-related injuries or of overheating the device, do not place the device on a soft, unsteady surface or obstruct its air ventilators.
• Use this device only on a hard, flat and steady surface.
• To prevent the device from tipping over, secure the device to a desk, wall or fixed object with an anti-tip fastener that helps to properly support the device and keep it safe in place.
•
  To prevent fire or shock hazard, keep this device away from humidity and high temperature.
• Do not leave the device in an unconditioned environment with a storage temperature above 60℃ or below -20℃, which may damage the device.
• The maximum operating temperature is around 40℃.
• When cleaning the device, be sure to remove the power plug. Use a piece of soft cloth rather than industrial chemical to clean the device. Never pour any liquid into the opening; that could damage the device or cause electric shock.
• Always keep strong magnetic or electrical objects away from the device.
• If any of the following situations arises, get the device checked by service personnel:
  • The power cord or plug is damaged.
  • Liquid has penetrated into the device.
  • The device has been exposed to moisture.
  • The device does not work well or you can not get it working according to the User Guide.
  • The device has dropped and damaged.
  • The device has obvious sign of breakage.

Technical Support

If a problem arises with your product and no solution can be obtained from the user's manual, please contact your place of purchase or local distributor. Alternatively, please visit https://www.msi.com/support/ for further guidance.
