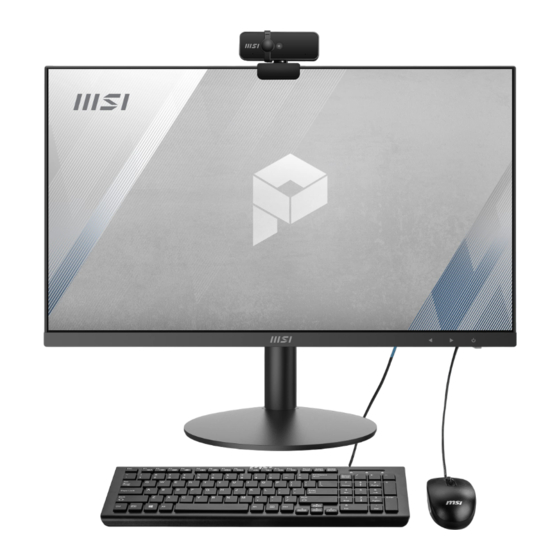

  • Page 1 PRO Series All-in-one PC PRO AP241 (MS-AE03) User Guide...
  • Page 2: Table Of Contents

    Contents Getting Started ......................3 Package Contents ....................3 Safety & Comfort Tips .................... 3 System Overview..................... 4 Hardware Setup ...................... 7 Component Replacement & Upgrade ..............10 System Operations ..................... 11 Power Management ..................... 11 Network Connection (Windows 10) ..............13 System Recovery (Windows 10) ................
  • Page 3: Getting Started

    Getting Started This chapter provides you with the information on hardware setup procedures. While connecting devices, be careful in holding the devices and use a grounded wrist strap to avoid static electricity. Package Contents All-in-one PC MS-AE03 User Guide (Optional) Documentation Quick Guide (Optional) Warranty Card &...
  • Page 4: System Overview

    System Overview 12 13 Getting Started...
  • Page 5 USB 2.0 Port This connector is provided for USB peripheral devices. (Speed up to 480 Mbps) ⚠ Important High-speed devices are recommended for USB 3.2 ports whereas low- speed devices, such as mouse or keyboard, are suggested to be plugged into the USB 2.0 ports.
  • Page 6 LAN Jack The standard RJ-45 LAN jack is provided for connection to the Local Area Network (LAN). You can connect a network cable to it. Status Description No link Link/ Activity Yellow Linked SPEED LINK/ACT Blinking Data activity 10 Mbps Speed LED Green 100 Mbps...
  • Page 7: Hardware Setup

    Hardware Setup Installing the Monitor Stand 1. Take out the stand assembly and base from the package. 2. Rotate the stand assembly counter-clockwise and push the it downwards to the base. 3. Rotate closewise until it locks in place. You can hear an audible “Click” when the latch is engaged.
  • Page 8 Connecting the Power Connect the adapter to the AIO PC and plug in the power cord. • 90W: 100-240V, 19V 4.74A (optional) • 120W: 100-240V, 19.5V 6.15A Press the power button to power on the AIO PC. Getting Started...
  • Page 9 Adjusting the Monitor This AIO PC is designed to maximize your viewing comfort with its adjustment capabilities. ⚠ Important The illustrations are for reference only. Your AIO PC may vary in appearance. ∙ Please make sure the AIO PC has been grounded to earth through the AC power ∙...
  • Page 10: Component Replacement & Upgrade

    Component Replacement & Upgrade Please note that certain components preinstalled in the product may be upgradable or replaceable by user’s request depending on the models users purchased. For any further information on the product users purchased, please contact the local dealer.
  • Page 11: System Operations

    System Operations This chapter provides you with essential information on system operations. ⚠ Important All information is subject to change without prior notice. Power Management Power management of personal computers (PCs) and monitors has the potential to save significant amounts of electricity as well as deliver environmental benefits. To be energy efficient, turn off your display or set your PC to sleep mode after a period of user inactivity.
  • Page 12 Waking the System Up The computer shall be able to wake up from power saving mode in response to a command from any of the following: ∙ the power button, ∙ the network (Wake On LAN), ∙ the mouse, ∙ the keyboard. Energy Saving Tips: ∙...
  • Page 13: Network Connection (Windows 10)

    Network Connection (Windows 10) Wired Network 1. Right-click [Start] and select [Network Connections] from the list. 2. Select [Ethernet] and then [Network and Sharing Center]. 3. Select [Set up a new connection or network]. 4. Choose [Connect to the Internet] and click [Next]. System Operations...
  • Page 14 5. Select [Broadband (PPPoE)] to connect using DSL or cable that requires a user name and password. 6. Type the information from your Internet Service Provider (ISP) and click [Connect] to establish your LAN connection. System Operations...
  • Page 15 Wireless Network 1. Go to [Start] , click [Settings] and select [Network and Internet]. 2. A list of available WLAN connections pops up. Choose a connection from the list. 3. To establish a new connection, select [Network and Sharing Center]. 4.
  • Page 16: System Recovery (Windows 10)

    System Recovery (Windows 10) The purposes for using the System Recovery Function may include: ∙ Restore the system back to the initial status of original manufacturer’s default settings. ∙ When some errors have occurred to the operating system in use. ∙...
  • Page 17 Reset this PC 1. Go to [Start] , click [Settings] and select [Update and security]. 2. Select [Recovery] and click [Get started] under [Reset this PC] to start the system recovery. 3. The [Choose an option] screen pops up. Choose between [Keep my files] and [Remove everything].
  • Page 18 Keep my files 1. Select [Keep my files]. 2. The [Your apps will be removed] screen shows a list of apps that will need to be reinstalled from the web or installation discs. Click [Next] to continue. 3. The next screen will show the changes to be made during the process. Click [Reset] to start the system reset.
  • Page 19 Remove everything 1. Select [Remove everything]. 2. If you have multiple hard drives, a screen will pop up, asking you to choose between [Only the drive where Windows is installed] and [All drives]. 3. Then select between [Just remove my files] and [Remove files and clean the drive]. 4.
  • Page 20: System Recovery (F3 Hotkey Recovery) (Optional)

    Recovering the system with the F3 Hotkey Follow the instructions below to continue: 1. Restart the PC. 2. Press the F3 hotkey on the keyboard promptly when the MSI greeting appears on the display. 3. On the [Choose an Option] screen, select [Troubleshoot].
  • Page 21: Troubleshooting

    Troubleshooting My system does not start. • Check if the system is connected to an electrical outlet and it is turned on. • Check if the power cord and all cables are connected firmly. When I turn on my computer, the message “Operating System not found”...
  • Page 22 System monitor does not display anything. • Check if the system is connected to an electrical outlet and it is turned on. • The system may be in Standby mode. Press any key to activate the Display. Troubleshooting...
  • Page 23: Safety Instructions

    ∙ Place the power cord in a way that people are unlikely to step on it. Do not place anything on the power cord. ∙ If this device comes with an adapter, use only the MSI provided AC adapter approved for use with this device.
  • Page 24 California, USA: The button cell battery may contain perchlorate material and requires special handling when recycled or disposed of in California. For further information please visit: https://dtsc.ca.gov/perchlorate/ Environment ∙ To reduce the possibility of heat-related injuries or of overheating the device, do not place the device on a soft, unsteady surface or obstruct its air ventilators.
  • Page 25: Regulatory Notices

    ∙ ErP Directive 2009/125/EC Compliance with these directives is assessed using applicable European Harmonized Standards. The point of contact for regulatory matters is MSI, MSI-NL Eindhoven 5706 5692 ER Son. Products with Radio Functionality (EMF) This product incorporates a radio transmitting and receiving device. For computers in normal use, a separation distance of 20 cm ensures that radio frequency exposure levels comply with EU requirements.
  • Page 26 ∙ this device may not cause harmful interference, and ∙ this device must accept any interference received, including interference that may cause undesired operation. MSI Computer Corp. 901 Canada Court, City of Industry, CA 91748, USA (626) 913-0828 www.msi.com WEEE Statement Under the European Union (“EU”) Directive on Waste Electrical and...
  • Page 27 Vietnam RoHS As from December 1, 2012, all products manufactured by MSI comply with Circular 30/2011/TT-BCT temporarily regulating the permitted limits for a number of hazardous substances in electronic and electric products.
  • Page 28 Copyright and Trademarks Notice Copyright © Micro-Star Int’l Co., Ltd. All rights reserved. The MSI logo used is a registered trademark of Micro-Star Int’l Co., Ltd. All other marks and names mentioned may be trademarks of their respective owners. No warranty as to accuracy or completeness is expressed or implied.
  • Page 29 If a problem arises with your system and no solution can be obtained from the user’s manual, please contact your place of purchase or local distributor. Alternatively, please try the following help resources for further guidance. Visit the MSI website for technical guide, BIOS updates, driver updates and other information via https://www.msi.com/support/...
