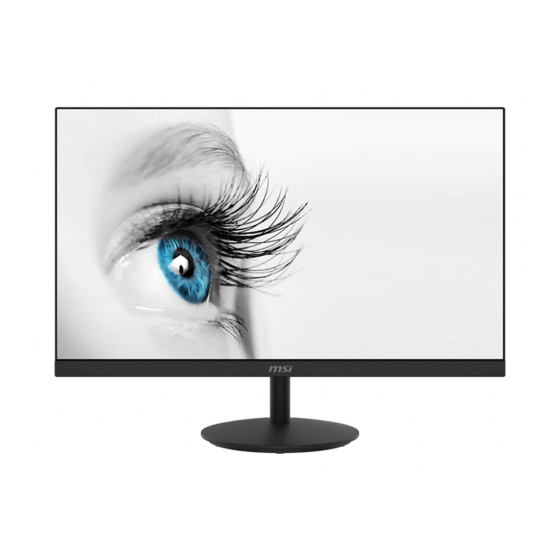

- Page 1 PRO Series LCD Monitor PRO MP241X (3BA9) User Guide...
-
Page 2: Table Of Contents
Contents Getting Started ......................3 Package Contents ....................3 Installing the Monitor Stand ................... 4 Adjusting the Monitor ..................... 5 Monitor Overview ....................6 Connecting the Monitor to PC ................7 OSD Setup ........................8 OSD Keys ........................ 8 OSD Setup Menus ....................10 Specifications ...................... -
Page 3: Getting Started
Getting Started This chapter provides you with the information on hardware setup procedures. While connecting devices, be careful in holding the devices and use a grounded wrist strap to avoid static electricity. Package Contents Monitor PRO MP241X Quick Start Guide Documentation Registration Card Stand... -
Page 4: Installing The Monitor Stand
Installing the Monitor Stand 1. Leave the monitor in its protective foam packaging. Align and gently push the stand bracket towards the monitor groove until it locks in place. 2. Align and gently push the base towards the stand until it locks in place. 3. -
Page 5: Adjusting The Monitor
Adjusting the Monitor This monitor is designed to maximize your viewing comfort with its adjustment capabilities. ⚠ Important Avoid touching the display panel when adjusting the monitor. -5° +15° Getting Started... -
Page 6: Monitor Overview
Monitor Overview OSD Keys Power Button Kensington Lock HDMI Port D-Sub Port Power Jack Getting Started... -
Page 7: Connecting The Monitor To Pc
Connecting the Monitor to PC 1. Turn off your computer. 2. Connect the video cable from the monitor to your computer. 3. Assemble the monitor power adapter & power cord. (Figure A) 4. Connect the power adapter to the monitor power jack. (Figure B) 5. -
Page 8: Osd Setup
OSD Setup ⚠ This chapter provides you with essential information on OSD Setup. Important All information is subject to change without prior notice. OSD Keys The monitor comes with a set of OSD Keys that help to control the On-Screen Display (OSD) menu. - Page 9 OSD Keys Hot Key (When OSD is OFF) OSD Setup (When OSD is ON) ∙ Activating the OSD Main Menu ∙ Returning to the previous menu ∙ Exiting from the OSD Main Menu ∙ Used as the Up/Right button to select function menus and items ∙...
-
Page 10: Osd Setup Menus
OSD Setup Menus Press the M key to launch the On-Screen Display (OSD) main menu and use the OSD keys to tune the desired function to suit your personal preferences. 1st Level Menu 2nd/3rd Level Menu Description Brightness 0-100 Adjusting display brightness Contrast 0-100 Adjusting display contrast... - Page 11 1st Level Menu 2nd/3rd Level Menu Description Aspect Auto Auto adjusting the picture aspect ratio 16:9 Picture in 16:9 mode Picture in 4:3 mode Return Returning to the previous menu Exit Exiting from this function menu Input HDMI Digital HDMI signal input D-Sub Analog D-Sub signal input Return...
- Page 12 1st Level Menu 2nd/3rd Level Menu Description Other Reset Resetting to the factory default settings Exiting from the Reset function Return Returning to the previous menu Exit Exiting from this function menu Deactivating the response time overdrive function Normal Setting the monitor’s response time to normal speed Extreme Setting the monitor’s response time to...
-
Page 13: Specifications
Specifications Monitor PRO MP241X Size 23.8 inch Curvature Flat Panel Type Resolution 1920 x 1080 (FHD) Aspect Ratio 16:9 Brightness (nits) 250 cd/m2 (TYP) Contrast Ratio 3000:1 Refresh Rate 75Hz Response Time 8ms (GTG) ∙ HDMI Port x1 ∙ D-Sub Port x1 View Angles 178°(H) , 178°(V) DCI-P3*/ sRGB... - Page 14 Monitor PRO MP241X Dimension (W x H x D) 541.79 x 416.61 x 180.80 mm Weight 2.85 Kg (Net) 4.27 Kg (Gross) ∙ Temperature: 0℃ ~ 40℃ Environment Operating ∙ Humidity: 20% ~ 90%, non-condensing ∙ Altitude: 0 ~ 5000m Storage ∙ Temperature: -20℃ ~ 60℃ ∙...
-
Page 15: Preset Display Modes
Preset Display Modes Standard Resolution HDMI D-Sub 640x480 @60Hz @67Hz @72Hz @75Hz Dos-Mode 720x480 @60Hz 720x576 @50Hz SVGA 800x600 @56Hz @60Hz @72Hz @75Hz 1024x768 @60Hz @70Hz @75Hz SXGA 1280x1024 @60Hz @75Hz WXGA+ 1440x900 @60Hz WSXGA+ 1680x1050 @60Hz Full HD 1920x1080 @60Hz @75Hz Video... -
Page 16: Troubleshooting
Troubleshooting The power LED is off. • Press the monitor power button again. • Check if the monitor power cable is properly connected. No image. • Check if the computer graphics card is properly installed. • Check if the computer and monitor are connected to electrical outlets and are turned on. -
Page 17: Safety Instructions
∙ Place the power cord in a way that people are unlikely to step on it. Do not place anything on the power cord. ∙ If this device comes with an adapter, use only the MSI provided AC adapter approved for use with this device. - Page 18 California, USA: The button cell battery may contain perchlorate material and requires special handling when recycled or disposed of in California. For further information please visit: https://dtsc.ca.gov/perchlorate/ Environment ∙ To reduce the possibility of heat-related injuries or of overheating the device, do not place the device on a soft, unsteady surface or obstruct its air ventilators.
-
Page 19: Tüv Rheinland Certification
TÜV Rheinland Certification TÜV Rheinland Low Blue Light Certification Blue light has been shown to cause eye fatigue and discomfort. MSI now offers monitors with TÜV Rheinland Low Blue Light certification to ensure users’ eye comfort and well-being. Please follow the instructions below to reduce the symptoms from extended exposure to the screen and blue light. -
Page 20: Regulatory Notices
1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. MSI Computer Corp. 901 Canada Court, City of Industry, CA 91748, USA (626) 913-0828 www.msi.com... - Page 21 Vietnam RoHS As from December 1, 2012, all products manufactured by MSI comply with Circular 30/2011/TT-BCT temporarily regulating the permitted limits for a number of hazardous substances in electronic and electric products.
- Page 22 Copyright and Trademarks Notice Copyright © Micro-Star Int’l Co., Ltd. All rights reserved. The MSI logo used is a registered trademark of Micro-Star Int’l Co., Ltd. All other marks and names mentioned may be trademarks of their respective owners.
