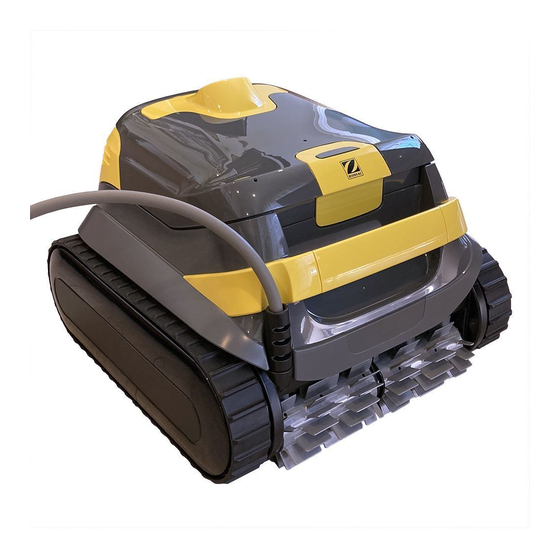

Robotic Pool Cleaner
CX40
CX50
TYPE EB37--
FOR YOUR SAFETY – For anything other than the routine cleaning and maintenance described in this guide, this product must be serviced by a
qualified professional with sufficient experience in pool equipment installation and maintenance so that all of the instructions in the product's complete
installation and operations manual can be followed exactly. All safety instructions in the complete manual must be followed explicitly in order to prevent
injury hazards. Improper installation and/or operation may void the warranty. Never turn the cleaner on unless it is fully submerged in the water. Doing
so may void the warranty and may cause severe damage to the cleaner motors.
WARNING
Owner's Manual
Advertisement
Table of Contents
Related Manuals for Zodiac CX40
Summary of Contents for Zodiac CX40
- Page 1 Owner’s Manual Robotic Pool Cleaner CX40 CX50 TYPE EB37-- WARNING FOR YOUR SAFETY – For anything other than the routine cleaning and maintenance described in this guide, this product must be serviced by a qualified professional with sufficient experience in pool equipment installation and maintenance so that all of the instructions in the product’s complete installation and operations manual can be followed exactly.
- Page 2 Serial No.: AUSTRALIA WARRANTY: For full warranty terms and conditions and to register your warranty, visit www.zodiac.com.au/warranty and complete your details. Or scan the QR code to go directly to the registration page. NEW ZEALAND WARRANTY: For full warranty terms and conditions and to register your warranty, visit www.zodiac.co.nz/warranty and complete your details.
-
Page 3: Table Of Contents
Zodiac Robotic Cleaner | Owner’s Manual ® Table of Contents Section 1. Important Safety Instructions ..4 Section 5. Maintenance ........9 5.1 Cord Tangling ..........9 Section 2. Cleaner Specifications ....5 5.2 Clean the Filter Canister ....... 10 2.1 General Specifications ........ -
Page 4: Section 1. Important Safety Instructions
Ink from the pattern can also rub off during the installation process or when it comes into contact with objects in the pool. Zodiac Group Australia Pty. Ltd. is not responsible for, and the Limited Warranty does not cover, pattern removal, abrasion or markings on vinyl liners. -
Page 5: Section 2. Cleaner Specifications
Cleaner size 43 x 48 x 27 cm (WxDxH) Weight of Cleaner 9.5 kg Packed weight 19 kg (CX50) 14 kg (CX40) Filtration Dual filter canisters Cycle lengths 2h 30m (all surfaces) 1h 15m (floor only) Figure 1. Attach Control Unit to Caddy The cleaner is a double-insulated product. -
Page 6: Connect To A Power Source
• To reduce the risk of electrical shock, do not use the robotic cleaner or Control Unit if the cord is worn or damaged. Contact Zodiac Customer Care Service at 1300 763 021 for Australia or 0800 807 665 for New Zealand immediately for proper servicing and replacement of the damaged cord. -
Page 7: Submerge The Cleaner
Zodiac Robotic Cleaner | Owner’s Manual ® Submerge the Cleaner Place only enough floating cable in the water to reach the farthest end of your pool from the With the Control Unit plugged into a power central point. Spread out the floating cable outlet, spread the floating cable across the ensuring there are no kinks or coils. -
Page 8: Section 4. Control Unit
Zodiac Robotic Cleaner | Owner’s Manual ® Section 4. Control Unit When the cleaning cycle is done, remove the cleaner from the pool using the handle. The Control Unit can be used to initiate basic cleaning features. Figure 6. Always remove cleaner using the handle NOTE: Never lift the cleaner out of the pool by the floating cable. -
Page 9: Section 5. Maintenance
Zodiac Robotic Cleaner | Owner’s Manual ® Section 5. Maintenance Hold the cleaner vertically to drain. The cleaner should be cleaned regularly using mild soapy water. Do not use any solvents such as trichlorethylene. Rinse using clean water. Do not let the cleaner dry in direct sunlight near the pool. -
Page 10: Clean The Filter Canister
Zodiac Robotic Cleaner | Owner’s Manual ® Clean the Filter Canister Empty all debris from the filter canisters, then rinse canisters and the cleaner using a hose. The filter canister should be cleaned at the end of each cycle. If equipped, use the Lift System to drive the cleaner to the waterline. -
Page 11: Section 6. Cleaner Storage
Zodiac Robotic Cleaner | Owner’s Manual ® Section 6. Cleaner Storage Section 7. Replacing Wear Parts Store the cleaner when not in use. To maintain cleaner performance, replace wear parts every 2 years or as needed. Replace the Disconnect cleaner from the power source. -
Page 12: Replacing Tracks
Zodiac Robotic Cleaner | Owner’s Manual ® Separate the edges of the brush and undo the Use a pair of scissors to cut the tabs 3/4 inch tabs. Remove the worn brushes. from the heel so that they are no higher than the cleaning blade. - Page 13 Zodiac Robotic Cleaner | Owner’s Manual ® Replace the track on the wheel by positioning Push and position the rib of the inner side the rib toward the body of the cleaner. of the track in the groove of the rear wheel.
-
Page 14: Section 8. Troubleshooting
Zodiac Robotic Cleaner | Owner’s Manual ® Section 8. Troubleshooting If the status indicator on the Control Unit flashes to alert the user, follow the recommended troubleshooting tips below. Error Codes Flashing LED Suggested Solution • Disconnect and reconnect the cleaner. -
