Page 2
This misuse will void all warranty on the unit. In no event shall Zodiac be liable in contract or in tort, or under any other legal theory, for lost profits or revenues, loss of use or similar economic loss, or for indirect, special, incidental, consequential or similar damages, even if it has been advised of the possibility of such claim.
Page 3
Disc Important Information Notice for Vinyl Liner Pools: Before installing your new Wahoo, examine the interior of your pool carefully. If the vinyl liner is brittle or has stones, wrinkles, roots or metal corrosion in contact with the underside of the liner, or has damage to the base material or supporting walls, do not install the cleaner before having a qualified professional perform the necessary repairs or liner replacement.
• Redirect the eyeball downward • Retighten the lock If the return fitting cannot be adjusted, the fitting must be replaced with Zodiac return line diverter (part #W90153 for 1-1/2", #W90155 for 2" or #W24100 for pools without return fittings).
Page 5
Connect the Cleaner 1. Submerge the cleaner and flood it with water. 2. When bubbles stop coming from the extension pipe, connect the hose to 45 Elbow the cleaner. Hose 3. Turn on the filtration system and fill the Protector hose with water by placing the end in front of a return inlet until it is flooded.

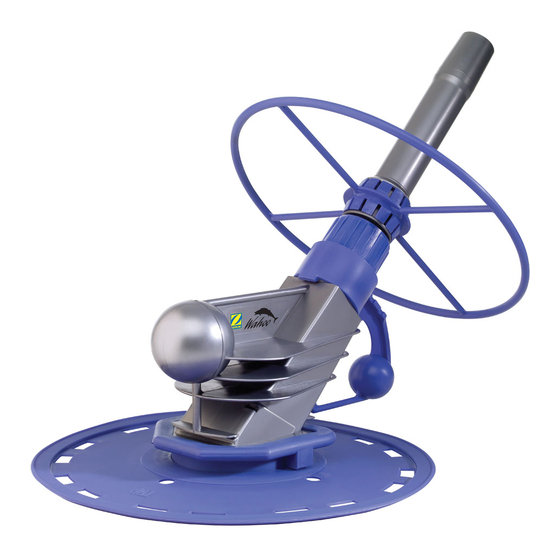

Operation and Maintenance Cycling on and off with the pool filtration system, the Wahoo moves randomly around the pool, vacuuming and cleaning the pool floor as it goes. The cleaner is not designed to climb the pool walls. As water flows through the cleaner, dirt and debris are pulled directly into the filtration system.
Troubleshooting If you experience a problem with your Wahoo, please follow the troubleshooting steps below to restore performance. If further assistance is required, contact Zodiac Customer Service. Please have your serial number and date of purchase available when you call.
