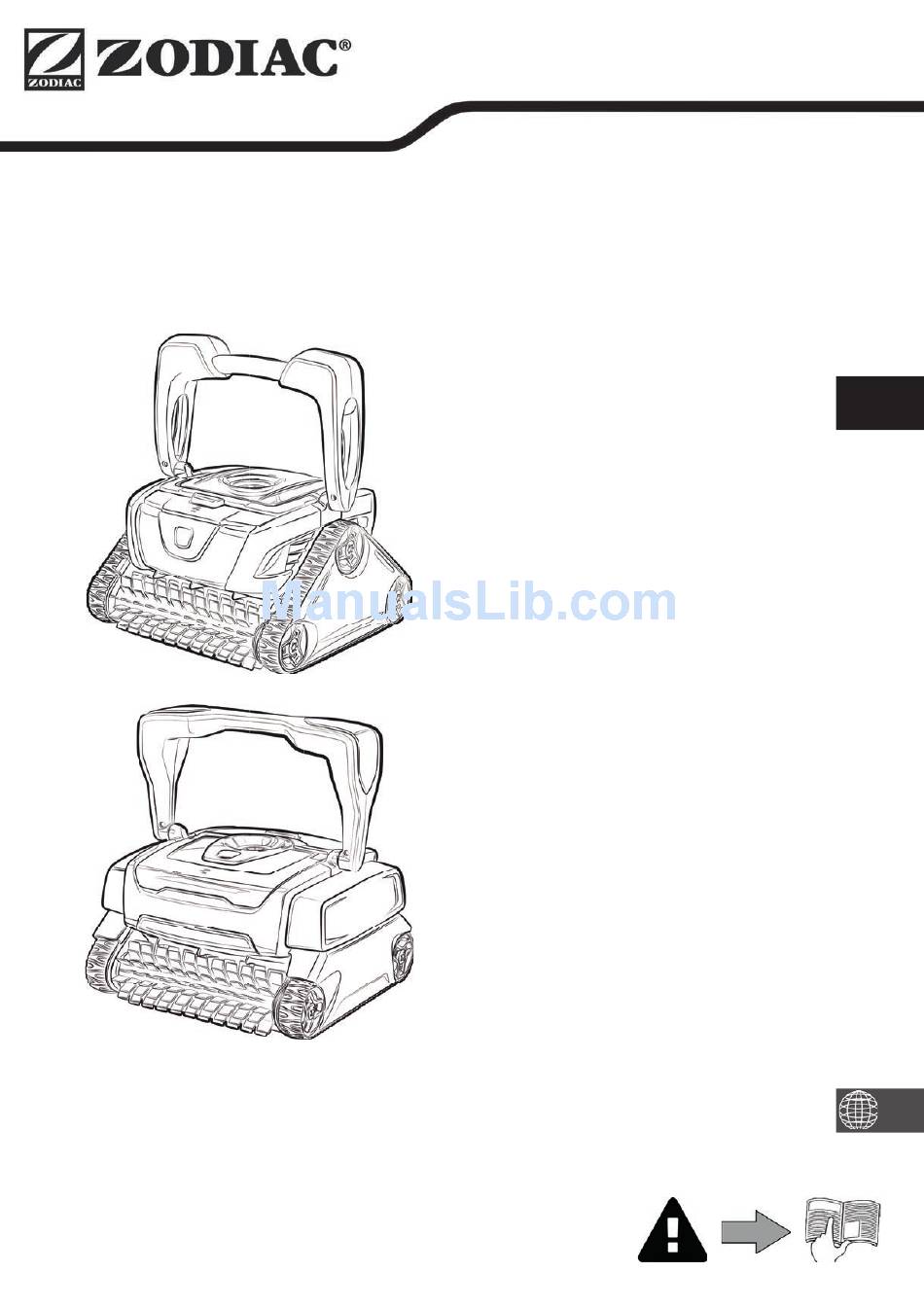

- Page 1 CyclonX™ Instructi ons for installati on and use - English Electric cleaner Translati on of the original instructi ons in french More documents on: www.zodiac.com H0426500_REVE - 2018/01 - EM11 --...
- Page 2 fi re. • Zodiac® heat pump, fi ltrati on pump and fi lter appliances are compati ble with the most commonly used types of pool water treatment systems. • Do not touch the fan and/or moving parts or insert a rod or your fi ngers in the vicinity of the moving parts while the appliance is in operati on.
-
Page 3: Table Of Contents
The distributi on or modifi cati on of this document in any way is prohibited, without prior • authorisati on from Zodiac®. Zodiac® is constantly developing its products to improve their quality. The informati on • contained herein may therefore be modifi ed without noti ce. -
Page 4: ❶ Specifi Cati Ons
❶ Specifi cati ons 1.1 I Descripti on (x2) (x2) (x2) (x2) OC 3300 OC 3400 - RC 4100 - RC 4130 - RC 4350 RC 4300 RC 4401 RX 4450 TILE - RC 4360 - RC 4370 -RC 4400 A Cleaner A + fl... -
Page 5: I Technical Specifi Cati Ons And Marking 4 En
OC 3300 TILE - OC 3400 - RC 4100 - RC 4400 - RC 4130 - RC 4300 - RC 4350 - RC 4360 - Symbol Designati on RC 4401 RC 4370 - RX 4450 Start/Stop the appliance "Control" indicator Surface Control System = Surface inspecti on "Clean fi... -
Page 6: ❷ Installati On
1.2.2 Marking : "Push'n'Go™" fi lter access hatch lock : Brushes : Tracks : Handle : Clear window (depending on model) : Floati ng cable : Cartridges Cleaner A Cleaner B 1.2.3 Product conformity This appliance has been designed and built according to the following standards: Low voltage directi ve: 2006/95/EC Electromagneti c compati bility directi ve: 2004/108/EC EN 55014-1: 2000 +A1:2001 +A2:2002;... -
Page 7: I Att Achment To The Base Or Caddy Assembly
2.2 I Att achment to the base or caddy assembly 2.2.1 Att achment to the base 2.2.2 Caddy assembly Tool-free assembly (x2) (x2) (x2) -
Page 8: ❸ Use
❸ Use 3.1 I Operati ng principle The cleaner is independent of the fi ltrati on system and can therefore operate autonomously. It just simply needs to be connected to the mains power supply. It fi nds the best route to move around and clean the areas of the pool for which it has been designed (depending on the model: bott om, walls, water line). -
Page 9: I Electricity Supply Connecti Ons
3.4 I Electricity supply connecti ons To prevent risk electrocuti on, fi re, or serious injury, be sure to adhere to the following: • Use of an electrical extension is prohibited when connecti ng the control box. • Make sure that the socket can be easily accessed at all ti mes and is protected from rain or splashes. -
Page 10: I Starti Ng The Cleaning Cycle
3.5 I Starti ng the cleaning cycle To prevent risk of injury or property damage, be sure to adhere to the following: • Bathing is prohibited when the appliance is in the pool. • Do not use the appliance during shock chlorinati on. •... - Page 11 3.5.4 Surface control • Check that the cleaner fi lter is clean so as not to aff ect the cleaner's behaviour. • Once the cleaning cycle has been launched, monitor the cleaner's behaviour when climbing the walls and when it brushes the water line.
-
Page 12: I Ending The Cleaning Cycle
3.6 I Ending the cleaning cycle • To prevent damage to the equipment, only use the handle to take the cleaner out of the water; do not lift it with the fl oati ng cable. • Do not leave the appliance to dry out in sunlight aft er use. •... -
Page 13: ❹ Maintenance
❹ Maintenance • The appliance must be cleaned regularly using clean or slightly soapy water. Do not use solvents. • Rinse the appliance thoroughly with clean water. • Do not let your appliance dry in the sun by the pool. Tip: replace the fi... -
Page 14: I Cleaning The Propeller
4.2 I Cleaning the propeller To avoid serious injury: • Disconnect the cleaner from the power supply. Disconnect the cleaner from the power supply. • Wear gloves when handling the propeller • Loosen the screw on the grid (see image •... -
Page 15: I Replacing The Brushes
4.3.i I Replacing the brushes • Each brush is equipped with wear indicators; the distance between the indicators and the end of the brush indicates whether the brush is in good conditi on (see image • The brushes are worn and should be replaced when the wear indicators appear as shown in image •... -
Page 16: I Replacing The Tracks
4.4 I Replacing the tracks • For RX 4450 cleaners, the tracks must be replaced by the retailer. • Place the cleaner on its side (see image • Starti ng with one of the wheels, pull the inside of the track to separate it from the wheel (see image ). -
Page 17: ❺ Troubleshooti Ng
❺ Troubleshooti ng • If a problem occurs, before you contact your retailer, please carry out these few simple checks using the following tables. • If the problem conti nues, contact your retailer. • : Acti ons to be performed by a qualifi ed technician only 5.1 I Appliance behaviour This may have 3 causes: While operati ng, the cleaner... -
Page 18: I User Alerts
5.2 I User alerts Soluti ons Flashing LED: • Check that the cleaner is correctly connected to the control box. If necessary, unplug it and reconnect it following the appropriate procedure. • Check that nothing is stopping the brushes and tracks from turning correctly (sand, cable, etc.). - Page 19 Modèle appareil Appliance model Numéro de série Serial number Trouvez plus d’informati ons et enregistrez votre produit sur More informati ons and register you product on www.zodiac.com ZODIAC® is a registered trademark of Zodiac Internati onal, S.A.S.U., used under license.
