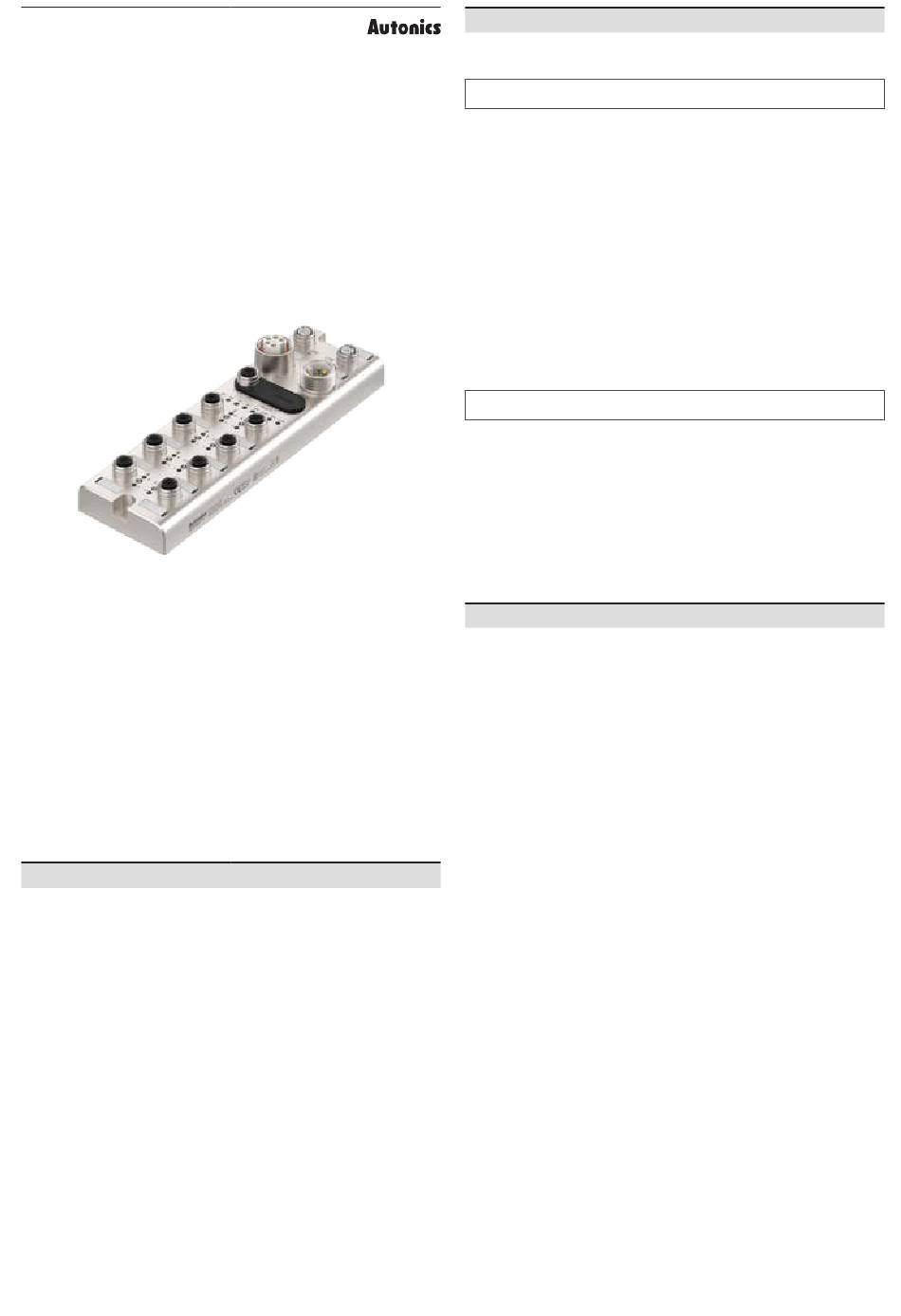

20220119

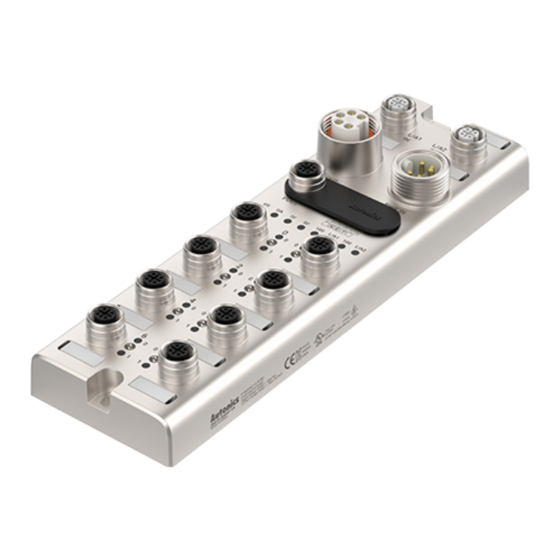

Remote I/O Boxes
(PROFINET)
ADIO-PN
PRODUCT MANUAL
For your safety, read and follow the considerations written in the instruction
manual, other manuals and Autonics website.
The speci昀椀cations, dimensions, etc. are subject to change without notice for product
improvement. Some models may be discontinued without notice.
Features
• The upper level communication protocol: PROFINET
• The lower level communication protocol: IO-Link ver. 1.1 (port class: Class A)
• Housing material: Zinc Die casting
• Protection rating: IP67
• The daisy chain allows the power supply using the connection technology
in a standardized 7/8" connector
• The maximum output current of power supply: 2 A per port
• I/O port settings and status monitoring
(cable short / disconnection, connection status, etc.)
• Supports digital input 昀椀lter
ᜢ ᜨ ᜣ ᜬ ᜼
Safety Considerations
• Observe all 'Safety Considerations' for safe and proper operation to avoid hazards.
• ᜸ symbol indicates caution due to special circumstances in which hazards may occur.
᜸ Warning
Failure to follow instructions may result in serious injury or death.
01. Fail-safe device must be installed when using the unit with machinery
that may cause serious injury or substantial economic loss.(e.g. nuclear
power control, medical equipment, ships, vehicles, railways, aircraft,
combustion apparatus, safety equipment, crime/disaster prevention
devices, etc.)
Failure to follow this instruction may result in personal injury, economic loss or
昀椀re.
02. Do not use the unit in the place where 昀氀ammable/explosive/corrosive gas,
high humidity, direct sunlight, radiant heat, vibration, impact or salinity
may be present.
Failure to follow this instruction may result in explosion or 昀椀re.
03. Do not connect, repair, or inspect the unit while connected to a power
source.
Failure to follow this instruction may result in 昀椀re.
04. Check 'Connections' before wiring.
Failure to follow this instruction may result in 昀椀re.
05. Do not disassemble or modify the unit.
Failure to follow this instruction may result in 昀椀re.
06. Do not touch the product during operation or for a certain period of time
after stopping.
Failure to follow this instruction may result in burn.
᜸ Caution
Failure to follow instructions may result in injury or product damage.
01. Use the unit within the rated speci昀椀cations.
Failure to follow this instruction may result in 昀椀re or shortening the life cycle of the
product.
02. Use a dry cloth to clean the unit, and do not use water or organic solvent.
Failure to follow this instruction may result in 昀椀re.
03. Keep the product away from metal chip, dust, and wire residue which 昀氀ow
into the unit.
Failure to follow this instruction may result in 昀椀re or product damage.
04. Connect the cable correctly and prevent poor contact.
Failure to follow this instruction may result in 昀椀re or product damage.
05. Do not connect or cut o昀昀 the wire of the cable while operating the unit.
Failure to follow this instruction may result in 昀椀re or product damage.
Cautions during Use
• Follow instructions in 'Cautions during Use' . Otherwise, it may cause unexpected
accidents.
• The UA power (actuator power) and US power (sensor power) should be insulated by
the individually isolated power device.
• Power supply should be insulated and limited voltage/current or Class 2, SELV power
supply device.
• Use the rated standard cables and connectors. Do not apply excessive power when
connecting or disconnecting the connectors of the product.
• Keep away from high voltage lines or power lines to prevent inductive noise.
In case installing power line and input signal line closely, use line 昀椀lter or varistor at
power line and shielded wire at input signal line.
For stable operation, use shield wire and ferrite core, when wiring communication wire,
power wire, or signal wire.
• Do not use near the equipment which generates strong magnetic force or high
frequency noise.
• Do not connect, or remove this unit while connected to a power source.
• This unit may be used in the following environments.
- Indoors (in the environment condition rated in 'Speci昀椀cations')
- Altitude max. 2,000 m
- Pollution degree 2
- Installation category II

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADIO-PN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Autonics ADIO-PN

  • Page 1 For your safety, read and follow the considerations written in the instruction For stable operation, use shield wire and ferrite core, when wiring communication wire, manual, other manuals and Autonics website. power wire, or signal wire. The speci昀椀cations, dimensions, etc. are subject to change without notice for product •...
  • Page 2 The 昀椀gure below shows the PROFINET network and the devices that compose it. For proper use of the product, refer to the manuals and be sure to follow the safety considerations in the manuals. Download the manuals from the Autonics website. Project planning software + GSDML 昀椀le atIOLink + IODD 昀椀le...
  • Page 3: Ordering Information

    Function Not Connected (N.C.) Software Data - Download the installation 昀椀le and the manuals from the Autonics website. ■ atIOLink atIOLink with purposes for setting, diagnosis, initialization and maintenance of IO-Link Not Connected (N.C.) device via IODD 昀椀le is provided as the dedicated Port and Device Con昀椀guration Tool Data + (PDCT).
  • Page 4 -|Transparent Guide|- Dimensions • Unit: mm, For the detailed dimensions of the product, follow the Autonics website. 33.4 Ø4.5 M4 X 0.7 8.35 Ø4.5 29.6...
  • Page 5: Unit Descriptions

    -|Transparent Guide|- Unit Descriptions Installation ■ Mounting 01. Prepare a 昀氀at or metal panel in the enclosure. 02. Drill a hole to mount and ground the product on the surface. 03. Turn o昀昀 all power. 04. Fix the product using M4 screws in the mounting holes. Tightening torque: 1.5 N m ■...
  • Page 6: Device Name Settings

    04. The device name has been changed. 05. Put the protective cover on the rotary switches. ■ atIOLink The PROFINET device name con昀椀gured by the atIOLink software is stored in the ADIO-PN's EEPROM. For more information, refer to the atIOLink User Manual.
  • Page 7: Port Connections

    -|Transparent Guide|- Port Connections ■ Port speci昀椀cations • Be sure to check the port speci昀椀cations below before connecting the device. Prepare a cable that complies with the protection rating IP67. Ethernet port I/O port PDCT port Power supply port M12 (Socket-Female), 4-pin, M12 (Socket-Female), 5-pin, M12 (Socket-Female), 5-pin, Input: 7/8”...
  • Page 8 -|Transparent Guide|- Port Connections 03. Connect with the atIOLink ᜸ Do not use the PDCT port and the Ethernet port at the same time. 01. Connect the M12 connector to the PDCT port. See the connections below. Not Connected (N.C.) Data - Not Connected (N.C.) Data +...
  • Page 9 -|Transparent Guide|- Indicators ■ Status indicator ■ I/O port indicator 01. The power supply of sensor 01. Pin 4 (C/Q) Indicator LED color Status Description Indicator LED color Status Description Applied voltage: normal DI/DO: pin 4 OFF Green Flashing The settings of the rotary switches is DI/DO: pin 4 ON Yellow (1 Hz)
  • Page 10: Communication Interface

    W 66 × H 215 × D 38 mm Address settings Rotary switches, DCP, atIOLink Dimensions Zinc Die casting GSDML 昀椀le Download the GSDML 昀椀le at the Autonics website. Material M12 (Socket-Female), 4-pin, D-coded, Push-Pull Number of ports: 2 (IN/OUT) ■ IO-Link Ethernet port Supported function: daisy chain Input: 7/8”...
