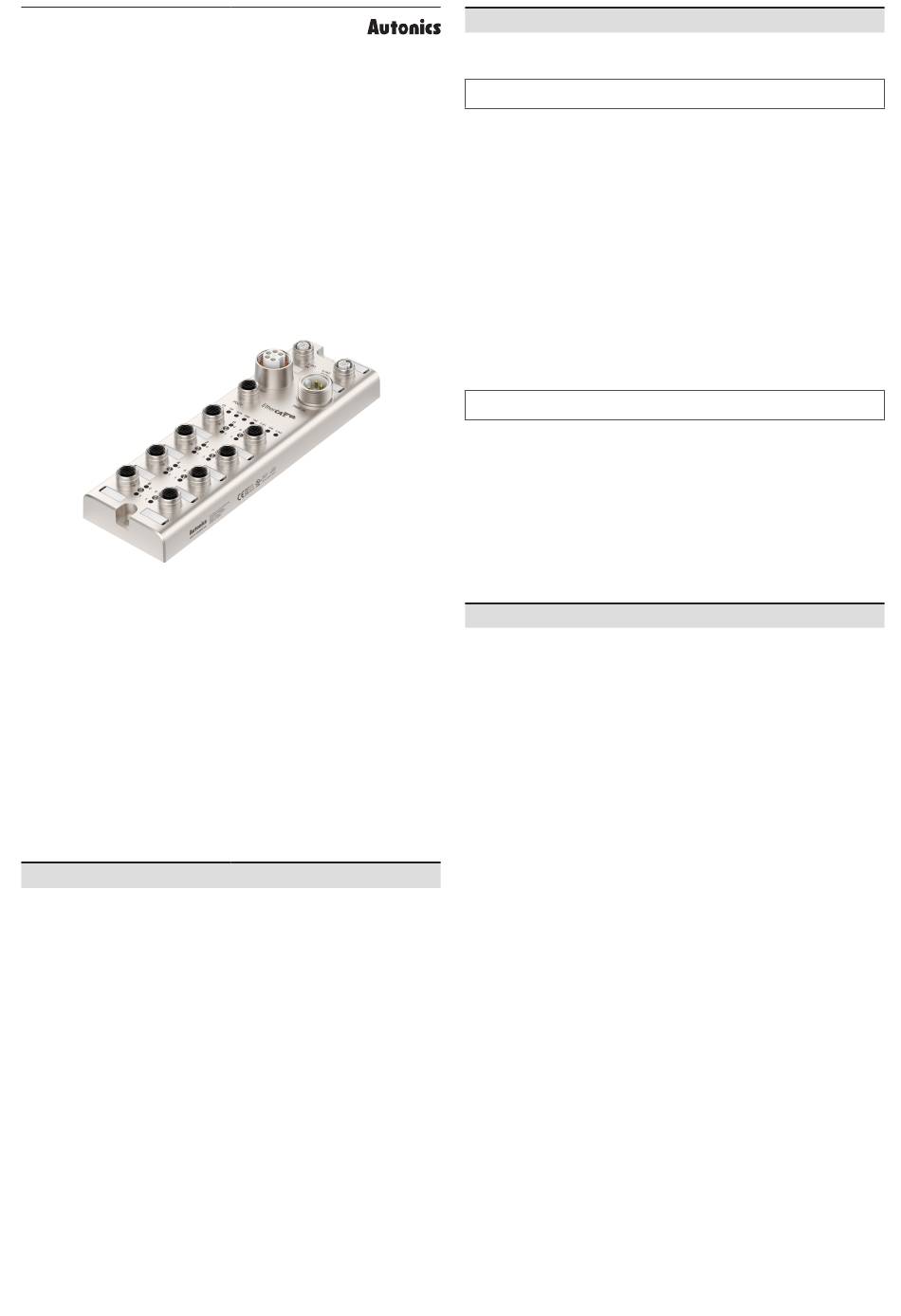

ADIO-EC
PRODUCT MANUAL
For your safety, read and follow the considerations written in the instruction
manual, other manuals and Autonics website.
The specifications, dimensions, etc. are subject to change without notice for product
improvement. Some models may be discontinued without notice.

Features

• The upper level communication protocol: EtherCAT
• The lower level communication protocol: IO-Link ver. 1.1 (port class: Class A)
• Housing material: Zinc Die casting
• Protection rating: IP67, IP69K
• The daisy chain allows the power supply using the connection technology in a
standardized 7/8" connector
• The maximum output current of power supply: 2 A per port
• I/O port settings and status monitoring
(cable short / disconnection, connection status, etc.)
• Supports digital input filter
ᜢ ᜨ ᜣ ᜬ ᜺

Safety Considerations

• Observe all 'Safety Considerations' for safe and proper operation to avoid hazards.
• ᜸ symbol indicates caution due to special circumstances in which hazards may occur.
᜸ Warning
Failure to follow instructions may result in serious injury or death.
01. Fail-safe device must be installed when using the unit with machinery
that may cause serious injury or substantial economic loss.(e.g. nuclear
power control, medical equipment, ships, vehicles, railways, aircraft,
combustion apparatus, safety equipment, crime/disaster prevention
devices, etc.)
Failure to follow this instruction may result in personal injury, economic loss or
fire.
02. Do not use the unit in the place where flammable/explosive/corrosive gas,
high humidity, direct sunlight, radiant heat, vibration, impact or salinity
may be present.
Failure to follow this instruction may result in explosion or fire.
03. Do not connect, repair, or inspect the unit while connected to a power
source.
Failure to follow this instruction may result in fire.
04. Check 'Connections' before wiring.
Failure to follow this instruction may result in fire.
05. Do not disassemble or modify the unit.
Failure to follow this instruction may result in fire.
06. Do not touch the product during operation or for a certain period of time
after stopping.
Failure to follow this instruction may result in burn.
᜸ Caution
Failure to follow instructions may result in injury or product damage.
01. Use the unit within the rated specifications.
Failure to follow this instruction may result in fire or shortening the life cycle of the
product.
02. Use a dry cloth to clean the unit, and do not use water or organic solvent.
Failure to follow this instruction may result in fire.
03. Keep the product away from metal chip, dust, and wire residue which flow
into the unit.
Failure to follow this instruction may result in fire or product damage.
04. Connect the cable correctly and prevent poor contact.
Failure to follow this instruction may result in fire or product damage.
05. Do not connect or cut off the wire of the cable while operating the unit.
Failure to follow this instruction may result in fire or product damage.
Cautions during Use
• Follow instructions in 'Cautions during Use' . Otherwise, it may cause unexpected
accidents.
• The UA power (actuator power) and US power (sensor power) should be insulated by
the individually isolated power device.
• Power supply should be insulated and limited voltage/current or Class 2, SELV power
supply device.
• Use the rated standard cables and connectors. Do not apply excessive power when
connecting or disconnecting the connectors of the product.
• Keep away from high voltage lines or power lines to prevent inductive noise.
In case installing power line and input signal line closely, use line filter or varistor at
power line and shielded wire at input signal line.
For stable operation, use shield wire and ferrite core, when wiring communication wire,
power wire, or signal wire.
• Do not use near the equipment which generates strong magnetic force or high
frequency noise.
• Do not connect, or remove this unit while connected to a power source.
• This unit may be used in the following environments.
- Indoors (in the environment condition rated in 'Specifications')
- Altitude max. 2,000 m
- Pollution degree 2
- Installation category II
