ARD-D Series

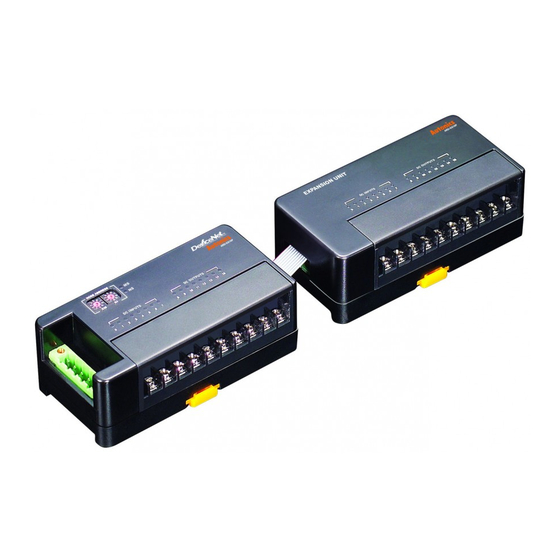

DeviceNet Digital Remote I/O

Features

● Automatic communication speed recognition
: Enables to recognize communication speed automatically when connecting
with master
● Network Voltage monitoring
: If PV is lower than SV, enables to receive error flag for network power
monitoring as Explicit message.
● Additional expansion units
- Standard terminal block type: Connectable up to 3 expansion units
- Sensor connector type: Connectable up to 7 expansion units
- Expandable I/O points up to max. 64 points for Standard terminal type,
sensor connector type
● Reading the number of expansion units
: Reads the number of connected expansion units
● Reading model name: Reads the connected model name of connected
units(sensor connector type)
● Reading the unit specifications: Reads the specifications of connected units
Please read "Caution for your safety" in operation
manual before using.

Ordering Information

AR
D
D
Digital/Analog
Network
Item
※ 1: Sensor connector type(ARD-
※ 2: Sensor connector(CNE-P04- ) is sold separately. It is compatible with e-CON connector.
※ 3: It is only for an expansion unit of sensor connector type.
※ 4: It is only for an expansion unit of standard terminal block type.
※ 5: For ARD-A Series as analog type, refer to S-13 page.
Model
Model
Terminal type
Basic unit
ARD-DI08A
ARD-DI16N
ARD-DI16P
ARD-DO08R
Standard
terminal block
ARD-DO08S
type
ARD-DO16N
ARD-DO16P
ARD-DX16N
ARD-DX16P
ARD-DI08N-4S
Sensor
ARD-DI08P-4S
connector
ARD-DO08N-4S
type
ARD-DO08P-4S
C-142
I
08
A
E
4S
Structure
I/O specification
I/O point
I/O type
-4S) model is only for NPN, PNP I/O specifications.
Specification
Expansion unit
ARD-DI08AE
75-250VAC input 8-point(13mA/point)
ARD-DI16NE
10-28VDC NPN input 16-point(10mA/point)
ARD-DI16PE
10-28VDC PNP input 16-point(10mA/point)
ARD-DO08RE
Relay output 8-point(2A/point), Life cycle of contact: 100,000 times
ARD-DO08SE
SSR output 8-point(1A/point)
ARD-DO16NE
NPN output 16-point(0.5A/point)
ARD-DO16PE
PNP output 16-point(0.5A/point)
ARD-DX16NE
10-28VDC NPN input 8-point(10mA/point), NPN output 8-point(0.5A/point)
ARD-DX16PE
10-28VDC PNP input 8-point(10mA/point), PNP output 8-point(0.5A/point)
ARX-DI08N-4S
10-28VDC NPN input 8-point(10mA/point)
ARX-DI08P-4S
10-28VDC PNP input 8-point(10mA/point)
ARX-DO08N-4S
NPN output 8-point(0.3A/point)
ARX-DO08P-4S
PNP output 8-point(0.3A/point)
Terminal
※ 2
block
No-mark
Standard terminal block type
4S
Sensor connector type(4pin)
No-mark
Basic unit
※ 4
E
Expansion unit
A
AC voltage
※ 1
N
NPN open collector
P
PNP open collector
08
8 points type
16
16 points type
I
Input type
O
Output type
X
I/O mixed type
D
Digital type
※ 5
A
Analog type
D
Basic unit(DeviceNet type)
※ 3
X
Expansion unit(use in DeviceNet/Modbus)
AR
Autonics Remote I/O
Standard terminal
block type
Sensor connector type
R
Relay
S
SSR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARD-D Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Autonics ARD-D Series

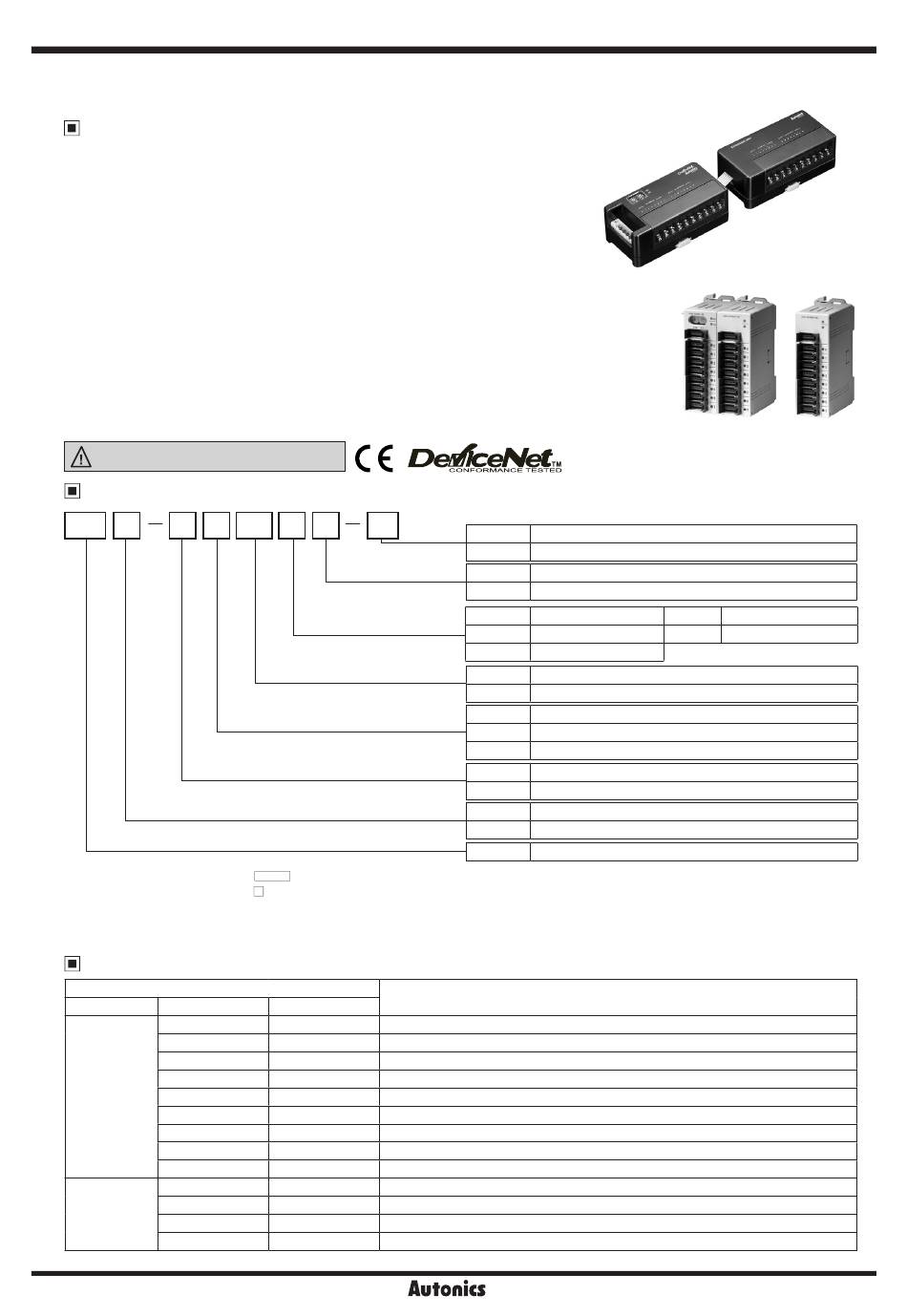

  • Page 1 ARD-D Series DeviceNet Digital Remote I/O Features ● Automatic communication speed recognition : Enables to recognize communication speed automatically when connecting with master ● Network Voltage monitoring : If PV is lower than SV, enables to receive error flag for network power Standard terminal monitoring as Explicit message.
  • Page 2 Unit weight Approx. 140g Approx. 140g 150g 160g 170g ※ Environment resistance is rated at no freezing or condensation. MITUBISHI LSIS Type Sensor connector type Autonics Basic unit ARD-DI08N-4S ARD-DI08P-4S ARD-DO08N-4S ARD-DO08P-4S Model RS Automation Expansion unit ARX-DI08N-4S ARX-DI08P-4S ARX-DO08N-4S...
  • Page 3 ARD-D Series DeviceNet Communication Item Specifications I/O Slave messaging(Group 2 Only slave) Communication ·Poll command: Yes ·Bit_strobe command: Yes ·Cyclic command: Yes ·COS command: Yes Communication distance Max. 500m(125kbps), Max. 250m(250kbps), Max. 100m(500kbps) NODE ADDRESS setting Max. 64 nodes(set by the front rotary switch)
  • Page 4 Terminal Block) CAN_H OUT0 Load Power Relay SHIELD NPN output CAN_L I/O Cables OUT1 Load MITUBISHI 10-28VDC DC-DC converter Non-insulation LSIS Autonics RS Automation 10-28VDC CAN_H OUT0 SHIELD Load YOKOGAWA PNP output CAN_L FUJI OUT1 Load DC-DC converter OMRON Non-insulation...
  • Page 5 ARD-D Series I/O Circuit Diagram Sensor connector type Type Network connector Inner circuit Sensor connector 24VDC Internal circuits NPN input IN□ 24VDC Internal circuits PNP input IN□ 24VDC NPN output Internal circuits OUT□ 24VDC PNP output Internal circuits OUT□ ※IN : IN0 to IN7, OUT : OUT0 to OUT7...
  • Page 6 AFE(Sensor Connector Terminal Block) ABS(Relay Terminal Block) ABL(Relay Terminal Block) Power Relay I/O Cables MITUBISHI LSIS Autonics RS Automation YOKOGAWA FUJI OMRON IN(NPN): 8P, 24VDC 10mA IN(PNP): 8P, 24VDC 10mA OUT(NPN): 8P, 24VDC 0.3A/Point OUT(PNP): 8P, 24VDC 0.3A/Point TELEMECANIQUE Dimensions...
  • Page 7 ARD-D Series Dimensions Sensor connector type (unit: mm) ● Mounting on DIN rail ● Mounting with screws ● Connector 2-Ø4.5 ※ Tightening torque: 1.8 to 2.5N·m ※ Same dimensions are applied to 35.3 85.4 both basic and expansion unit. Status LED...
  • Page 8 ※ Do not install terminating resistance on the unit, or it may cause network terminating problem(Impedance can be too high or low) and trouble. LSIS ※ Connect terminating resistance on the both ends of the trunk line. Autonics RS Automation Caution During Use YOKOGAWA Turn OFF the power before connecting or disconnecting expansion units.
