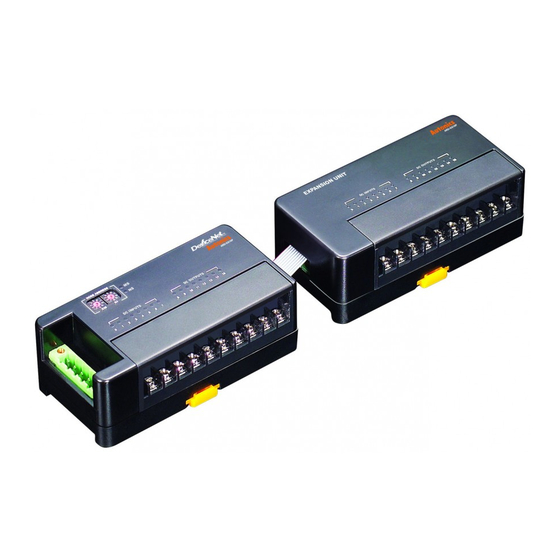

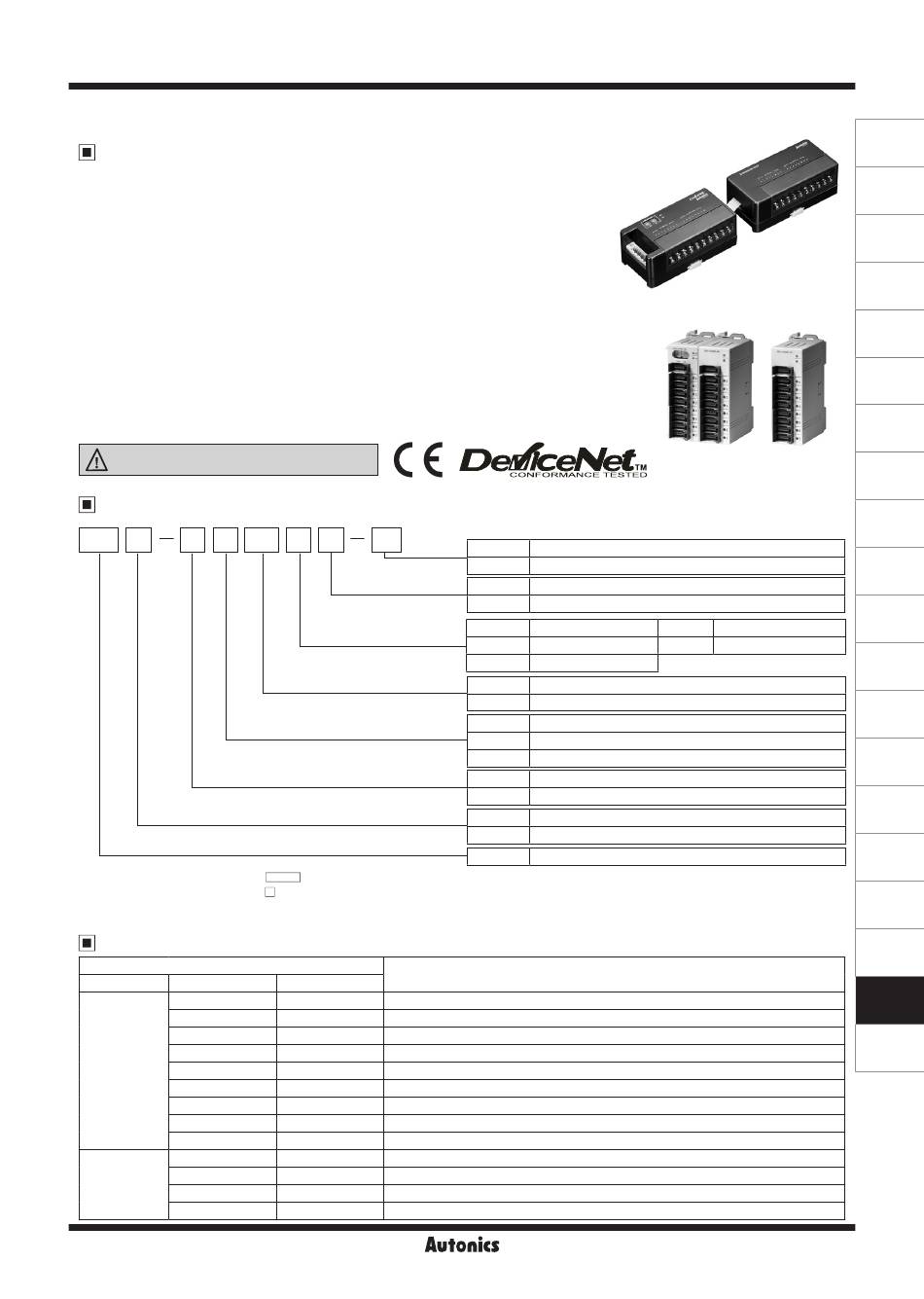

ARD-D Series
DeviceNet Digital Remote I/O
Features
● Automatic communication speed recognition
: Enables to recognize communication speed automatically
when connecting with master
● Network Voltage monitoring
: If PV is lower than SV, enables to receive error flag for
network power monitoring as Explicit message.
● Additional expansion units
- Standard terminal block type: Connectable up to 3 expansion units
- Sensor connector type: Connectable up to 7 expansion units
- Expandable I/O points up to max. 64 points for Standard terminal type,
sensor connector type
● Reading the number of expansion units
: Reads the number of connected expansion units
● Reading model name: Reads the connected model name
of connected units (sensor connector type)
● Reading the unit specifications: Reads the specifications of connected units
Please read "Caution for your safety" in operation
manual before using.
Ordering Information
AR D D I
I/O type
Digital/Analog
Network
Item
※ 1: Sensor connector type (ARD-
※ 2: Sensor connector (CNE-P04- ) is sold separately. It is compatible with e-CON connector.
※ 3: It is only for an expansion unit of sensor connector type.
※ 5: For ARD-A Series as analog type, refer to S-13 page.
Model
Model
Terminal type Basic unit
ARD-DI08A
ARD-DI16N
ARD-DI16P
ARD-DO08R
Standard
terminal block ARD-DO08S
type
ARD-DO16N
ARD-DO16P
ARD-DX16N
ARD-DX16P
ARD-DI08N-4S
Sensor
ARD-DI08P-4S
connector
ARD-DO08N-4S
type
ARD-DO08P-4S
DeviceNet Digital Remote I/O
Terminal
08 A E 4S
block
Structure
※ 1
I/O specification
I/O point
-4S) model is only for NPN, PNP I/O specifications.
Specification
Expansion unit
ARD-DI08AE 75-250VAC input 8-point (13mA/point)
ARD-DI16NE 10-28VDC NPN input 16-point (10mA/point)
ARD-DI16PE 10-28VDC PNP input 16-point (10mA/point)
ARD-DO08RE Relay output 8-point (2A/point), Life cycle of contact: 100,000 times
ARD-DO08SE SSR output 8-point (1A/point)
ARD-DO16NE NPN output 16-point (0.5A/point)
ARD-DO16PE PNP output 16-point (0.5A/point)
ARD-DX16NE 10-28VDC NPN input 8-point (10mA/point), NPN output 8-point (0.5A/point)
ARD-DX16PE 10-28VDC PNP input 8-point (10mA/point), PNP output 8-point (0.5A/point)
ARX-DI08N-4S 10-28VDC NPN input 8-point (10mA/point)
ARX-DI08P-4S 10-28VDC PNP input 8-point (10mA/point)
ARX-DO08N-4S NPN output 8-point (0.3A/point)
ARX-DO08P-4S PNP output 8-point (0.3A/point)
※ 2
No-mark Standard terminal block type
4S Sensor connector type (4pin)
No-mark Basic unit
※ 4
E Expansion unit
A AC voltage
N NPN open collector
P PNP open collector
08 8 points type
16 16 points type
I Input type
O Output type
X I/O mixed type
D Digital type
※ 5
A Analog type
D Basic unit (DeviceNet type)
※ 3
X Expansion unit (use in DeviceNet/Modbus)
AR Autonics Remote I/O
※ 4: It is only for an expansion unit of standard terminal block type.
Standard terminal
block type
Sensor connector type
R Relay
S SSR
S-5
