Remote I/O Boxes
IO-Link Hub Type
Digital I/O, Digital Input Type

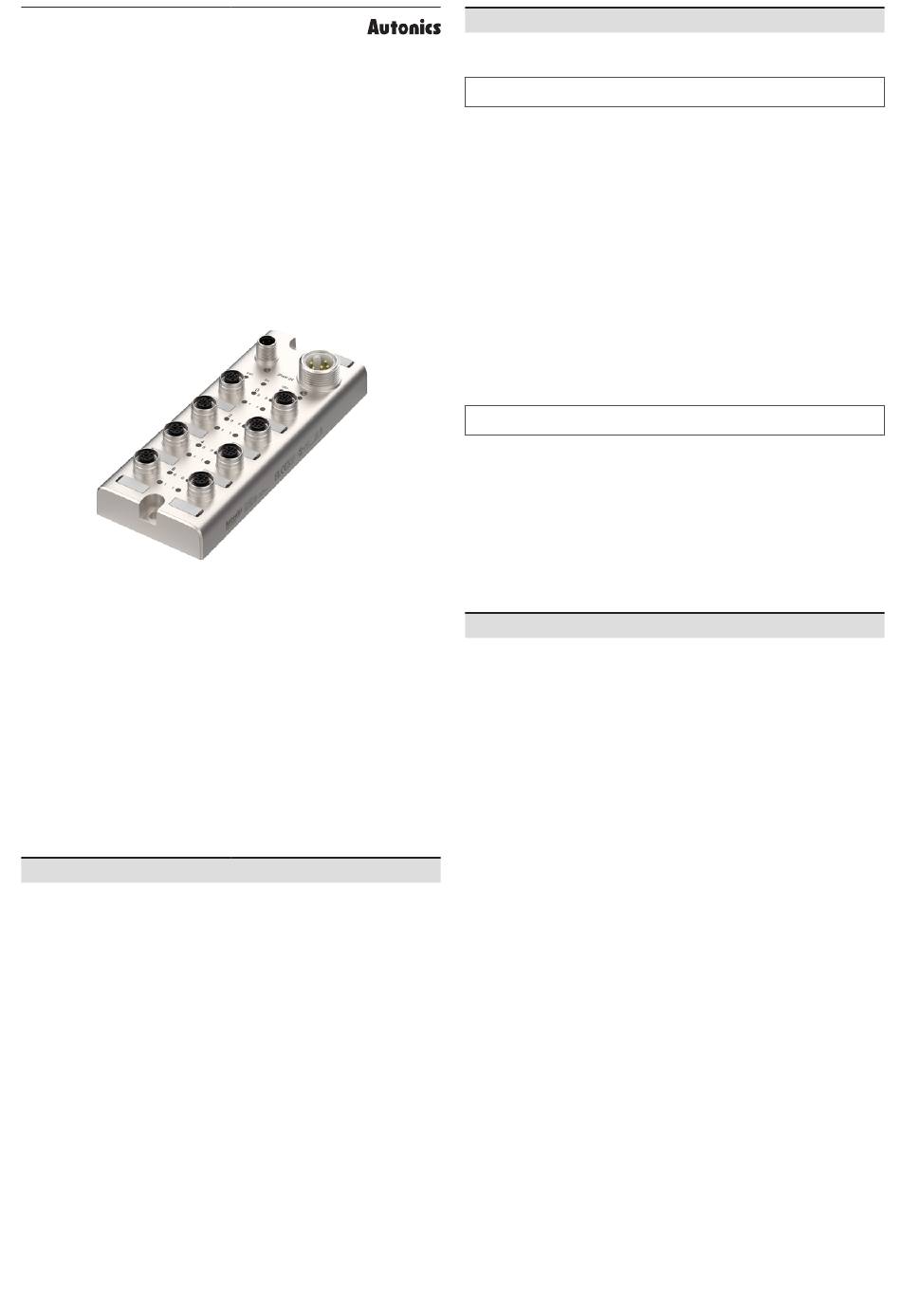

ADIO Series
PRODUCT MANUAL
For your safety, read and follow the considerations written in the instruction
manual, other manuals and Autonics website.
The specifications, dimensions, etc. are subject to change without notice for product
improvement. Some models may be discontinued without notice.
Features
• Upper level communication protocol: IO-Link ver. 1.1 (port class: Class A)
• Housing material: Zinc die casting
• Protection rating: IP67, IP69K
• I/O port setting and status monitoring
(cable short circuit and connection status, etc.)
ᜢ ᜽ ᜨ ᜣ ᜬ
Safety Considerations
• Observe all 'Safety Considerations' for safe and proper operation to avoid hazards.
• ᜸ symbol indicates caution due to special circumstances in which hazards may occur.
᜸ Warning
Failure to follow instructions may result in serious injury or death.
01. Fail-safe device must be installed when using the unit with machinery
that may cause serious injury or substantial economic loss.(e.g. nuclear
power control, medical equipment, ships, vehicles, railways, aircraft,
combustion apparatus, safety equipment, crime/disaster prevention
devices, etc.)
Failure to follow this instruction may result in personal injury, economic loss or
fire.
02. Do not use the unit in the place where flammable/explosive/corrosive
gas, high humidity, direct sunlight, radiant heat, vibration, impact or
salinity may be present.
Failure to follow this instruction may result in explosion or fire.
03. Do not connect, repair, or inspect the unit while connected to a power
source.
Failure to follow this instruction may result in fire.
04. Check 'Connections' before wiring.
Failure to follow this instruction may result in fire.
05. Do not disassemble or modify the unit.
Failure to follow this instruction may result in fire.
06. Do not touch the product during operation or for a certain period of time
after stopping.
Failure to follow this instruction may result in burn.
᜸ Caution
Failure to follow instructions may result in injury or product damage.
01. Use the unit within the rated specifications.
Failure to follow this instruction may result in fire or shortening the life cycle of the
product.
02. Use a dry cloth to clean the unit, and do not use water or organic solvent.
Failure to follow this instruction may result in fire.
03. Keep the product away from metal chip, dust, and wire residue which flow
into the unit.
Failure to follow this instruction may result in fire or product damage.
04. Connect the cable correctly and prevent poor contact.
Failure to follow this instruction may result in fire or product damage.
05. Do not connect or cut off the wire of the cable while operating the unit.
Failure to follow this instruction may result in fire or product damage.
Cautions during Use
• Follow instructions in 'Cautions during Use' .
Otherwise, it may cause unexpected accidents.
• The UA power (actuator power) and US power (sensor power) should be insulated by
the individually isolated power device.
• Power supply should be insulated and limited voltage/current or Class 2, SELV power
supply device.
• Use the rated standard cables and connectors. Do not apply excessive power when
connecting or disconnecting the connectors of the product.
• Keep away from high voltage lines or power lines to prevent inductive noise.
In case installing power line and input signal line closely, use line filter or varistor at
power line and shielded wire at input signal line.
For stable operation, use shield wire and ferrite core, when wiring communication
wire, power wire, or signal wire.
• Do not use near the equipment which generates strong magnetic force or high
frequency noise.
• Do not connect, or remove this unit while connected to a power source.
• This unit may be used in the following environments.
- Indoors (in the environment condition rated in 'Specifications')
- Altitude max. 2,000 m
- Pollution degree 2
- Installation category II

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADIO Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Autonics ADIO Series

  • Page 1 For your safety, read and follow the considerations written in the instruction In case installing power line and input signal line closely, use line filter or varistor at manual, other manuals and Autonics website. power line and shielded wire at input signal line.
  • Page 2: Ordering Information

    Software 1. Hardware installation ADIO IO-Link Master Product Manual, Mounting and grounding, → Download the installation file and the manuals from the Autonics website. ADIO IO-Link Hub Product Manual connecting the ports ■ atIOLink 2. Power supply The Port and Device Configuration Tool (PDCT) software, atIOLink, is designed for IO-Link master: Connecting the power configuring, diagnosing, and maintaining IO-Link devices using an IODD file.
  • Page 3: Unit Descriptions

    -|Transparent Guide|- Unit Descriptions Dimensions • Unit: mm, For the detailed dimensions of the product, follow the Autonics website. ■ Digital input/output type 33.4 M4 X 0.7 8.35 7 to 10 29.6 01. Grounding hole 02. Mounting hole 03. Insertion part for the name plate 04.
  • Page 4: Installation And Grounding

    -|Transparent Guide|- Installation and Grounding Connections ■ Mounting Make sure that the total power consumption of the ADIO hub does not ᜸ exceed a maximum of 9 A, and be sure to use the provided waterproof 01. Prepare a flat or metal panel in the enclosure. covers for any unused standard I/O ports.
  • Page 5: Specifications

    Digital input type Process data output (PD Out.): N.A Data storage IODD file Download the IODD file from the Autonics website IO-Link Interface and System Specification Version 1.1.2 Standard IO-Link Test Specification Version 1.1.2 01) The process data input: IO-Link hub → IO-Link master...
  • Page 6 Data length Data type Value / Range 0x00 (0) Vendor ID 1 (MSB) 2-byte UINT8 0x0383 (899) = Autonics Corporation Vendor ID 2 (LSB) Device ID 1 (MSB) 3-byte UINT8 0x30001 (196609) = ADIO-IL-MA08CAN-HUB3 0x30002 (196610) = ADIO-IL-MA08CAP-HUB3 Device ID 2...
  • Page 7 -|Transparent Guide|- IO-Link: Configuration of Parameter Data You can read or configure the parameter data for the ADIO hubs. Before configuring the ADIO hubs, check the supported parameters depending on the product type you are using. • atIOLink: click the Master PORT no. tab > Parameters tab > Parameter Menu ■...
  • Page 8 -|Transparent Guide|- ■ Direction - Pin 4 / Pin 2 ■ Input filter - Pin 4 / Pin 2 You can select the digital input or output source pin (Pin 2 / Pin 4) for each port. If Pin 2 or Pin 4 is configured in the digital input mode for each port, you can set the filter Subindex 0 allows you to access the digital I/O mode for all ports, while the sub-indices time for each input source pin.
  • Page 9 -|Transparent Guide|- IO-Link: Diagnostic Information You can see the diagnostic information for the ADIO hub. Before configuring the ADIO hubs, check the supported parameters depending on the product type you are using. • atIOLink: Click the Master PORT no. tab > Parameters tab > Diagnosis Menu ■...
  • Page 10 -|Transparent Guide|- ■ Actuator warning When you have configured Pin 2 and Pin 4 in the digital output mode on the standard I/O ports, but an external input occurs on those pins, it triggers an actuator warning. [E.g.] When the standard I/O port is set to the digital output mode, if 24 VDCᜡ is detected on the output source pin caused by a short circuit or an external voltage, the actuator warning is displayed.
  • Page 11 -|Transparent Guide|- IO-Link: Event and Error Monitoring You can monitor the event and error history of the ADIO hub. Before configuring the ADIO hubs, check the supported event and error codes depending on the product type you are using. • atIOLink: Click the Master PORT no. tab > Events tab ■...
  • Page 12 Port 1 Port 0 Switchstate P□ - Pin 2 Byte 1 Port 7 Port 6 Port 5 Port 4 Port 3 Port 2 Port 1 Port 0 18, Bansong-ro 513Beon-gil, Haeundae-gu, Busan, Republic of Korea, 48002 www.autonics.com | +82-2-2048-1577 | sales@autonics.com...
