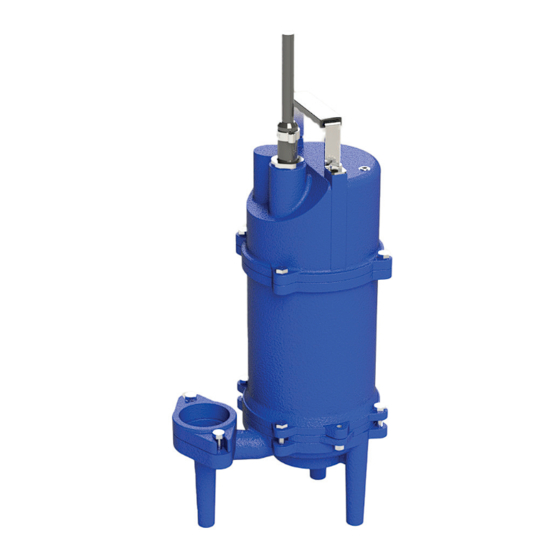

Submersible grinder pump
2 hp, 3450 rpm, 60 hz.
1.1hp (.9kw) 2850 rpm, 50 hz
high-flow and high-head (20 pages)
Summary of Contents for Crane BARNES RIVAL RV101A
Page 1
Read all instructions in this manual before operating pump. As a result of Crane Pumps & Systems, Inc., constant product improvement program, product changes may occur. As such Crane Pumps & Systems reserves the right to change product without prior written notification. A Crane Co. Company...
Other brand and product names are trademarks or registered trademarks of their respective holders. ® Barnes is a registered trademark of Crane Pumps & Systems Inc. 4/07 Alteration Rights Reserved...
Page 3
USER GUIDE USER GUIDE The grinder pump generates sufficient pressure Congratulations on to pump this slurry from your home to the your purchase of a Barnes Rival grinder pump wastewater plant. system. With proper care and by following a Power Failure few simple guidelines your grinder pump will give you many years of dependable service.
LEVEL “A” PUMP SPECIFICATIONS: DISCHARGE ..........2” NPT CORD ENTRY ......... 20 ft. LIQUID TEMPERATURE ......104°F (40°C) Continuous CORD Manual ......CSA/UL Approved, 14/3 Type VOLUTE ............. Cast Iron ASTM A-48, Class 30 SJTOW MOTOR HOUSING ........Cast Iron ASTM A-48, Class 30 UPPER BEARING: SEAL PLATE ..........
For the location of the nearest Barnes Service Center, check 3) If a higher pump differential is needed, grip the cord your Barnes representative or Crane Pumps & Systems, Inc. 5.83 near the neck of the float, then using the other hand,...
Overload Protection: Single Phase - The type of in-winding overload protector used is referred to as an inherent overheating protector and operates on the combined effect of temperature and current. This means that the overload protector will trip out and shut the pump off if the windings become too hot, or the load current passing through them becomes too high.
ORDERING REPLACEMENT PARTS: When ordering replacement parts, ALWAYS furnish the following information: 1. Pump Part Number 2. Pump model number 3. Pump date code °C °C °C °C Part Number: The part number consists of a six (6) digit number, which appears in the catalog.
TROUBLE SHOOTING CAUTION ! Always disconnect the pump from the electrical power source before handling. If the system fails to operate properly, carefully read instructions and perform maintenance recommendations. If operating problems persist, the following chart may be of assistance in identifying and correcting them: MATCH “CAUSE”...
Crane Pumps & Systems, Inc. Distributor. RETURNED GOODS RETURN OF MERCHANDISE REQUIRES A “RETURNED GOODS AUTHORIZATION”. CONTACT YOUR LOCAL CRANE PUMPS & SYSTEMS, INC. DISTRIBUTOR. Products Returned Must Be Cleaned, Sanitized, Or Decontaminated As Necessary Prior To Shipment, To Insure That Employees Will Not Be Exposed To Health Hazards In Handling Said Material.
