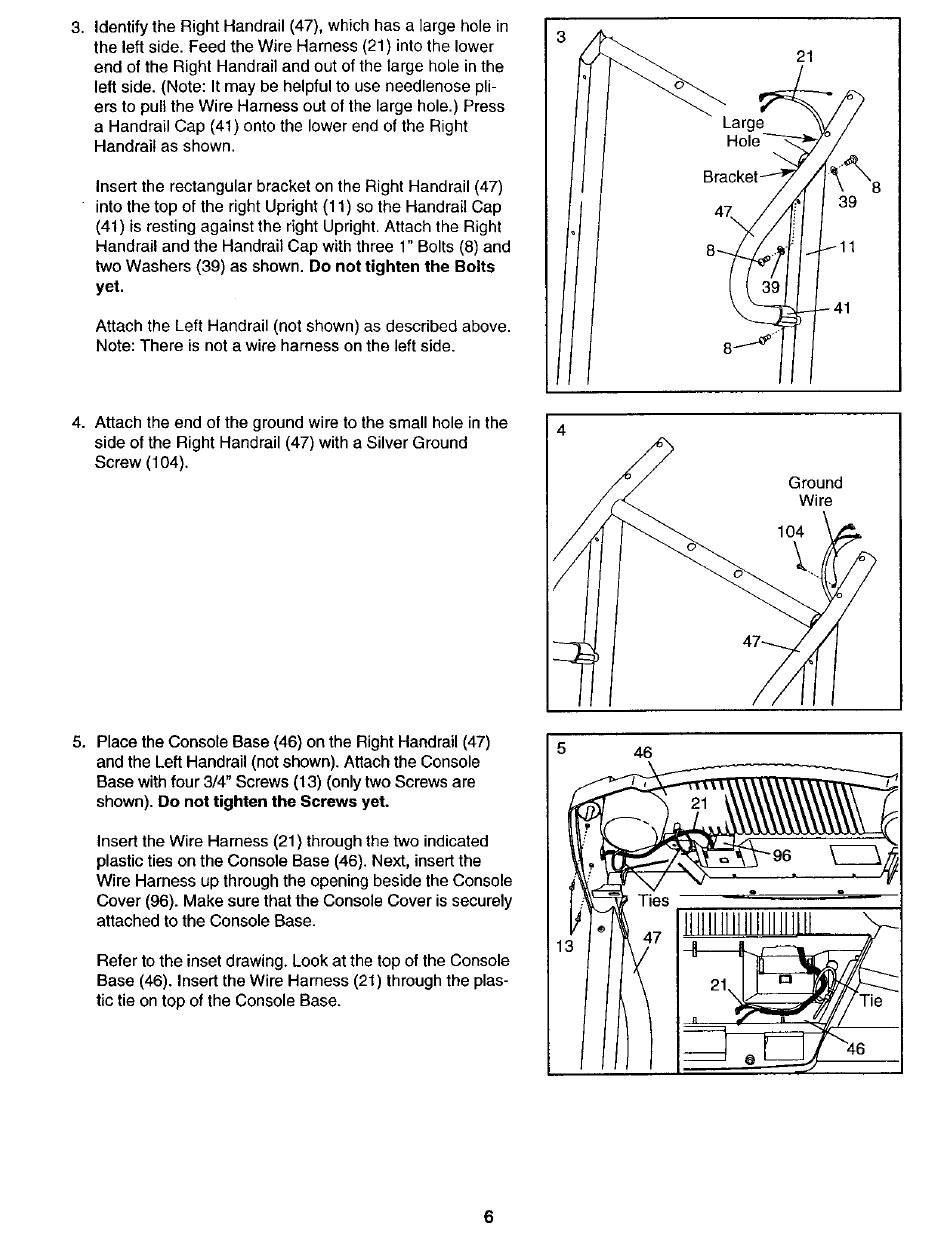

3. Identify the Right Handrail (47), which has a large hole in
the left side. Feed the Wire Harness (21) into the lower
end of the Right Handrail and out of the large hole in the
left side. (Note: It may be helpful to use needlenose pli-
ers to pull the Wire Harness out of the large hole.) Press
a Handrail Cap (4t) onto the lower end of the Right
Handrail as shown.
Insert the rectangular bracket on the Right Handrail (47)
into the top of the right Upright (11) so the Handrail Cap
(41) is resting against the right Upright. Attach the Right
Handrail and the Handrail Cap with three 1" Bolts (8) and
two Washers (39) as shown. Do not tighten the Bolts
yet.
Attach the Left Handrail (not shown) as described above.
Note: There is not a wire harness on the left side.
Large
21
39
_11
4. Attach the end of the ground wire to the small hole in the
side of the Right Handrail (47) with a Silver Ground
Screw (104).
Ground
Wire
104
5. Place the Console Base (46) on the Right Handrail (47)
and the Left Handrail (not shown). Attach the Console
Base with four 3/4" Screws (13) (only two Screws are
shown). Do not tighten the Screws yet.
Insert the Wire Harness (21) through the two indicated
plastic ties on the Console Base (46). Next, insert the
Wire Harness up through the opening beside the Console
Cover (96). Make sure that the Console Cover is securely
attached to the Console Base.
Refer to the inset drawing. Look at the top of the Console
Base (46). Insert the Wire Harness (21) through the plas-
tic tie on top of the Console Base.
46
IIIIIIIIIIIIIIIIIIIIII
Tie
6
