EtherWAN EL1032T Series Installation Manual

1

Unpacking

Open the carton and unpack the items. Your package
should include an EL1032T media converter and this
Quick Install Guide. If items are missing or damaged,
notify your EtherWAN representative.
Download the full manual at:
https://www.etherwan.com
2

Select Installation Location

Place the equipment where it will not be subjected to
extreme temperatures, humidity, or electromagnetic
interference. Specifically, the site you select should
meet the following requirements:
▪
The ambient temperature should be between -10
and 60 degrees Celsius (14 to 140 degrees
Fahrenheit).
▪
The relative humidity should be less than 95
percent, non-condensing.
▪
Make sure that the equipment receives adequate
ventilation. Do not block the ventilation holes on
each side of the equipment.
Page 1
W70G-EL1032TQ1
EL1032T Series | Media Converter
3

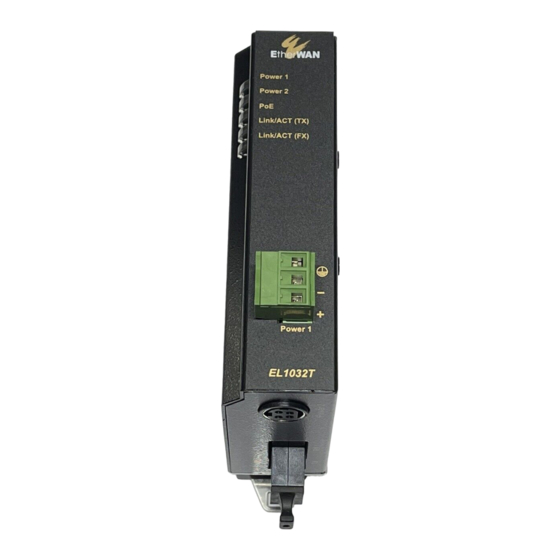

Connect Power

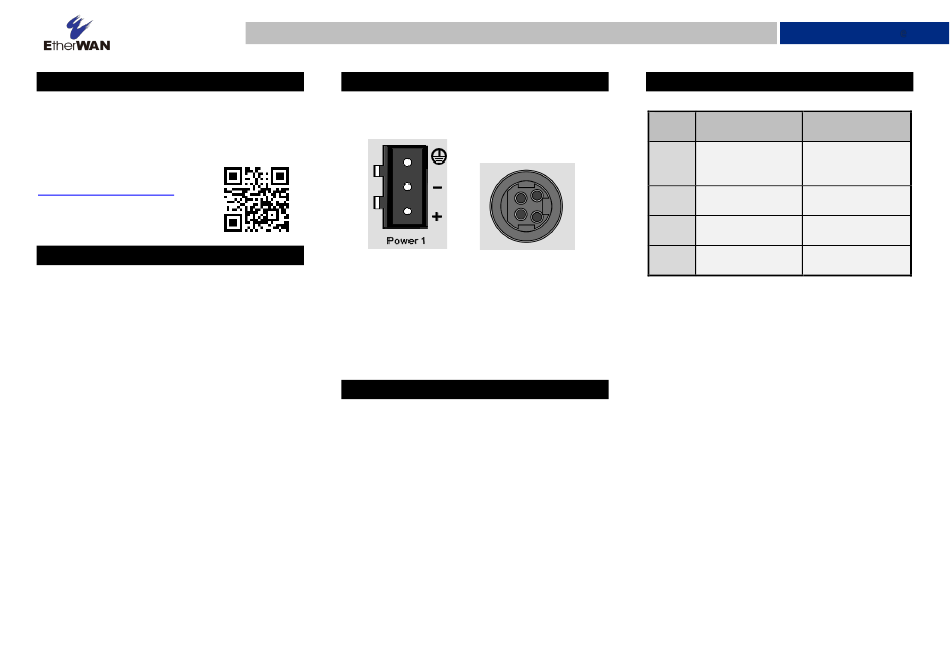

There are two power inputs for this device, a 3-pin
terminal block and a 4-pin latched DC jack.
Input voltage on the terminal block is:
48~52VDC for IEEE802.3af (15.4W)
52~57VDC for IEEE802.3at
Input voltage for latched DC jack is:
48VDC +/- 10%
4

Ports and Port Settings

The converter provides one TX port and one FX port.
The TX port uses RJ-45 connector.
Port settings are made by means of a DIP (Dual Inline
Package) switch at the rear panel of the module.
Copyright 2023 EtherWAN Systems, Inc. All Rights Reserved 03/27/2023
Installation Guide
5

DIP Switch Settings

DIP
ON
Switch
Enable auto
Enable forced
1 negotiation for TX
mode for TX port
port
TX port forced to TX port forced to
2
10Mbps 100Mbps
TX port forced to TX port forced to
3
half duplex mode full duplex mode
Enable Link-Fault- Disable Link-Fault-
4
pass-Through pass-Through
* LFPT=Link Fault Pass Through
Link-Fault-Pass-Through allows network operators to
stay aware of network connection status. If a link fails,
the function will disable the link on the other side,
therefore notifying the connected device of the link
failure.
OFF
