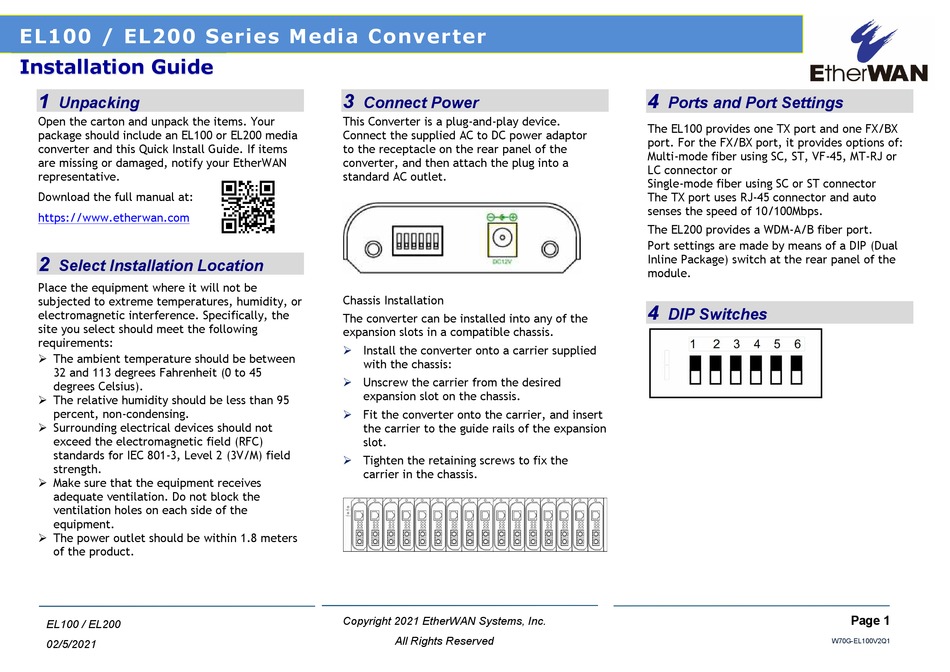

EtherWAN EL100 Series Installation Manual

EL100 / EL200 Series Media Converter
Installation Guide
1
Unpacking
Open the carton and unpack the items. Your
package should include an EL100 or EL200 media
converter and this Quick Install Guide. If items
are missing or damaged, notify your EtherWAN
representative.
Download the full manual at:
https://www.etherwan.com
2
Select Installation Location
Place the equipment where it will not be
subjected to extreme temperatures, humidity, or
electromagnetic interference. Specifically, the
site you select should meet the following
requirements:
 The ambient temperature should be between
32 and 113 degrees Fahrenheit (0 to 45
degrees Celsius).
 The relative humidity should be less than 95
percent, non-condensing.
 Surrounding electrical devices should not
exceed the electromagnetic field (RFC)
standards for IEC 801-3, Level 2 (3V/M) field
strength.
 Make sure that the equipment receives
adequate ventilation. Do not block the
ventilation holes on each side of the
equipment.
 The power outlet should be within 1.8 meters
of the product.
EL100 / EL200
02/5/2021
3
Connect Power
This Converter is a plug-and-play device.
Connect the supplied AC to DC power adaptor
to the receptacle on the rear panel of the
converter, and then attach the plug into a
standard AC outlet.
Chassis Installation
The converter can be installed into any of the
expansion slots in a compatible chassis.
 Install the converter onto a carrier supplied
with the chassis:
 Unscrew the carrier from the desired
expansion slot on the chassis.
 Fit the converter onto the carrier, and insert
the carrier to the guide rails of the expansion
slot.
 Tighten the retaining screws to fix the
carrier in the chassis.
Copyright 2021 EtherWAN Systems, Inc.
All Rights Reserved
4
Ports and Port Settings

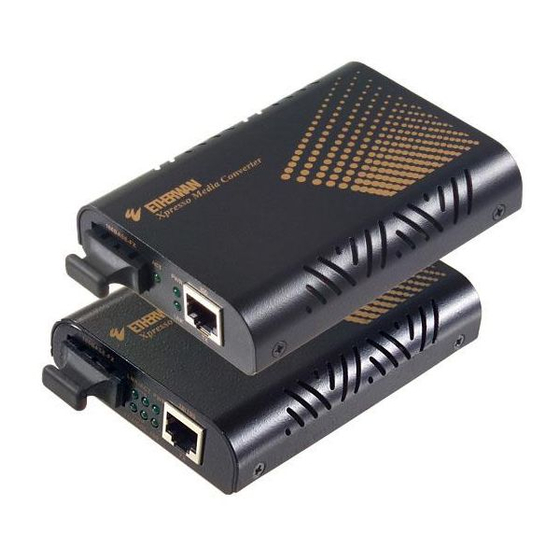

The EL100 provides one TX port and one FX/BX
port. For the FX/BX port, it provides options of:
Multi-mode fiber using SC, ST, VF-45, MT-RJ or
LC connector or
Single-mode fiber using SC or ST connector
The TX port uses RJ-45 connector and auto
senses the speed of 10/100Mbps.
The EL200 provides a WDM-A/B fiber port.
Port settings are made by means of a DIP (Dual
Inline Package) switch at the rear panel of the
module.
4
DIP Switches
