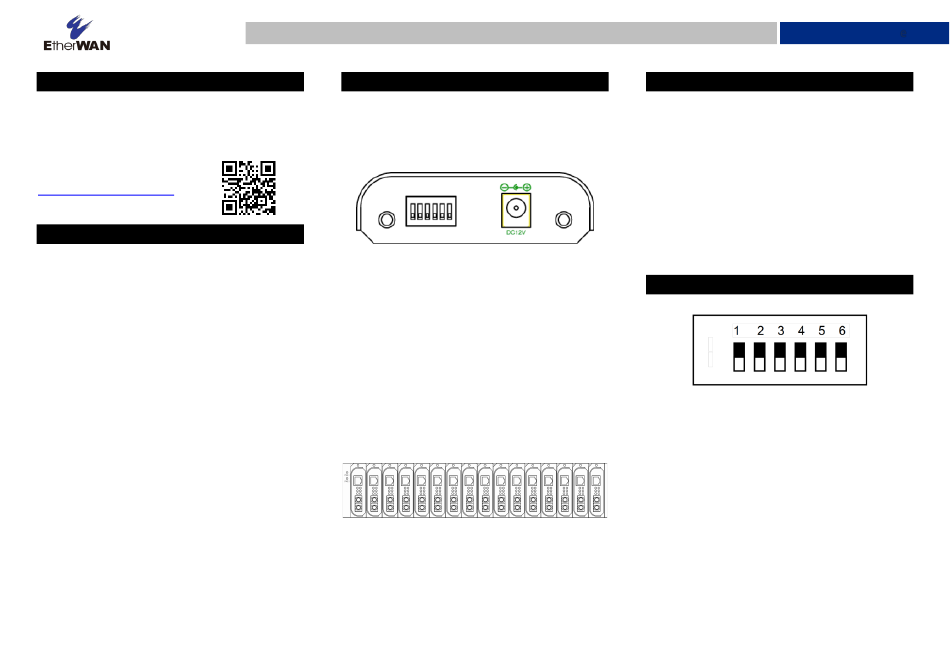

Unpacking
Open the carton and unpack the items. Your package

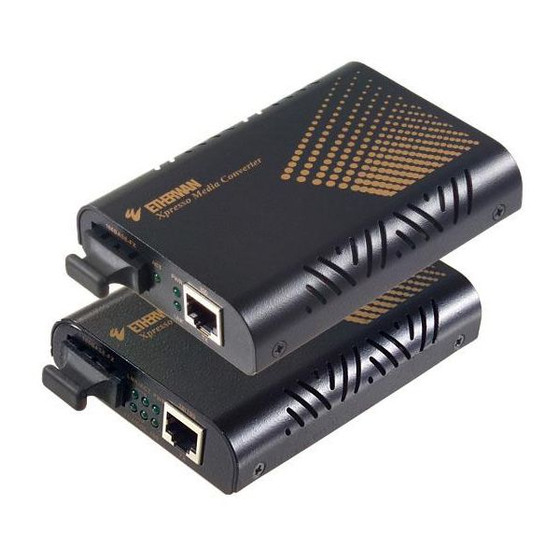

should include an EL100 or EL200 media converter and
this Quick Install Guide. If items are missing or
damaged, notify your EtherWAN representative.
Download the full manual at:
https://www.etherwan.com
2
Select Installation Location
Place the equipment where it will not be subjected to
extreme temperatures, humidity, or electromagnetic
interference. Specifically, the site you select should
meet the following requirements:
▪
The ambient temperature should be between 32
and 113 degrees Fahrenheit (0 to 45 degrees
Celsius).
▪
The relative humidity should be less than 95
percent, non-condensing.
▪
Surrounding electrical devices should not exceed
the electromagnetic field (RFC) standards for IEC
801-3, Level 2 (3V/M) field strength.
▪
Make sure that the equipment receives adequate
ventilation. Do not block the ventilation holes on
each side of the equipment.
▪
The power outlet should be within 1.8 meters of
the product.
Page 1
W70G-EL100V2Q2
EL100 / 200 Series | Media Converter
3
Connect Power
This Converter is a plug-and-play device. Connect
the supplied AC to DC power adaptor to the
receptacle on the rear panel of the converter, and
then attach the plug into a standard AC outlet.
Chassis Installation
The converter can be installed into any of the
expansion slots in a compatible chassis.
▪
Install the converter onto a carrier supplied with
the chassis:
▪
Unscrew the carrier from the desired expansion
slot on the chassis.
▪
Fit the converter onto the carrier, and insert the
carrier to the guide rails of the expansion slot.
▪
Tighten the retaining screws to fix the carrier in
the chassis.
Copyright 2023 EtherWAN Systems, Inc. All Rights Reserved 04/30/2023
Installation Guide
4
Ports and Port Settings
The EL100 provides one TX port and one FX/BX port.
For the FX/BX port, it provides options of:
Multi-mode fiber using SC, ST, VF-45, MT-RJ or LC
connector or
Single-mode fiber using SC or ST connector
The TX port uses RJ-45 connector and auto senses the
speed of 10/100Mbps.
The EL200 provides a WDM-A/B fiber port.
Port settings are made by means of a DIP (Dual Inline
Package) switch at the rear panel of the module.
5
DIP Switches
