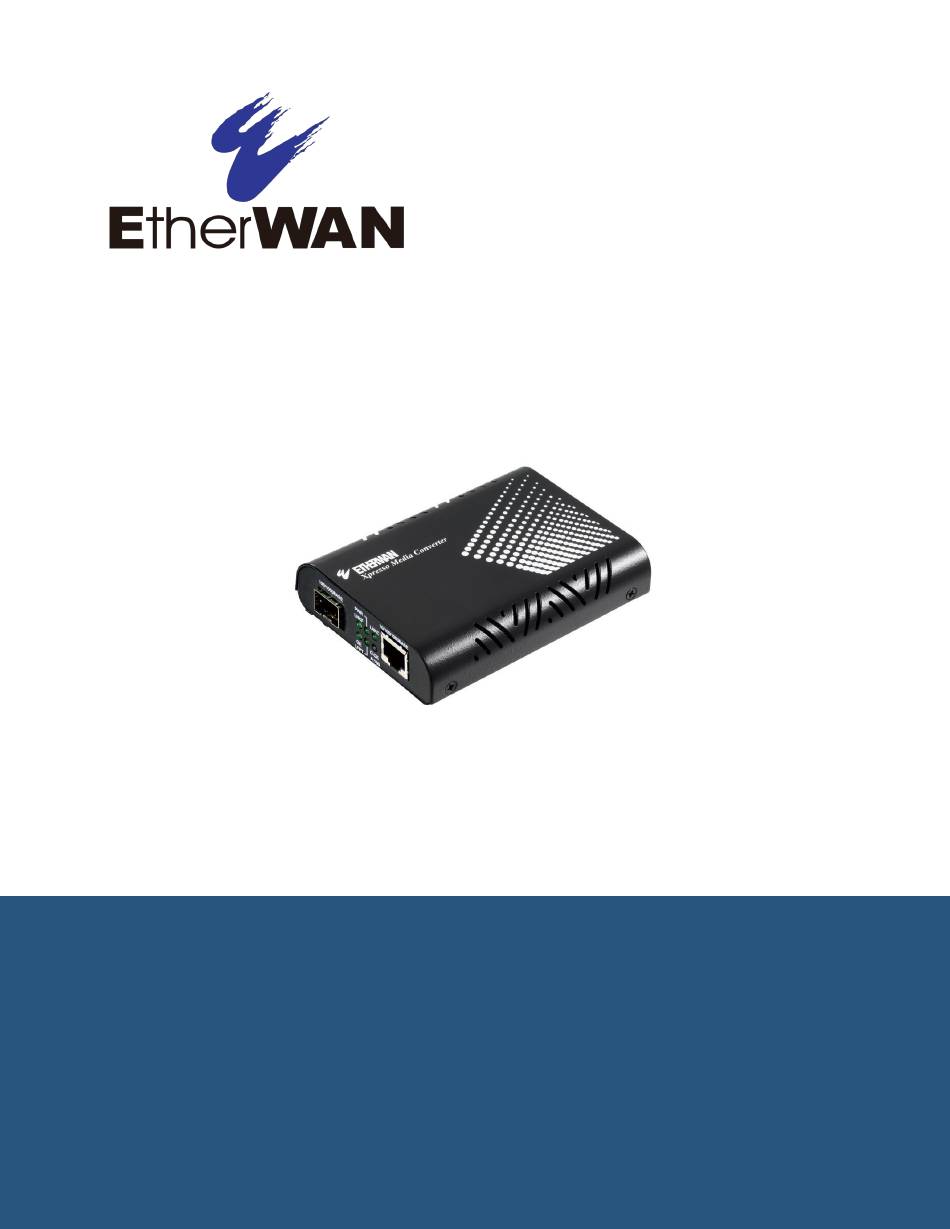

- Page 1 EL2315 10/100/1000BASE-TX to 100/1000BASE-X Dual Rate SFP Media Converter User’s Guide...
- Page 2 Violators are liable for damages. All rights reserved, for the purposes of patent application or trademark registration. Disclaimer of Liability The information contained in this document is subject to change without notice. EtherWAN is not liable for any errors or omissions contained herein or for resulting damage in connection with the information provided in this manual.
- Page 3 Preface Audience This guide is designed for the person who installs, configures, deploys, and maintains the Ethernet network. This document assumes the reader has moderate hardware, computer, and Internet skills. Document Revision Level This section provides a history of the revision changes to this document. Revision Document Version Date...
- Page 4 Contents Preface ........................iii Safety and Warnings ....................iii Contents ........................iv Introduction ......................5 Unpacking ......................... 5 Select Installation Location ..................5 Connect Power ......................7 Ports and Port Settings ....................7 LED Indicators ......................8 DIP Switches ......................9 Link Fault Pass Through (LFPT) ................
- Page 5 EL2211 supports Jumbo Frames up to 16K bytes. Unpacking Open the carton and unpack the items. Your package should include an EL2315 dual rate SFP media converter and a power adaptor. If items are missing or damaged, notify your EtherWAN representative.
- Page 6 Chassis Installation The converter can be installed into any of the expansion slots in a compatible chassis. • Install the converter onto a carrier supplied with the chassis. • Unscrew the carrier from the desired expansion slot on the chassis. •...
- Page 7 Ensure to connect the power cord to a socket-outlet with earthing connection if supplied by Class I power supply or power source. Ports and Port Settings The EL2315 provides one 10/100/1000BASE TX port and one 100/1000BASE SFP port. This device complies with IEEE802.3 10Base-Te, IEEE802.3u 100Base-TX/FX, IEEE802.3ab 1000Base-T, and IEEE802.3z 1000Base-SX/LX standards.
- Page 8 LED Indicators State Indication Steady Power on Power off Steady LFPT function enabled LFPT LFPT function disabled Copper valid network connection Steady established LNKC Flashing Transmitting or receiving data No connection Green: Copper Connection at 1000Mbps Steady G:GE Amber: Copper Connection at A:100 100Mbps Copper Connection at 10Mbps...
- Page 9 DIP Switches There are six pins on the DIP switch for port settings. Refer to the table below for details. DIP Switch Down Disable LFPT Enable LFPT (link-fault-pass-through) Enable auto negotiation for TX port Enable forced mode for TX port TX port forced to full duplex mode TX port forced to half duplex mode TX port forced to 100Mbps...
- Page 10 Specifications IEEE 802.3 10BASE-Te IEEE 802.3u 100BASE-TX/100BASE-FX Applicable standards IEEE 802.3ab 1000BASE-T IEEE 802.3z 1000BASE-SX/1000BASE-LX IEEE 802.3x Full duplex and flow control 10/100/1000BASE-TX: 1 port Fixed ports 100/1000BASE SFP Slot: 1 port Switching Method Store-and-Forward mode or converter mode 14,880pps for 10Mbps Forwardi and filtering rate 148,810pps for 100Mbps 1,488,100pps for 1000Mbps...
- Page 11 Email: info@etherwan.com Email: info@etherwan.com.tw EtherWAN has made a good faith effort to ensure the accuracy of the information in this document and disclaims the implied warranties of merchantability and fitness for a particular purpose, and makes no express warranties, except as may be stated in its written agreement with and for its customers.
