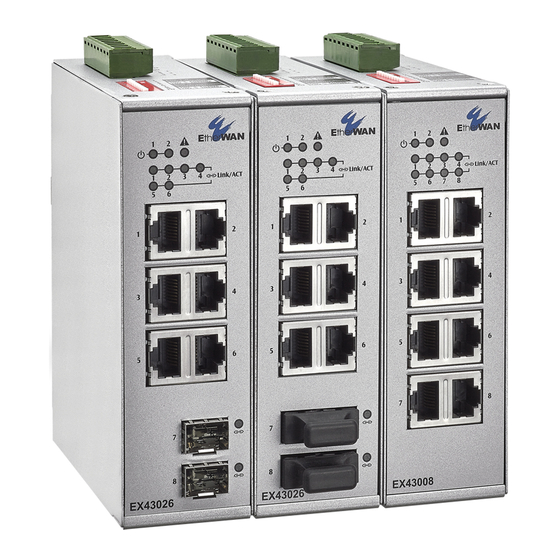

EtherWAN EX43000 Series Installation Manual

1 Unpacking
Open the carton and unpack the items. Your package
should include:
▪
One EX43000 Switch
▪
DIN rail mounting kit
If any items are missing or damaged, notify your
EtherWAN representative. If possible, save the carton
and packing material in case you need to ship or store
the switch in the future.
2 Equipment Needed
▪
Category 5 or better cable for RJ-45 ports
▪
Appropriate fiber cable for fiber ports
3 Select a Location
▪
Installation: DIN rail. Place the device on the DIN
rail from above using the slot. Push the front of
the device toward the mounting surface until it
audibly snaps into place.
▪
Choose a dry area with ambient temperature
between -20°C and 60°C (-4°F and 140°F).
▪
Keep away from heat sources, sunlight, warm air
exhausts, hot-air vents, and heaters.
▪
Be sure there is adequate airflow.
4 Connect to the Data Ports
Depending on the model, your switch can have the
following ports:
▪
4, 6, or 8 10/100Base-TX ports
▪
0, 1, 2, or 4 100Base-FX ports

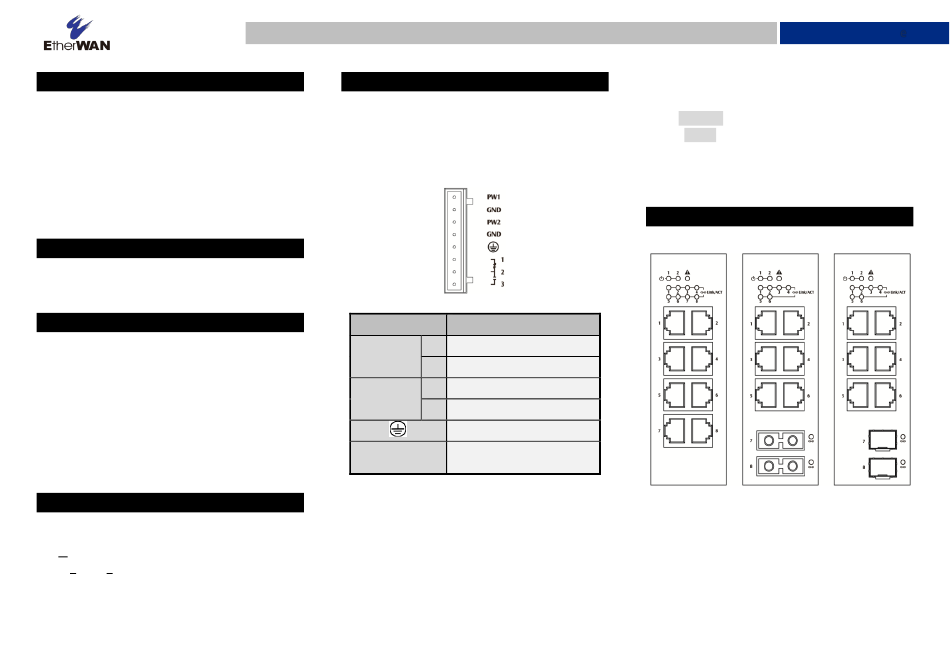

W70G-EX43000Q1 Page 1
EX43000 Series | Industrial Unmanaged Switch
5 Connect Power
Terminal Block
The switch provides two power inputs on a 12-48VDC
terminal block. Only one power input is required to
operate the switch. The terminal block has 5 terminal
posts.
Pin
+
Power 2
−
+
Power 1
−
Relay Output
Rating
Power Failure Alarm
There are three pins on the terminal block are used for
power failure detection. It provides the normally open
or closed output when the power source is active. Use
this as a dry contact application to send a signal for
power failure detection.
Copyright 2023 EtherWAN Systems, Inc. All Rights Reserved 02/02/2023
Description
12-48VDC
Power Ground
12-48VDC
Power Ground
Earth Ground
0.6A @ 30VDC
Installation Guide
Power-Up Sequence
When the switch is powered up:
▪
All Link/ACT LEDs blink momentarily.
▪
The Power LED lights up and stays lit.
▪
LEDs for every port connected to a device will
flash, as the switch conducts a brief Power On Self-
Test (POST).
6 LED Indicators
