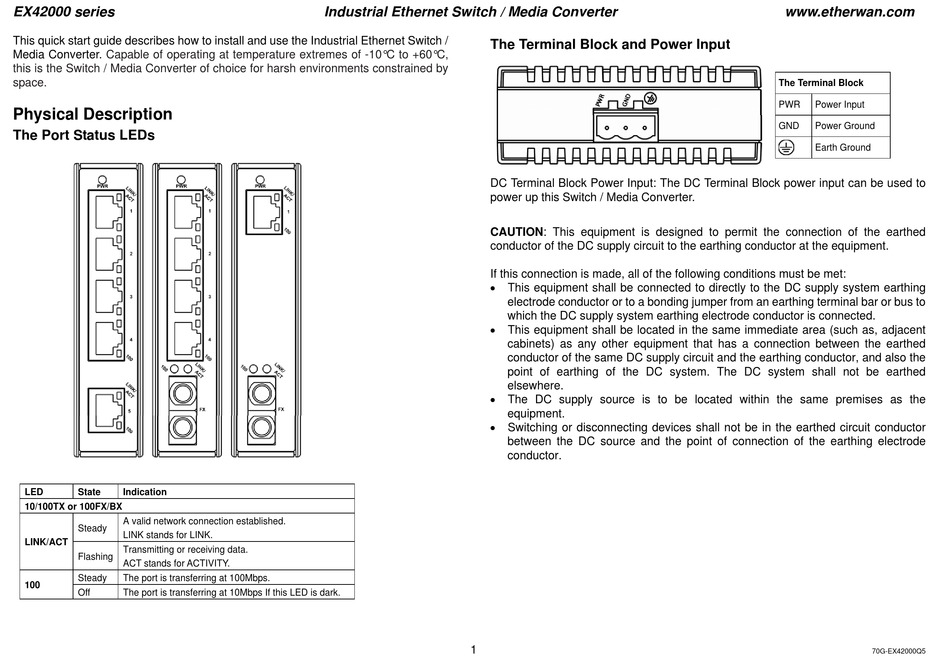

EtherWAN EX42000 Series Quick Start Manual

EX42000 series

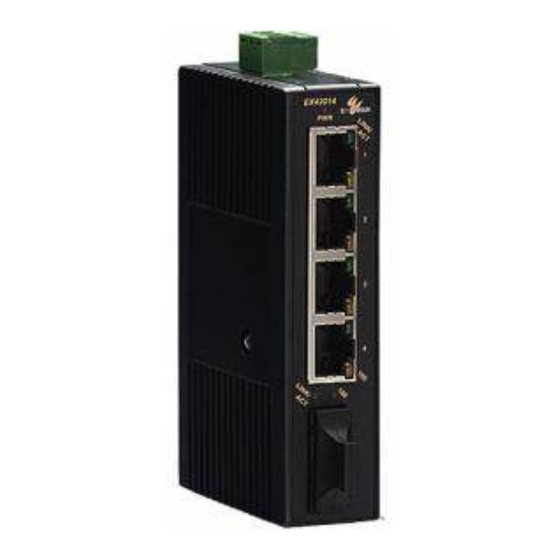

This quick start guide describes how to install and use the Industrial Ethernet Switch /
Media Converter. Capable of operating at temperature extremes of -10°C to +60°C,
this is the Switch / Media Converter of choice for harsh environments constrained by
space.

Physical Description

The Port Status LEDs
LED State Indication
10/100TX or 100FX/BX
A valid network connection established.
Steady
LINK stands for LINK.
LINK/ACT
Transmitting or receiving data.
Flashing
ACT stands for ACTIVITY.
Steady The port is transferring at 100Mbps.
100
Off The port is transferring at 10Mbps If this LED is dark.
Industrial Ethernet Switch / Media Converter
The Terminal Block and Power Input
DC Terminal Block Power Input: The DC Terminal Block power input can be used to
power up this Switch / Media Converter.
CAUTION: This equipment is designed to permit the connection of the earthed
conductor of the DC supply circuit to the earthing conductor at the equipment.
If this connection is made, all of the following conditions must be met:
 This equipment shall be connected to directly to the DC supply system earthing
 This equipment shall be located in the same immediate area (such as, adjacent
 The DC supply source is to be located within the same premises as the
 Switching or disconnecting devices shall not be in the earthed circuit conductor
1
electrode conductor or to a bonding jumper from an earthing terminal bar or bus to
which the DC supply system earthing electrode conductor is connected.
cabinets) as any other equipment that has a connection between the earthed
conductor of the same DC supply circuit and the earthing conductor, and also the
point of earthing of the DC system. The DC system shall not be earthed
elsewhere.
equipment.
between the DC source and the point of connection of the earthing electrode
conductor.
www.etherwan.com
The Terminal Block
PWR Power Input
GND Power Ground
Earth Ground
70G-EX42000Q5
