Page 1

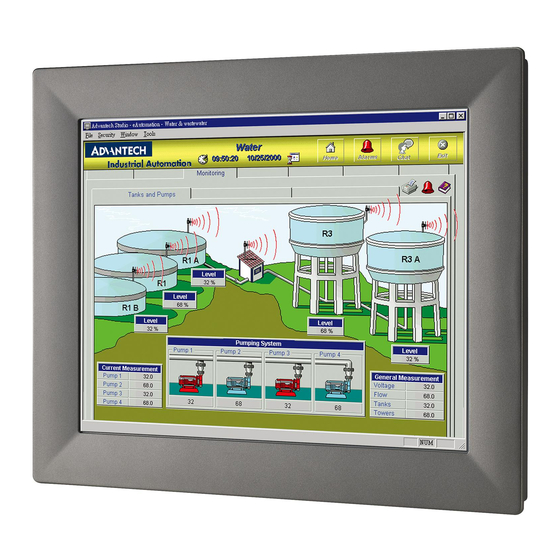

User Manual TPC-1282T/1582H/ TPC-1782H Intel 4 Generation Core i Computer...
Page 2
No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. How- ever, Advantech Co., Ltd.
Page 3
Because of Advantech’s high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If an Advantech product is defec- tive, it will be repaired or replaced at no charge during the warranty period. For out- of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight.
Page 4
This product has passed the CE test for environmental specifications when shielded cables are used for external wiring. We recommend the use of shielded cables. This kind of cable is available from Advantech. Please contact your local supplier for ordering information.
Page 5
The sound pressure level at the operator's position according to IEC 704-1:1982 is no more than 70 dB (A). DISCLAIMER: This set of instructions is given according to IEC 704-1. Advantech disclaims all responsibility for the accuracy of any statements contained herein.
Page 6
Attention! Danger d'explosion si la pile est remplacée de façon incorrecte. Rem- placez seulement avec le même type ou équivalent recommandé par le fabricant. Dispose des piles usagées selon les instructions du fabricant. TPC-1282T/TPC-1582H/TPC-1782H User Manual...
5-wire resistive touch. It also includes PCIe slot and Mini-pcie slots to extend the functionality and meet a variety of automation applications needs. Through the Mini- PCIe slot, Advantech iDoor technology can provide more I/O connectors, Isolated Digital IO, the Fieldbus Protocol, 3G/GPS/GPRS/WiFi Communication and MRAM. A 2nd monitor and speaker can be attached via the integrated HDMI and Audio port.
Cooling System: Fanless design Dimensions TPC-1282T: 311.8 x 238 x 77.2 mm (12.28" x 9.38" x 3.04") TPC-1582H: 383 x 307 x 78.5 mm (15.08" x 12.09" x 3.09") TPC-1782H: 414 x 347.5 x 84 mm (16.3" x 13.68" x 3.31") ...
Weight: 3.2kg Dimensions ( W x H x D): 311.8±0.7 x 238±0.7 x 77.2±1.5mm (12.28" x 9.38" x 3.04") Cutout:303±0.7 x 229±0.7 mm (11.93" x 9.02") 2-30 186.3 2-150 227.6 Figure 1.2 TPC-1282T Dimensions TPC-1282T/TPC-1582H/TPC-1782H User Manual...
1.5.2 TPC-1582H Weight: 5.5kg Dimensions (W x H x D): 383.0±0.7 x 307.0±0.7 x 78.5±1.5 mm (15.08" x 12.09" x 3.09") Cutout: 374.5 ±0.7x 298.5±0.7 mm Note! Antenna not included in the pack. Figure 1.3 TPC-1582H Dimensions TPC-1282T1582H/1782H User Manual...
Weight: 6kg Dimensions (W x H x D): 414±1 x 347.5±1 x 84±1.5 (16.3" x 13.68" x 3.31") Cutout: 400.8±1 x 334.3 ±1 Note! Antenna not included in the pack. Figure 1.4 TPC-1782H Dimensions TPC-1282T/TPC-1582H/TPC-1782H User Manual...
12 hours must be allowed to make sure the TPC is completely dry before the TPC is switched on. Panel Mounting Position the TPC against the panel. Insert the holding clip into the side of the TPC. TPC-1282T/TPC-1582H/TPC-1782H User Manual...
TPC-1x82H’s ground, cabinet’s ground and earth ground should all be connected together. Embed TPC-1x82H/T series into the cabinet. Step A: Connect the cabinet to earth ground. Step B: Embed null TPC-1x82H/T series into the cabinet without any I/O cable and power. TPC-1282T/1582H/1782H User Manual...
Page 20
If you install a USB device or Mini PCIe card on the TPC-1x82H, please double check the voltage between V- and earth ground, if the voltage is not almost equal with each other, we suggest to short V- and earth ground with wiring. TPC-1282T/TPC-1582H/TPC-1782H User Manual...
It is suggested to turn OFF system power as you plug in or pull out the memory card, even though the CompactFlash memory is hot swappable. Connect the power connector to the 24 VDC power lines. The power lines can either be of some power adapter or in-house power source. TPC-1282T/1582H/1782H User Manual...
Page 22
TPC-1282T/TPC-1582H/TPC-1782H User Manual...
A support DVD for TPC-1x82H/T series is available and along with the product and there are related utilities and drivers for starting up the system. Note! You can download the latest driver on the Advantech support portal of Advan- tech’s website if there is any updated. 3.1.1...
Page 25
Click “Install” Click “Finish” to finish the installation After installing Touch Screen driver, a “PenMount Monitor” icon will show on your notification area. TPC-1282T/1582H/1782HUser Manual...
3.1.2 Installation of Advantech Watchdog Driver Enter the Watchdog folder, double click the AdvWDT icon, and then click “Next”. Select “Advantech [EC] WDT” and click “Next” TPC-1282T/TPC-1582H/TPC-1782H User Manual...
Page 27
Click “Install” Click “Finish” to finish the installation Select “Yes, I want to restart my computer now” and click “OK” TPC-1282T/1582H/1782HUser Manual...
Page 28
After installing Watchdog driver, a “Watchdog Service Configuration” icon will show in control panel Double click the “Watchdog Service Configuration” icon, and you can configure the Watchdog timer function. TPC-1282T/TPC-1582H/TPC-1782H User Manual...
Setting Beep function for each device. Right Button When you select this function, a mouse icon appears in the right-bottom of the screen. Click this icon to switch between Right and Left Button functions. Exit Exits the PenMount Monitor function. TPC-1282T/1582H/1782HUser Manual...
Device You will see the icon of PenMount 6000 USB under Device tab. In Device tab, you can see the devices detected on your system. Select a device and press the Config- ure button to configure it. TPC-1282T/TPC-1582H/TPC-1782H User Manual...
Page 31
About of the device you selected. 3.2.1.1 Calibrate This function offers two ways to calibrate your touchscreen. 'Standard Calibration' adjusts most touchscreens while 'Advanced Calibration' adjusts aging touchscreens. You can select either or both method to calibrate your touchscreens. TPC-1282T/1582H/1782HUser Manual...
Page 32
PenMount's application pro- gram as the result of user's execution of Advance Calibration. Turn off EEPROM storage: This function disables the write-in of calibration data in the controller. This function is enabled by default. TPC-1282T/TPC-1582H/TPC-1782H User Manual...
Page 33
Beep Duration: Modify sound duration. Kind of Sound: TPC-1x82H/T series only support Buzzer beep. Cursor Stabilizer: Enable the function support to prevent cursor shake. Use press and hold as right click: You can set the time out and area for you need TPC-1282T/1582H/1782HUser Manual...
Page 34
Edge compensation is used to optimize the cursor accuracy on the edge, which is for advanced calibration. You can adjust the settings from 0 to 30 for accommodating the difference of each touch panel. 3.2.1.4 About This tab shows the information about the PenMount controller and driver version TPC-1282T/TPC-1582H/TPC-1782H User Manual...
TPC-1x82H/T series only provides one touchscreen display so this function is not workable on TPC-1x82H/T series. 3.2.2.1 Tools In Tools tab, there are Draw, Right Button Icon, functions. They will be introduced in this section. 3.2.2.2 Draw Draw function is used to test or demonstrate the PenMount touchscreen operation. TPC-1282T/1582H/1782HUser Manual...
Page 36
When you select this function, a mouse icon appears in the right-bottom of the screen. Click this icon to switch between Right and Left Button functions. TPC-1282T/TPC-1582H/TPC-1782H User Manual...
In the General tab, there are four static labels: Service Name: display the name of the Advantech Watchdog service in the Ser- vice Control Manager (SCM) database. Watchdog Type: display the Watchdog chipset type. Such as EC.
Page 38
Watchdog is disabled. If the Watchdog is enabled and you click this “Reboot” button then all the three buttons: “Enable/Disable”, “Strobe” and “Reboot” becomes grayed, no operations can cancel the rebooting machine operation but stop the Advantech Watchdog service. TPC-1282T/TPC-1582H/TPC-1782H User Manual...
In the About tab, there shows some copyright information of the Advantech Watchdog ser- vice. Wake up from Suspend Mode TPC-1x82H/T series has three wake-up modes which can let you do versatile setting such as remote control. You can wake up the system on USB, LAN and touch screen. The following table shows each wake-up mode in detail.
Also, you need to enable the Wake-on-LAN function on TPC-1x82H/T series. Please follow the following steps. Enter Network Connections setting, right-click on the Local Area Connection icon, and select “Properties.” In the Networking tab, select “Configure” button. TPC-1282T/TPC-1582H/TPC-1782H User Manual...
Page 41
In Power Management tab, check “Wake on LAN items” to enable the Wake-on- LAN function. TPC-1282T/1582H/1782HUser Manual...
If you need wake-on-touch screen function, you need to enable the function in Device Manager under Windows. Touch screen can wake up the system from S3. Enter into Device Manager, then you can find touch device is belong to "Micro- soft Input Configuration Device" or “Mice and other pointing devices”. TPC-1282T/TPC-1582H/TPC-1782H User Manual...
3.4.2 to select USB device in Mice and other pointing devices then enable USB wake up function.. USB can wake up the system from S3. Note! The setting depends on what kind of device is plugged into the USB interface. TPC-1282T/1582H/1782HUser Manual...
Applying changes to an image applies all changes made to the operat- ing system during a specific period of time. Advantech provide utility to operate EWF. Refer below steps if you want to enable. Click Start Menu->All Programs->Advantech->AdvWF and click EWF Utility...
Writes to folders with write- through exceptions will be persisted when the device restarts. Advantech provide utility to operate FBWF. Refer below steps if you want to enable Click Start Menu->All Programs->Advantech->AdvWF and click FBWF...
Windows startup process. It enhances the boot time for fast boot feature. If you require a fast startup, activate HORM. Before enabling HORM, follow the steps below: Make sure EWF is disabled. Click Start Menu -> All Programs -> Advantech -> AdvWF TPC-1282T/TPC-1582H/TPC-1782H User Manual...
Page 47
Click EWF Utility and go to General page to check EWF is disabled. Enable Hibernate Open command prompt as Administrator and type "powercfg -h on" TPC-1282T/1582H/1782HUser Manual...
Page 48
Check the hibernate state in general page. Enable HORM Open AdvWF, click EWF Utility and go to EWF tab TPC-1282T/TPC-1582H/TPC-1782H User Manual...
Page 49
Click "Enable" in EWF tab Click OK and it will reboot automatically to make EWF become effective After system is rebooted, open AdvWF and click EWF Utility Go to HORM page, and click “HORM” button Click OK and it will shutdown automatically TPC-1282T/1582H/1782HUser Manual...
Enhanced Write Filter (EWF), File-Based Write Filter (FBWF), and Regis- try Filter in Windows Embedded Standard 7. EWF, FBWF, and Registry Filter are also included separately in Windows Embedded 8 Standard, primarily for backward com- patibility. TPC-1282T/TPC-1582H/TPC-1782H User Manual...
PenMount PM6200 Combo 5-wire Control Board Touch controller Touch screen analog resistive Touch force with test pen; 2 mm diameter: 5 N Backlighting (MTBF) Half brightness life time, min. 50000 h at 50 °C, 50% brightness typical TPC-1282T/TPC-1582H/TPC-1782H User Manual...
Intel I210-IT Gigabit Ethernet supports 10/100/1000 bps and teaing LAN interface B, RJ45 function and jumbo frame. Connection via USB interface Keyboard, mouse For unique labeling, the LAN interfaces are numbered on the housing. The number- ing by the operating system can differ. TPC-1282T/1582H/1782H User Manual...
Temperature, tested in accordance with IEC 60068-2-1, IEC 60068-2-2 Temperature gradient in operation Max. 10 °C/h, no condensation Maximum ambient temperature in operation 0~+55°C (TPC-1282T: 0~+50°C) Permissible relative humidity to 95%, no condensation 5 … 85% at 30 °C, no condensation Operation Storage/transport 5 …...
In real cases, many customers may break the level 1 isolation by 3rd party Device or cable design, in this situation, we need to consider making all the GND short (Power GND/Digital GND/Earth GND), and ensure customers have good Earth GND connec- tion. TPC-1282T/1582H/1782H User Manual...
Page 56
TPC-1282T/TPC-1582H/TPC-1782H User Manual...
To setup COM2 as RS422/485, enter the BIOS menu during boot up by pressing the DEL key, in the Advanced submenu, change COM2 Uart mode setting to RS422/485 as in the following picture. Caution! Don't change any settings unless you understand the consequences. Figure A.1 TPC-1282T TPC-1282T/TPC-1582H/TPC-1782H User Manual...
Page 60
In TPC-1582H, you will need to boot into OS to install COM driver and configure COM setting manually to COM1 and COM2 as following picture. TPC-1282T/TPC-1582H/TPC-1782H User Manual...
