Summary of Contents for Advantech TREK-734

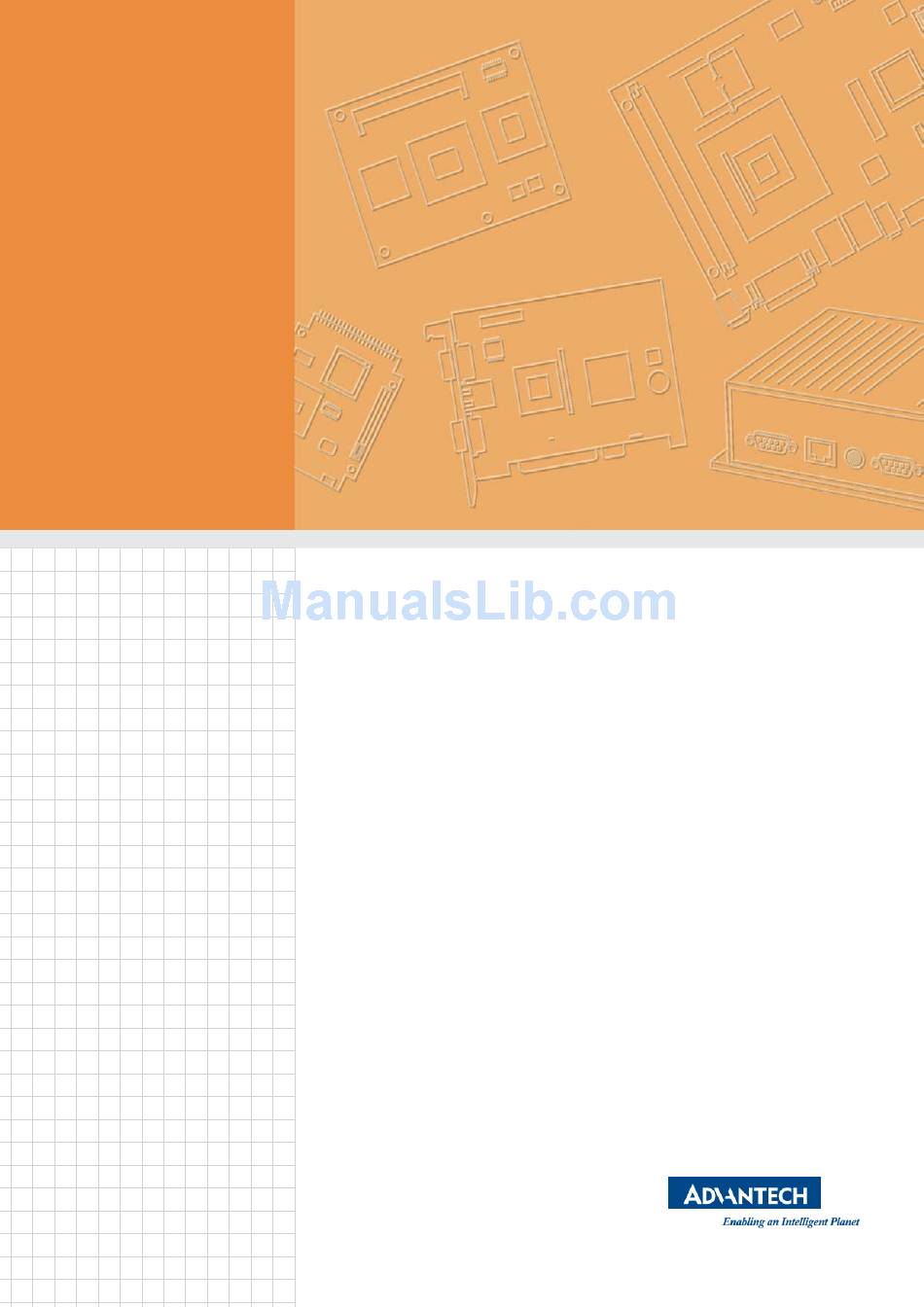

  • Page 1 User Manual TREK-734 Computer...
  • Page 2 No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. How- ever, Advantech Co., Ltd.

  • Page 3: Declaration Of Conformity

    20cm (8 inches) during normal operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user`s authority to operate the equipment. TREK-734 User Manual...

  • Page 4: Technical Support And Assistance

    Technical Support and Assistance Visit the Advantech web site at http://support.advantech.com where you can find the latest information about the product. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance. Please have the following information ready before you call: –...

  • Page 5: Packing List

    Before setting up the system, check that the items listed below are included and in good condition. If any item does not accord with the table, please contact your dealer immediately. Part number Description Q`ty TREK-734C TREK-734 Computer 1700019031 Power cable (2M) TREK-734 User Manual...

  • Page 6: Ordering Information

    Ordering Information Description TREK-734C-WBADA0E TREK-734 I. MX6 1GB,4GB , Android5.1 WiFi only Safety Instructions Read these safety instructions carefully. Keep this User Manual for later reference. Disconnect this equipment from any AC outlet before cleaning. Use a damp cloth. Do not use liquid or spray detergents for cleaning.
  • Page 7 This product is intended to be supplied by a Listed DC power source, rated 9~32Vdc, 10A maximum and Tma 55 degree C, if need further assistance with purchasing the DC power source, please contact Advantech for further information. Warning! Input voltage rated: 9 - 32 Vdc.

  • Page 8: Table Of Contents

    Dimensions ....................5 Figure 1.1 TREK-734 dimensions........... 5 Chapter System Setup .........7 A Quick Tour of the TREK-734 Computer……..........8 Figure 2.1 Front view of TREK-734 ..........8 Figure 2.2 Rear view of TREK-734 ..........8 Installation Procedures…………………………………………………….……8 2.2.1 Connect Power ………………………………........9...
  • Page 9 VCIL Demonstration………………….………………………………………..34 5.6.1 CAN…………………………………………………………………………35 5.6.2 CAN Filter…………………………………………………………………..36 5.6.3 J1939……………………………………………………..…………………37 5.6.4 J1939 Config…………………………………………….…………………38 5.6.5 J1939 Filter……………………………………………….………………..39 5.6.6 OBD2………………………………………………….……………………40 5.6.7 OBD2 Filter…………………………………………….…………………..41 5.6.8 J1708………………………………………………….……………………42 5.6.9 J1708 Filter…………………………………………….…………………..43 5.6.10 J1587………………………………………………….…………………..44 5.6.11 J1587 Filter………………………………………….……………………45 SDP Demonstration……..…………………………….………………………..46 5.7.1 Firmware……………………………………………………………………46 5.7.2 Backlight…………………………………………………………………….47 5.7.3 Alarm………………………………………………………………………..48 5.7.4 Sensor………………………………………………………………………49 5.7.5 Hotkey………………………………………………………………………50 5.7.6 Speaker…………………………………………………………………….51 5.7.7 USB…………………………………………………………………………52...

  • Page 10: Chapter 1 General Information

    Chapter General Information This chapter gives background information on the TREK-734 Computer Sections include: „ Introduction „ General Specifications „ Dimensions TREK-734 User Manual...

  • Page 12: Introduction

    Introduction TREK-734 is a RISC-based open platform all-in-one light-duty mobile data terminal equipped with an 8” display, Freescale ARM® Cortex™-A9 i.MX 6 Dual lite processor, Android 5.1 OS , 2GB memory and networking capabilities to enable high performance computing for fleet management applications. TREK- 734 supports WiFi , BT, and GPS communication to facilitate location tracking and route optimization.
  • Page 14 Operating Temperature -10° C ~ 70° C (without battery) -20° C ~ 60° C (with battery discharge) 10° C ~ 60° C (with battery charge) Storage Temperature -30° C ~ 80° C (without battery) Shock/Vibration MIL-STD-810G, SAE J1455 TREK-734 User Manual...

  • Page 15: Dimensions

    1.3 Dimensions Figure 1.1 TREK-734 dimensions TREK-734 User Manual...

  • Page 16: Chapter 2 System Setup

    Chapter System Setup This chapter details system setup on TREK-734 Sections include:  A Quick Tour of the Computer  Installation Procedures TREK-734 User Manual...

  • Page 18: A Quick Tour Of The Trek-734 Computer

    2.1 A Quick Tour of the TREK-734 Computer Before starting to set up TREK-734, take a moment to become familiar with the locations and functions of the connectors and ports, which are illustrated in the figures below. Figure 2.1 Front view of TREK-734 Figure 2.2 Rear view of TREK-734...

  • Page 19: Installation Procedures

    “ignition” mark. Note! Ignition on/off setting: The TREK-734 supports an ignition on/off function so that you can power on/off the TREK-734 via the ignition signal/volt- age and connect the TREK-734 ignition switch. Table 2.1: Pin Definition of Power Cord...
  • Page 20 Table 2.2: Power connector Signal Signal Ground Power input (9~32VDC) Acc ignition input TREK-734 User Manual...

  • Page 21: I/O Connectors Pin Assignments

    Chapter I/O Connectors This chapter explains how to set up the Computing Box hardware, including instructions on setting. Sections include:  I/O connectors pin assignment...

  • Page 22: I/O Connectors Pin Assignment

    3.1 I/O Connectors Pin Assignment 3.3.1 Power connector Table 3.1: Power connector Signal Signal Ground Power input (9~32VDC) Acc ignition input 3.3.1.1 Power in Jack Cable TREK-734 User Manual...
  • Page 23 Table 1: Power JACK Cable Pin Depiction Signal Depiction Cable /Label ■/- Power Ground ■/+ Power Input (9 ~ 32 V DC ) ■/ Acc Ignition Input ■ /Shield Shield Ground Fuse Spec: 58V/10A*1 3.3.2 High Density Connector GND_CODEC MIC_IN1 RS232_RTS1_HD LINE_IN_P RS232_CTS1_HD...
  • Page 24 Pin name GND_RS12 RS232_RTS1_HD RS232_CTS1_HD RS232_TX1_HD RS232_RX1_HD RS232_TX2_HD RS232_RX2_HD RS-232_DCD2_HD CVBS_HD GND_CVBS USB_HD_DP_H USB_HD_DN_H GND_USB +V5_HD_USB GND_12V GND_12V +12V_HD_HD1 +12V_HD_HD1 GND_CODEC MIC_IN1 LINE_IN_P LINE_IN_N LINE_OUT_R LINE_OUT_L ISO_DO_DRAIN1 ISO_DO_DRAIN2 ISO_DI_1 ISO_DI_2 ISO_DI_3 ISO_DI_4 ISO_DI_5 ISO_DI_6 ISO_GND GND_CAN CAN_H_R TREK-734 User Manual...

  • Page 25: Usb Connector

    CAN_L_R 3.3.3 USB Connector Connector type: Stack USB A-Type Receptacle DIP UB1112C-8FDE-4F Table 3. : USB Connector Signal Depiction USB_Data- USB_Data+...

  • Page 26: Chapter 4 Software Demo Utility Setup

    Chapter Software Demo Utility Setup This chapter explains the soft- ware demo utility for TREK-734 Sections include: „ Introduction „ How to Set up Demo Utility TREK-734 User Manual...

  • Page 27: Ivcp Demonstration

    Introduction Advantech has developed demo utilities based on Advantech provided SDK APIs to let user test the functions on TREK-734. This document describes the usage of each demo utilities and also provide a basic concept of the application development on TREK-734.
  • Page 28 Press “Get” to get the current threshold value and Press “Set” to set the value. Press “Save Default” to set current value as default value of VPM controller. Press “Load Default” to load the stored default values. TREK-734 User Manual...
  • Page 29 4.2.4 Event Delay 4.2.4.1 Power control mechanism TREK-734 provides VPM features to fulfill specific requirements. The basic mechanism is shown in the following figure.
  • Page 30 After the event is triggered, VPM controller starts to countdown next delay period (HARD_OFF_DELAY). If HARD_OFF_DELAY counts to zero, the system power will be cut off abruptly to avoid unexpected TREK-734 User Manual...
  • Page 31 system hang. Aldo, once VPM controller enter the HARD_OFF_DELAY stage, the process cannot be reversed. Low power protection  To avoid draining power, low-power protection is to ensure that there is enough power to start the machine. When the system is ON, the VPM controller will monitor the power voltage. If the voltage is lower than the programmable threshold (LOW_THRESHOLD), the VPM controller will start to countdown a delay(LOW_DELAY).

  • Page 32: Alarm

    In this page, you can set the time and set alarm wakeup time to VPM controller and enable/disable the alarm as a system wakeup source. Press “Save Default” to set current value as default value. Press “Load Default” to load the stored default values. TREK-734 User Manual...

  • Page 33: Watchdog

    4.2.6 Watchdog In this page, you can enable/disable the watchdog function and set the count time (second) for the watchdog to avoid unexpected system hang.. When watchdog is enabled, the VPM controller will start counting down the time set for watchdog and power off the machine if it is counted to 0.

  • Page 34: G Sensor

    4.2.7 G-Sensor In this page, you can enable/disable the G-sensor. Also, you can set G-sensor as a system wakeup source and set the threshold to trigger system wakeup. TREK-734 User Manual...
  • Page 35 4.2.8 Peripheral In this page, you can enable/disable the peripheral functions and set WWAN as system wakeup source.
  • Page 36 4.2.9 Storage In this page, you can save/load arbitrary data to the private storage (256 byte) on the machine. TREK-734 User Manual...
  • Page 37 4.2.10 Digital I/O In this page, you can monitor the digital input status and enable/disable digital output. DI1 default is normal digital input and can be set as dedicated reverse signal input.

  • Page 38: P Sensor

    4.2.11 P-Sensor In this page, you can monitor the p-sensor status and enable/disable it. TREK-734 User Manual...

  • Page 39: Vcil Demonstration

    VCIL Demonstration The VCIL demonstration application demonstrate the usage of MRM VCIL (Communication Interface Layer) API which allow user to access protocol easily. 4.3.1 Port selection When first open VCIL demonstration app, you will see a port selection windows as following. Please select the VCIL port path and press Connect button.
  • Page 40 TREK-734 User Manual...
  • Page 41 4.3.2 Information In this page, the demo application shows the current status and basic information.
  • Page 42 4.3.3 Option In this page, you can the set the protocol for each port. TREK-734 User Manual...

  • Page 43: Can

    4.3.4 CAN / J1939 / OBD2 / J1708 / J1587 To use CAN / J1939 / OBD2 / J1708 / J1587 protocol on each port, please click on corresponding tab to switch to the page of specific protocol, then you can send/read message on specific port by setting the detail items.
  • Page 44 TREK-734 User Manual...

  • Page 45: Hotkey

    4.4 Smart Display Demonstration The smart display demonstration application demonstrate the usage of MRM SDP API which is a lightweight interface between OS (Operating system) and SDP (Smart Display Co-Processor) allow user to control the font-end display, backlight setting, hotkey, peripheral control, etc. 4.4.1 Information In this page, the demo application shows the current status and basic information.

  • Page 46: Trek-734 User Manual

    TREK-734 User Manual...

  • Page 47: Backlight

    4.4.2 Backlight In this page, you can set the levels for backlight, the brightness for each level and the current brightness level.

  • Page 48: Hotkey

    4.4.3 Hot key In this page, you can monitor the press state of each hot key and set the LED brightness of the hot keys. TREK-734 User Manual...

  • Page 49: Speaker

    4.4.4 Peripheral In this page, you can control the status of peripheral devices. Speaker  Enable/disable speaker volume. Reserve gear  Enable/disable auto switch of display. If enabled, the display will be switched to camera view if reverse gear detected and switched to LVDS view if reverse gear absent. ...
  • Page 50 OS (Operating system) and GPS module allows user to easily get GPS information. 4.5.1 Port selection When first open GPS demonstration app, you will see a port selection windows as following. Please select the GPS port path and press Connect button. The common path at Window is COM3. TREK-734 User Manual...
  • Page 51 4.5.2 Information In this page, the demo application shows the current GPS status. GPS Status Function demonstration selection Satellite location Information 4.5.3 NEMA In this page, the demo application shows the incoming NMEA code. Check ' Save to file ' to logging the NMEA code to file.
  • Page 52 TREK-734 User Manual...
  • Page 53 Appendix This appendix explains the optional peripherals installation...

  • Page 54: Installing The Backup Battery

    A-1 Installing Backup battery A-2 Installing RAM mount kit TREK-734 designed a RAM mount hole to support ram mount kit. Refer to below dimension. It needs to use 3pcs M4x0.7x10L screws. TREK-734 using as portrait monitor only. TREK-734 User Manual...

  • Page 55: Installing The Ip54 I/O Cover

    A-3 Installing IP cover...
  • Page 56 No part of this publication may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permis- sion of the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2010...
