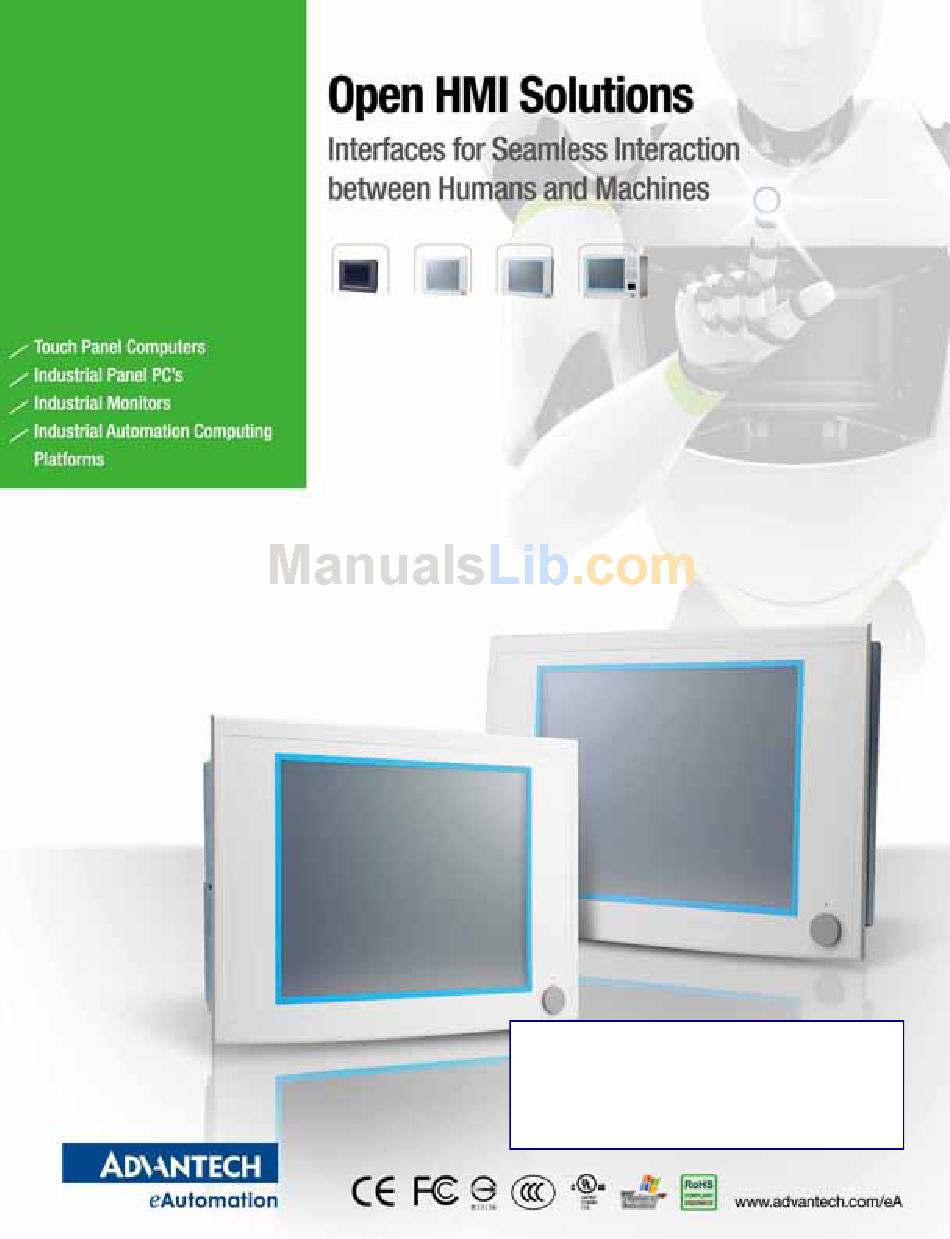

- Page 1 Provided by: Quantum Automation 714-854-0800 714-854-0803 Phone: Fax: sales@quantumautomation.com eMail: www.QuantumAutomation.com 4400 E La Palma Avenue, Anaheim, CA 92807...
- Page 2 Breaking Through with Open HMI Solutions The world market for operator terminals was estimated to have been worth just over $1.5 billion in 2005. The total market is forecast to grow at a compound annual growth rate (CAGR) of 7.4% to $2.3 billion in 2011.
- Page 3 Powerful Computing and Robust Platforms with High Performance for Factory Floors Advantech’s IPPC series has proven their reliability through years of operation in all parts of the world. They can be built to achieve a performance and cost ratio that is optimum for any industrial application. Constructed with heavy-duty aluminum or stainless steel front panels, the rugged design of Advantech’s IPPC series can withstand tough industrial environments.
- Page 4 Rich standard I/O support and 50mm dual LAN PCI-104 expansion Grounding protection Downward I/O cabling 5.7"/6.4” X86-based Touch Panel Computers TPC-660E/662G 5.7"/6.4" VGA TFT LCD Geode LX800 Touch Panel Computer with CAN-bus 1. RS-232 COM port 6. Power Receptor 2. RS-232/422/485 COM port 7.
- Page 5 Support CAN-bus 2.0b communication protocol ♦ Support WinCE 6.0/5.0 Remote display CAN-bus device support Horizontal & vertical screen orientation 3.5" RISC-based Touch Panel Computers TPC-30T/32T 3.5" QVGA TFT LCD XScale PXA270 Touch Panel Computer with CAN-bus 1. 10/100B-T Ethernet 2. RS-232/485 COM port (TPC-30T) CAN-bus/RS-232 COM port (TPC-32T) 3.
- Page 6 TPC Selection Guide and Ordering Information TPC-1770H TPC-1570H TPC-1270H Model Intel Pentium M 1.4 GHz Intel Pentium M 1.4 GHz Intel Celeron M 1 GHz Intel Celeron M 1 GHz Intel Celeron M 1 GHz Intel Celeron M 600 MHz 512 MB DDR2 SDRAM 512 MB DDR SDRAM 512 MB DDR2 SDRAM...
- Page 7 FPM Series Industrial Monitor Overview Aiming to be a leader in the display market, Advantech provides a full-range of industrial monitors for versatile applications. The Advantech FPM series ranges in size from 6”, 12”, 15”, 17” to 19”. Their industrial-grade high-brightness LCD and anti-glare design provide a long-lasting and reliable information interface.
- Page 8 FPM Selection Guide and Ordering Information Model FPM-3190G/3191G FPM-3170G/3171G Size (diagonal) 19" 17" Resolution 1280 x 1024 1280 x 1024 Colors 16.2M 16.2 M Viewing Angle (H/V°) 178, 178 140, 130 Luminance (cd/m2) Backlight Life (hrs) 50000 40000 Contrast Ratio 1000 : 1 700 : 1 Direct VGA Input...
- Page 9 IPPC Series Industrial Panel PC Overview The robust design and compact size of the IPPC series make it a good fit for almost any industrial application. Constructed with heavy-duty aluminum or stainless steel front panel and tempered glass, the rugged design of IPPCs stand up to the toughest industrial operating environments.
-
Page 10: User-Friendly Interface
IPPC Series Industrial Panel PC Overview User-Friendly Interface Front Accessible Programmable membrane ♦ macro keys Function keys ♦ Cursor keys ♦ Touchpad ♦ Front USB access Designed for Easy Installation & Flexible Expansion Gull-wing rear cover allows easy access to CPU, RAM, PCI and HDD Flexible board configura- tion between industrial motherboard (IPPC-7157A) - Page 11 IACP Series Industrial Automation Computing Platform Overview Featuring a new vibrant color scheme, the IACP-4000 series of 4U rack mountable computing platforms provides powerful automation solutions for a variety of industrial applications. 5.7” VGA TFT LCD & function keys Front-accessible USB 2.0 & PS/2 ports Model Name Diagonal Front door lock &...
- Page 12 HMI Application Story Overview Advantech’s open HMI solutions are designed to fulfill the needs of mission-critical automation applications. Their rugged features and powerful computing technology deliver reliability and flexibility. Point of Service Terminals in Gas Stations IPPC-6152A - 15” XGA TFT LCD Pentium 4/Celeron M Industrial Panel PC with 2 x PCI Slots Our clients’...
