* Push for 1 sec. to toggle the tag setting for the displayed
channel. (p. 10)
@ HIGH/LOW POWER SWITCH [HI/LO « DIM]
* Toggles between high and low output powers. (p. 9)
*While pushing, rotate the channel selector or push the
[V/A] switches on the microphone to adjust the display
and control/switch backlighting intensity. (p. 11)
© SQUELCH CONTROL [SQUELCH]
* Rotate clockwise to eliminate audio noise. (p. 8)
* Activates the built-in attenuator when rotated deep clock-
wise. (p.8)
@ POWER/VOLUME CONTROL [PWR/VOL] (p. 8)
* Push to turn power ON/OFF.
* Rotate to adjust the audio output.
@ HAILER/INTERCOM SWITCH [HLIIC « A.FOG]
*Selects/turns OFF the hailer and intercom functions,
(pgs. 21, 22)
* Push for 5 sec. to activate the auto fog horn function.
(p. 24)
@ INDIVIDUAL CALL SWITCH [INDV] (p. 16)
Push for 5 sec. to enter the individual call standby condi-
tion (when optional UX-130 is installed).
@ EMERGENCY SWITCH [EMER] (p. 14)
Push for 5 sec. to enter the distress call transmission
standby condition (when optional UX-130 is installed).

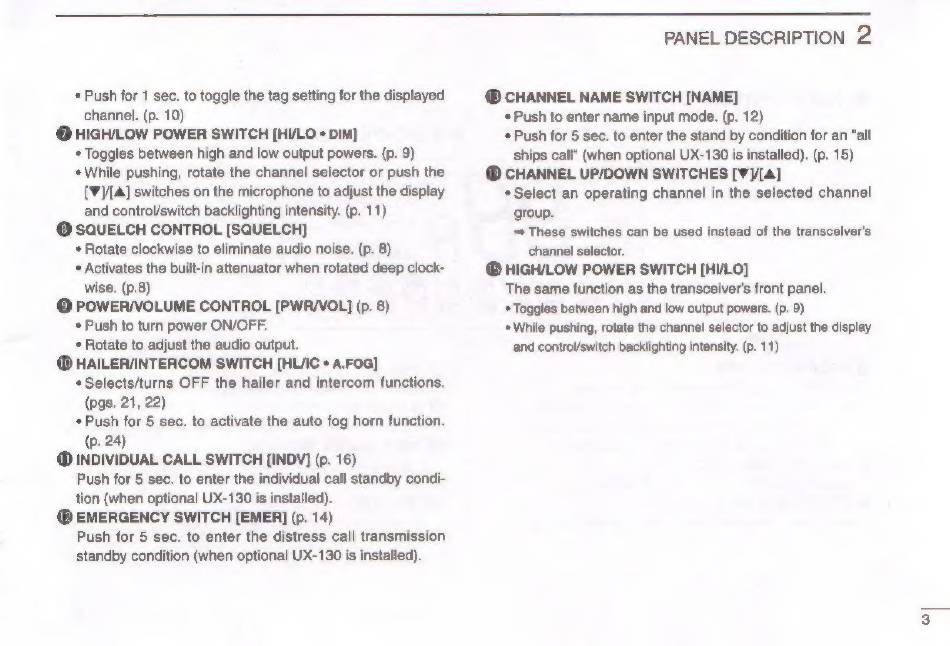

PANEL DESCRIPTION 2
® CHANNEL NAME SWITCH [NAME]
* Push to enter name input mode. (p. 12)
* Push for 5 sec. to enter the stand by condition for an "all
ships call" (when optional UX-130 is installed). (p. 15)
@ CHANNEL UP/DOWN SWITCHES [VJ/[4]
* Select an operating channel in the selected channel
group.
= These switches can be used instead of the transceiver's
channel selector.
@ HIGH/LOW POWER SWITCH [HI/LO]
The same function as the transceiver's front panel.
* Toggles between high and low output powers. (p. 9)
* While pushing, rotate the channel selector to adjust the display
and control/switch backlighting intensity. (p. 11)
|
