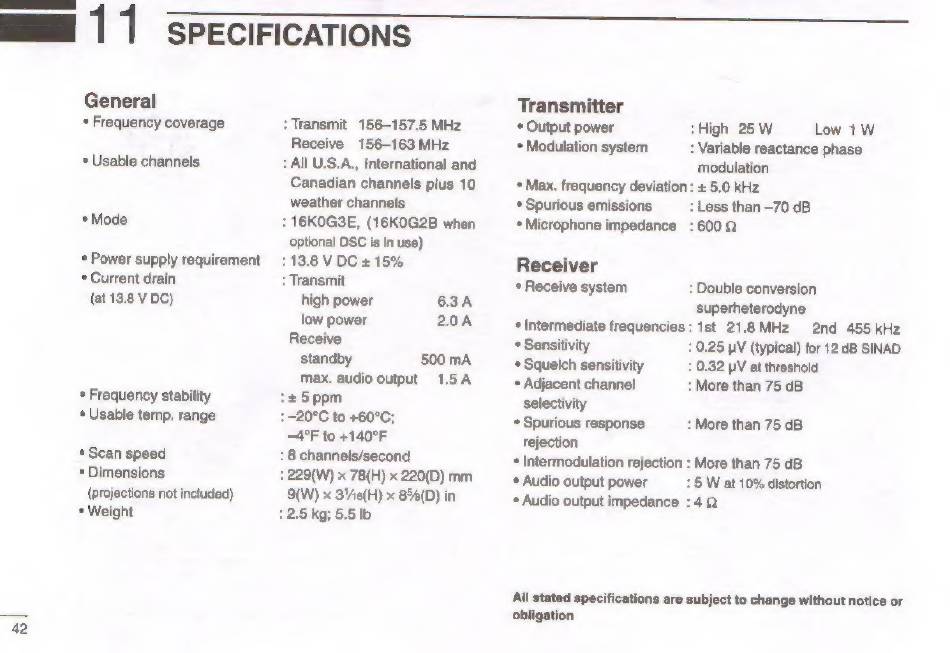

General
* Frequency coverage
* Usable channels
* Mode
* Power supply requirement
* Current drain
(at 13.8 V DC)
* Frequency stability
+ Usable temp. range
+ Scan speed
* Dimensions
(projections not included)
* Weight
: Transmit 156-157.5 MHz
Receive 156-163 MHz
: All U.S.A., International and
Canadian channels plus 10
weather channels
: 16KOG3E, (16KOG2B when
optional DSC is in use)
113.8 VDC + 15%
2 Transmit
6.3A
2.0A
high power
low power
Receive
standby
max. audio output
500 mA
1.5A
:+5 ppm
-20°C to +60°C;
~4°F to +140°F
: 8 channels/second
: 229(W) x 78(H) x 220(D) mm.
9(W) x 3%6(H) x 854(D) in
2.5 kg; 5.5 Ib
Transmitter
* Output power
* Modulation system
* Max. frequency deviation:
* Spurious emissions
* Microphone impedance
Receiver
* Receive system
* Intermediate frequencies :
* Sensitivity
* Squelch sensitivity
+ Adjacent channel
selectivity
* Spurious response
rejection
* Intermodulation rejection :
* Audio output power
* Audio output impedance
:High 25 W
: Variable reactance phase
Low 1W
modulation
+ 5.0 kHz
: Less than -70 dB
1600 Q
: Double conversion
superheterodyne
Ist 21.8MHz 2nd 455 kHz
: 0.25 pV (typical) for 12 dB SINAD
: 0.32 pV at threshold
: More than 75 dB
: More than 75 dB
More than 75 dB
: 5 W at 10% distortion
:4Q
obligation
