Installation Instructions

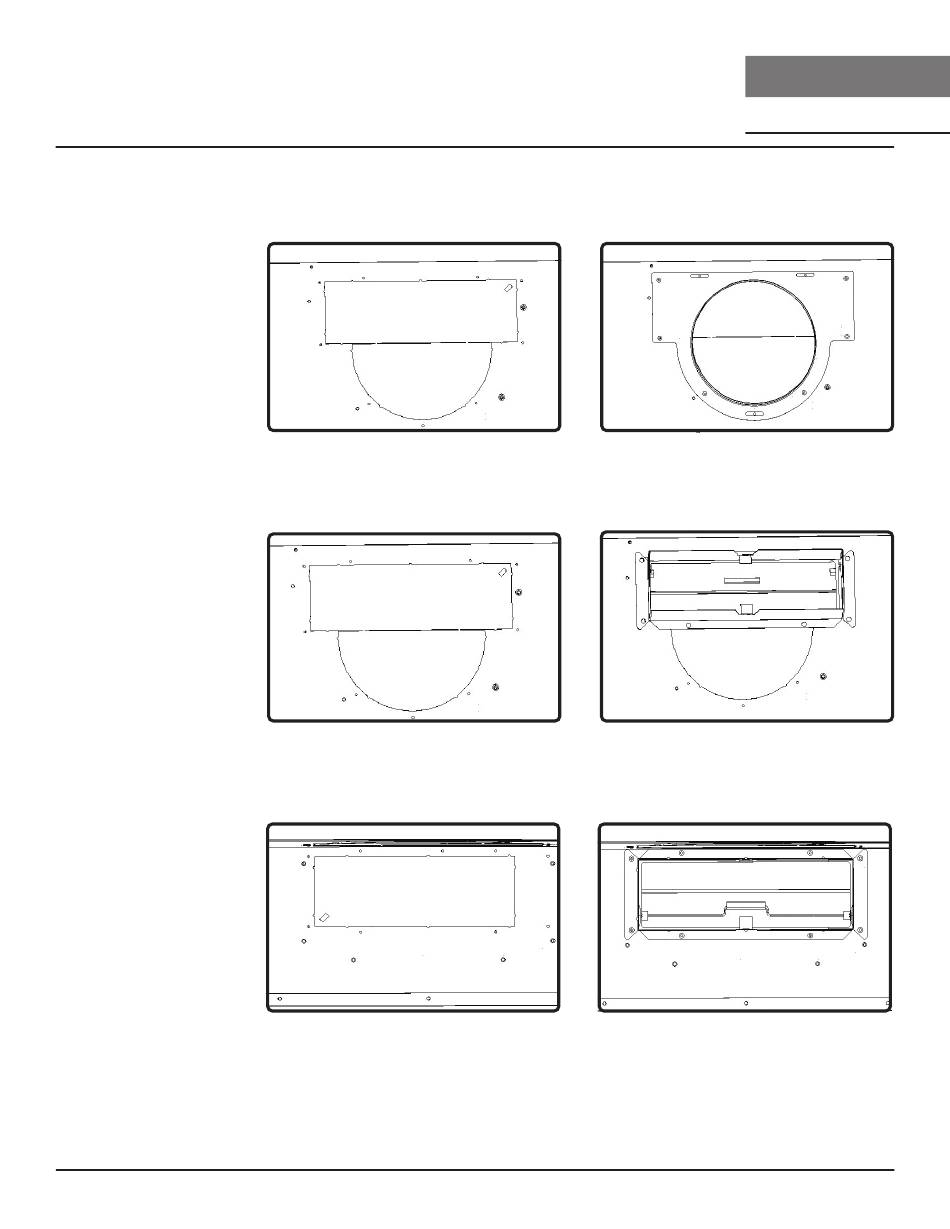

Ducting Preparation

If using hood in recirculating mode, skip these steps and turn to the next page.
Vertical Ducting
(7" Round)
Vertical Ducting
(3-1/4"x10"
Rectangular)
Horizontal Ducting
(3-1/4" x 10"
Rectangular)
16
1. Using a flat-head screwdriver,
remove both the rectangular and
round knock-out plates located on
top of hood.
1. Using a flat-head screwdriver,
remove only the rectangular section
of the knock-out plate located on
top of hood.
1. Using a flat-head screwdriver,
remove the rectangular knock-out
plate located on back of hood.
Monsoon Mini Use, Care, and Installation Guide
M O N S O O N M I N I
2. Secure 7" round collar to top of
hood using (6) M4 x 6 screws.
2. Secure 3-1/4" x 10" rectangular
collar to top of hood using (6) M4 x
6 screws.
2. Secure 3-1/4" x 10" rectangular
collar to back of hood using (6) M4
x 6 screws.
