Ductless Recirculation

Ductless recirculation is intended for applications where an exhaust duct work is not possible to be
installed. When converted, the hood functions as a recirculating hood rather than an exhaust hood.
Fumes and exhaust from cooking are drawn and filtered by a set of optional charcoal filters. The air is
then purified and re-circulated back within the home.
We recommend to ALWAYS exhaust air outside of the home by employing existing or installing new
duct work, if possible. The hood is most effective and efficient as an exhaust hood. Only when the
exhaust option is not possible should you recourse to converting the hood into a recirculating hood.
When converted to be a recirculating hood, a set of charcoal filters are required on top of its standard
Metal Filter set. Order according to its part number below. The standard mesh filters are intended to
capture residue from cooking, and the optional charcoal filters help to purify fumes exhausted from
cooking for recirculation.
Kit includes the charcoal filters and the air diverter plate. For detailed installation instructions, please
refer to the manual included with the recirculating kit.
Hood Model
AK9128BS
AK9134BS
Hood Model
AK9128BS
AK9134BS
DO NOT WASH CHARCOAL FILTERS. Charcoal filters may need to be changed more often depending
on cooking habits.
Monsoon Mini Use, Care, and Installation Guide
Recirculating Kit
Part Number
ZRC-9100A
ZRC-9100A
Charcoal Filter Replacements
Part Number
Z0F-C091
Z0F-C091

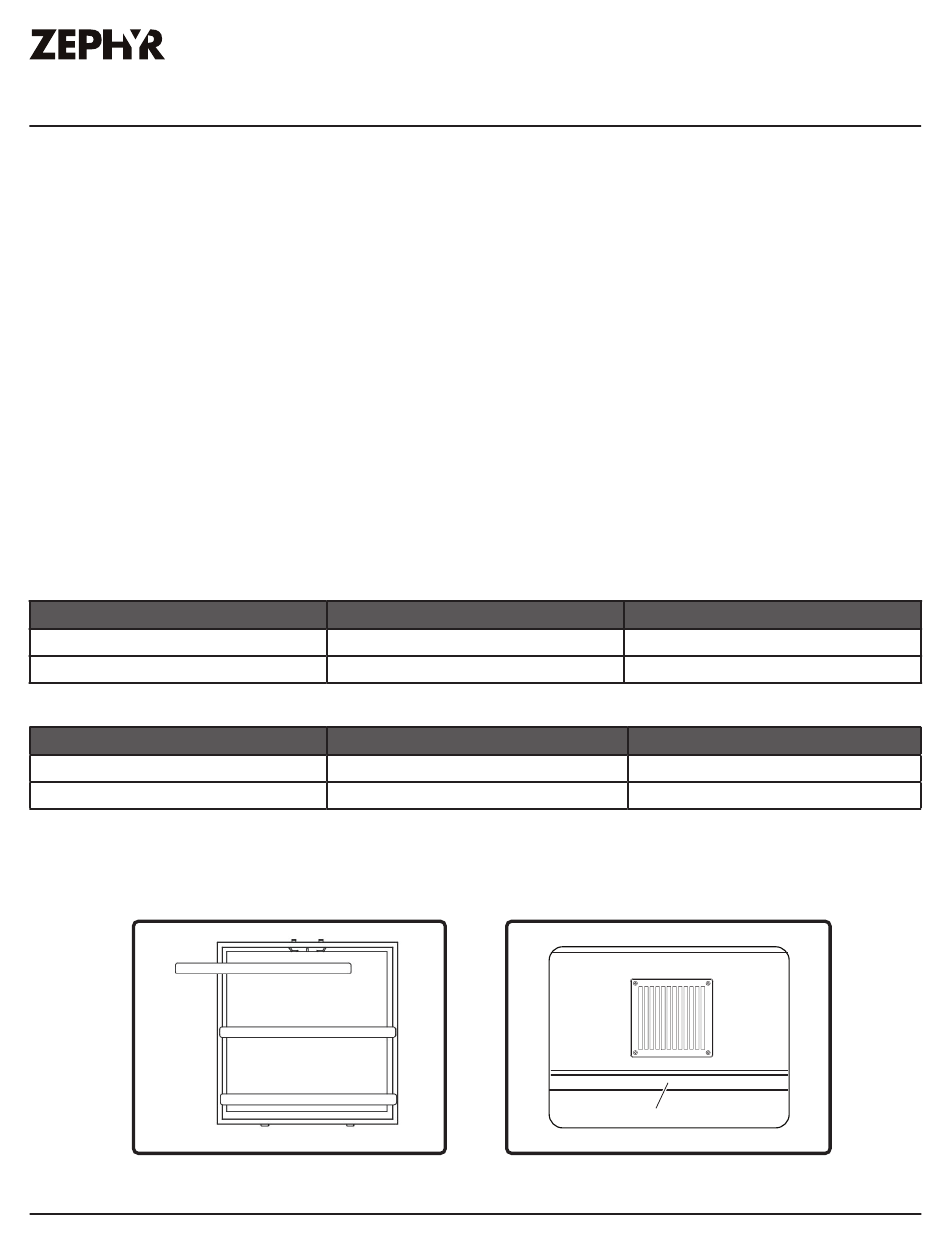

FIG. E
Installation Instructions
Return Air Vent
Top of cabinet
FIG. F
Quantity to Order
1
1
Quantity to Order
2
2
