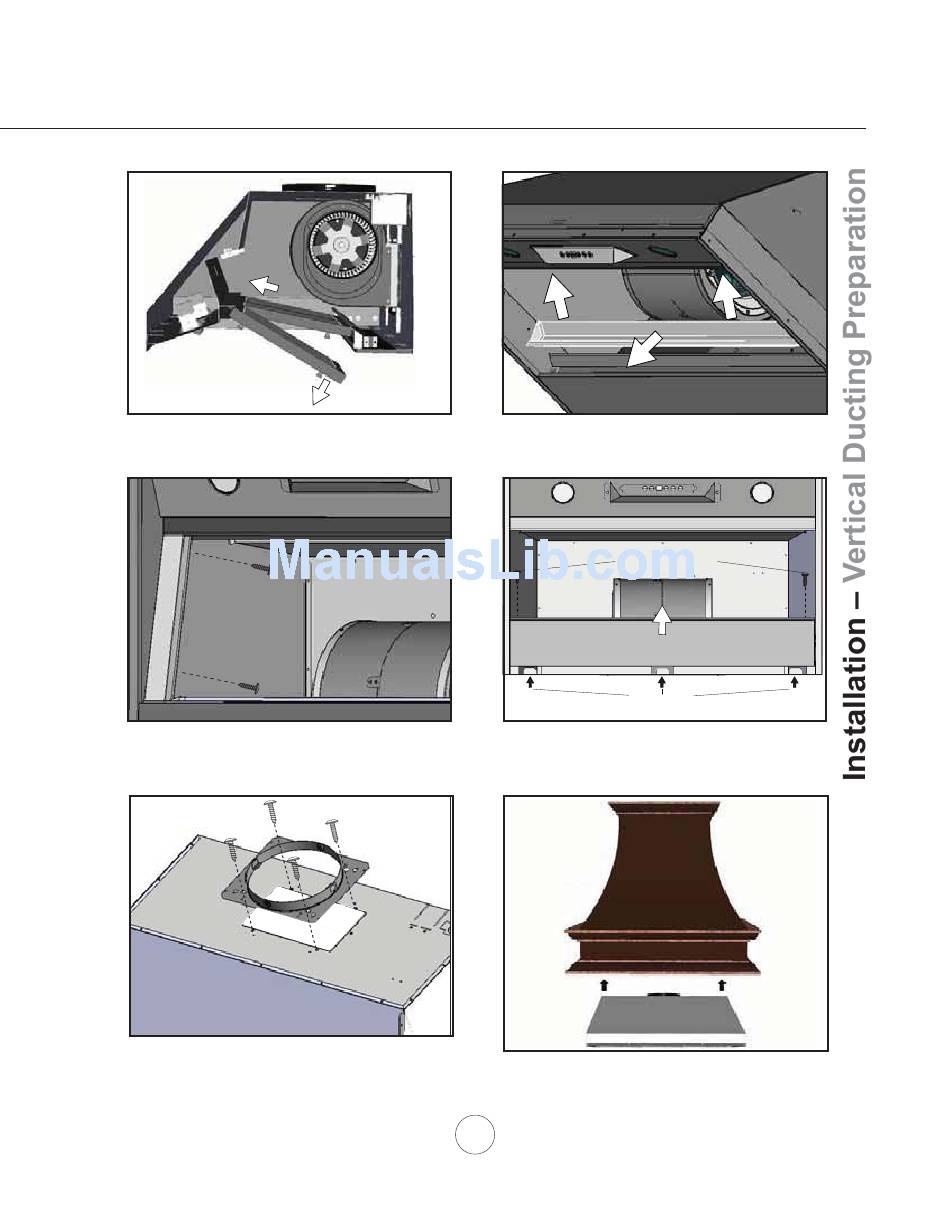

Vertical Ducting Preparation - Zephyr AK9234AS Use, Care And Installation Manual

1
1. Remove baffl e fi lters by: 1) Pulling fi lter toward
front of insert. 2) Pivoting rear of fi lter down.
3. (AK9228AS Only) Remove left and right side-
spacer panels by removing (2) screws from
behind each panel.
5. Secure 8" round adaptor to top of insert by (4)
M4 x 6mm screws.
2
2. Remove grease tray by: 1) Pulling up on tray to
4. Remove bottom panel by: 1) Removing (2)
6. Vertical ducting preparation is complete. Refer to
11
1
2
release from bottom panel. 2) Lifting tray out of
insert body.
1
Bottom Panel Screws
2
Locking Tabs
screws from left and right sides of bottom panel.
2) Pulling bottom panel toward front of insert to
release from locking tabs.
page 10, step 4 to complete installation.
