W4
J
W5
■
Alarm 1 Latching
■
W4
T_
W5
T
Alarm 1 Non Latch (factory)
W6 JP
W7
■
Alarm 2 Latching
■
W6
W7
J Alarm 2 Non Latch (factory)
■
W1
■ Trouble Alarm Normally Not Energized
W1
J
Trouble Alarm Normally Energized (factory)
■
W2
■
Alarm 2* ** Alarm Low
t.
W2
J
Alarm 2' Alarm High (factory)
■
W3
■
Alarm 1* Alarm Low
W3 J
Alarm 1* Alarm High (factory)
■
W8
■ Relay and Alarm LED Test NOT Enabled (factory)
W8 J
Relay and Alarm LED Test Enabled
■
W9
■ Stripchart Power OFF (factory)
W9
J
Stripchart Power ON
* Alarm low indicates the relay will energize when the input value is below the set point.
** Alarm high indicates the relay will energize when the input value is above the set
point.____

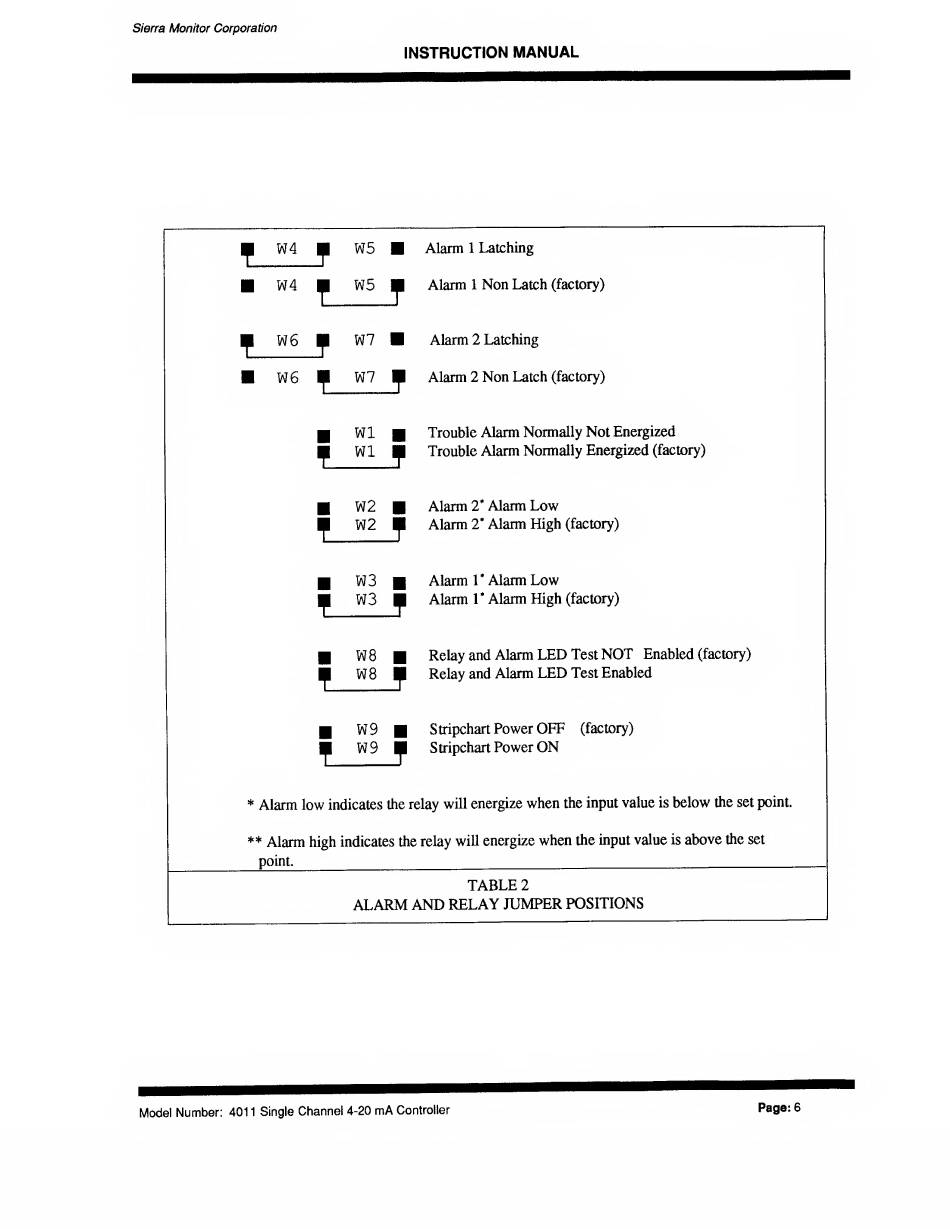

TABLE 2
ALARM AND RELAY JUMPER POSITIONS
Model Number: 4011 Single Channel 4-20 mA Controller
