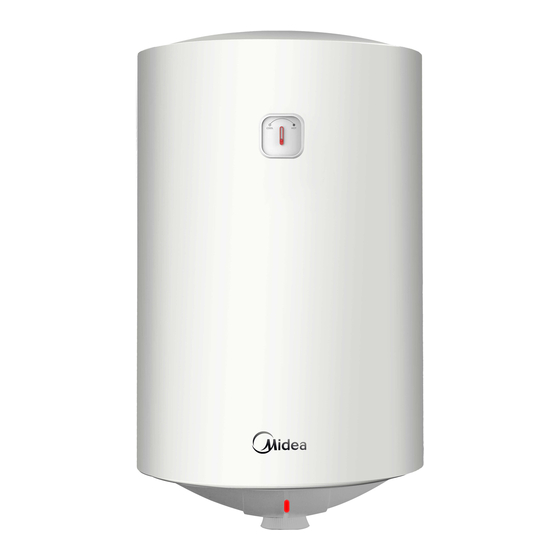

Storage Electric Water Heater
Instruction Manual
For Model: D30-15W
The diagram above is just for reference. Please take the
appearance of the actual product as the standard.
Thank you very much for purchasing our water heater.
Before installing and operating your water heater, please
read this manual carefully and keep it for future reference.
D50-15W
D80-15W
D100-15W
D120-15W
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Midea D30-15W
Summary of Contents for Midea D30-15W
- Page 1 Storage Electric Water Heater Instruction Manual For Model: D30-15W D50-15W D80-15W D100-15W D120-15W The diagram above is just for reference. Please take the appearance of the actual product as the standard. Thank you very much for purchasing our water heater.
-
Page 2: Table Of Contents
General Remark ● The installation and maintenance has to be carried out by qualified professials or authorized technicians. ● The manufacturer shall not be held responsible for any damage or malfunction caused by wrong installation or failing to comply with following instructions included in this pamphlet. ●... -
Page 3: Cautions
1. CAUTIONS Before installing this water heater,check and confirm that the earthing on the supply socket is reliably grounded. Otherwise, the electrical water heater can not be installed and used. Do not use extension boards. Incorrect installation and use of this electrical water heater may result in serious injuries and loss of property. -
Page 4: Product Introduction
2.1 Technical Performance Parameters Rated Rated Rated Max Of Water Volume Protection Waterproof Model Power Voltage Pressure Temperature Class Grade (ACV) (MPa) (℃) D30-15W 2000 0.75 IPX4 D50-15W 2000 0.75 IPX4 D80-15W 2000 0.75 IPX4 D100-15W 2000 0.75 IPX4 D120-15W 2000 0.75... - Page 5 2.2 Brief introduction of product structure Thermometer Shell Inner tank Anode Thermal insulation Heating element Power cord Cold water inlet Temperature adjusting knob Hot water outlet Power indicator light On/ Off Heating indicator light 100L 120L 1047 (Note:All dimensions are in mm) 2.3 Internal Wire Diagram Thermal Cut Out...
-
Page 6: Unit Installation
3. UNIT INSTALLATION 3.1 Installation Instruction ① This electrical water heater shall be installed on a solid wall. If the strength of the wall cannot bear the load equal to two times of the total weight of the heater filled fully with water, it is then necessary to install a special support. - Page 7 3.2 Pipelines Connection ① The dimension of each pipe part is G1/2” . ② Connection of pressure relief valve with the heater on the inlet of the water heater. ③ In order to avoid leakage when connecting the pipelines, the rubber seal gaskets provided with the heater must be added at the end of the threads to ensure leak proof joints (see Fig.4).
-
Page 8: Methods Of Using
NOTE Please be sure to use the accessories provided by our company to install this electric water heater. This electric water heater can not be hung on the support until it has been confirmed to be firm and reliable. Otherwise, the electric water heater may drop off from the wall, resulting in damage of the heater, even serious accidents of injury. -
Page 9: Troubleshooting
● The water heater is equipped with a thermal switch, which cuts off power supply of the heating element upon water overheating or its absence in the water heater. If the water heater is connected to the mains, but water is not heated and the indicator doesn’t light up, then the thermal switch was switched off or not switched on. - Page 10 The product is subject to change without notice. Please keep this manual properly. www.midea.com/global...
