Storage Electric Water Heater

KITCHEN PO SERIES

USER MANUAL

D10-20VI

D15-20VI

D30-20VI

Warning notices: Before using this product, please read this manual carefully and keep it for future reference.

The design and speciﬁcations are subject to change without prior notice for product improvement.

Consult with your dealer or manufacturer for details.

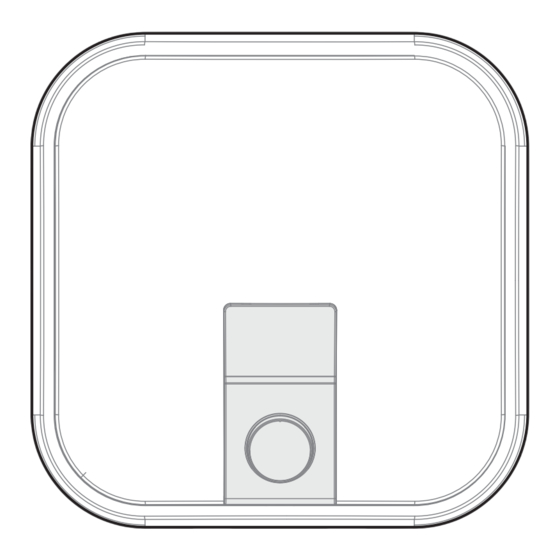

The diagram above is just for reference. Please take the appearance of the actual product as the standard.

Need help?

Do you have a question about the KITCHEN PO Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Midea KITCHEN PO Series

Page 1 Storage Electric Water Heater KITCHEN PO SERIES USER MANUAL D10-20VI D15-20VI D30-20VI Warning notices: Before using this product, please read this manual carefully and keep it for future reference. The design and speciﬁcations are subject to change without prior notice for product improvement.
Page 2 THANK YOU LETTER Thank you for choosing Midea! Before using your new Midea product, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance o ers in a safe way.
Page 3 SAFETY INSTRUCTIONS Intended Use The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. Please check the packaging and appliance on arrival to make sure everything is intact to ensure safe operation. If you ﬁnd any damage, please contact the retailer or dealer.
Page 4 The supply socket must be earthed reliably. The installation height of the supply ● socket must not be lower than 1.8m. The rated current of the socket must not be lower than 16A. The socket and plug must be kept dry to prevent electrical leakage. If the ﬂexible power supply cord is damaged, the special supply cord provided by the manufacturer must be selected, and replaced by the professional maintenance personnel.
Page 5 SPECIFICATIONS Product Model D10-20VI D15-20VI D30-20VI Volume(L) Rated Power(W) 2000 2000 2000 Rated Voltage(ACV) 220-240V~ 220-240V~ 220-240V~ Rated Pressure(MPa) 0.75 0.75 0.75 Max Of WaterTemperature(°C) Protection Class Water Proof Class IPX4 IPX4 IPX4 PRODUCT OVERVIEW Product (Note:All dimensions are in mm)
Page 6 Internal Wire Diagram Thermal Thermostat Cut Out Brown Blue Yellow/Green WIRING DIAGRAM Accessories Safety valve × 1 Wall hanging screw × 2 Plastic expansion pipe × 2...
Page 7 QUICK START GUIDE Before First Use CAUTION Fill the inner tank with water before use. 1. Plug in 2. Rotate the thermostat knob clockwise to adjust the temperature inside the water heater. Ground 3. When the water temperature reaches 4. Open the water outlet valve, you the adjusted temperature, the heating can use hot water.
Page 8 PRODUCT INSTALLATION Installation Instruction This electrical water heater shall be installed on a solid wall. If the strength of the wall cannot bear the load equal to two times of the total weight of the heater ﬁlled fully with water, it is then necessary to install a special support. Incase of hollow bricks wall, ensure to ﬁll it with cement concrete completely.
Page 9 Pipelines Connection The dimension of each pipe part is G1/2” ; The massive pressure of inlet should use Pa as the unit; The minimum pressure of inlet should use Pa as the unit. Connection of pressure relief valve with the heater on the inlet of the water heater. In order to avoid leakage when connecting the pipelines, the rubber seal gaskets provided with the heater must be added at the end of the threads to ensure leak proof joints (see Fig.4).
Page 10 Power cord Pressure relief valve Water inlet valve Triple joint Shower nozzle Hot water Cold water outlet inlet Water inlet valve Water pool Running water pipe Mixing valve Shower nozzle Mixing valve Water inlet valve Running water pipe Cold water Hot water inlet outlet...
Page 11 OPERATION INSTRUCTIONS Methods of using First, open any one of the outlet valves at the outlet of the water heater, then, open ● the inlet valve. The water heater gets ﬁlled with water. When water ﬂows out of the outlet pipe it implies that the heater has been ﬁlled fully with water, and the outlet valve can be closed.
Page 12 CLEANING AND MAINTENANCE Warning Do cut o power supply before maintenance, to avoid danger like electric shock. Check the power plug and outlet as often as possible. Secure electrical contact and also proper grounding must be provided. The plug and outlet must not heat excessively. If the heater is not used for a long time, especially in regions with low air temperature(be- low 0°C), it is nessary to drain water from the heater to prevent damage of the water heater, due to water freezing in the internal tank.(Refer Cautions in this manual for the...
Page 13 TROUBLESHOOTING Failures Reasons Treatment The heating Failures of the temperature Contact with the professional indicator controller. personnel for repair. light is o . The running water supply Wait for restoration of is cut o . running water supply. The hydraulic pressure is Use the heater again when the No water coming too low.
Page 14 Midea may constitute trademark infringement or unfair competition in violation of relevant laws. This manual is created by Midea and Midea reserves all copyrights thereof. No entity or individual may use, duplicate, modify, distribute in whole or in part this manual, or bundle or sell with other products without the prior written consent of Midea.
Page 15 European Economic Area. Further information are provided on request. You can contact our Data Protection O cer via MideaDPO@midea.com. To exercise your rights such as right to object your personal date being processed for direct marketing purposes, please contact us via...
Page 17 5 years from the date of purchase, subject to the excep�ons noted below. This warranty applies to Midea water heaters purchased in the following countries: Estonia, Latvia, Lithuania. In Finland and Sweden there is a standard 2 year warranty.
Page 18 A�en�on! If you have a problem with your water heater, ﬁrst contact your warranty service and use their recommenda�ons. Before this, it is prohibited to remove the water heater from the wall and send it to a store or service center, in which case the free warranty may be void. Attention! The warranty does not cover consumable parts such as anode and safety valve.
