8 Install the Unit

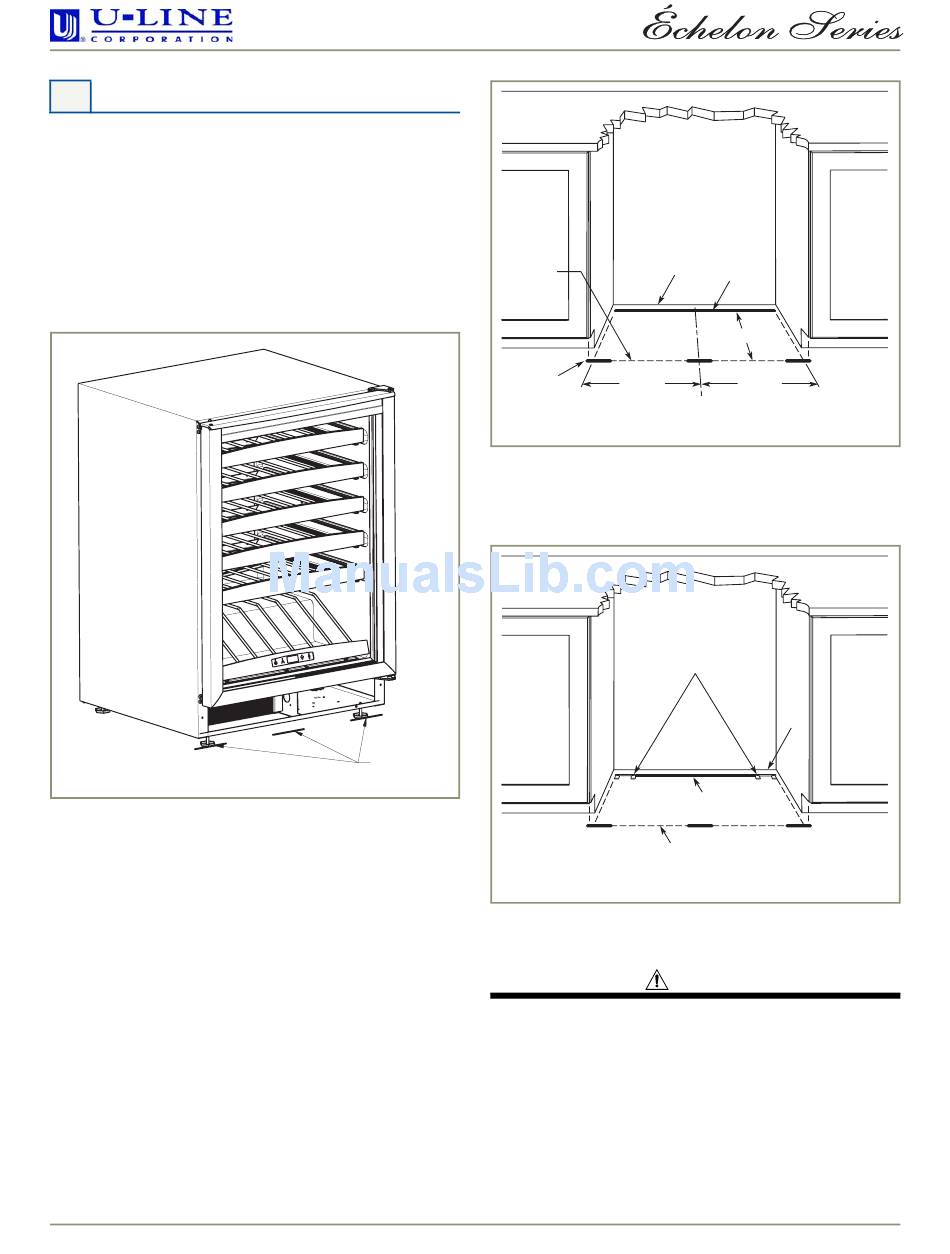

Anti-Tip Bracket Installation

1. Locate two Anti-Tip Brackets included inside the unit.
2. Place the unit into the area where it will be installed.
Check the door, sides and top for a proper fit. Also test
to make sure the door opens and closes freely.
3. Remove grill and place a mark on the floor at the front
of the unit. Also place a mark on the floor in the center
of the unit. See Figure 30.
Figure 30
4. Remove the unit. Using a square, extend a centerline
20-1/4" toward the back wall. See Figure 31. At the
back of the centerline, mark a line that measures
11-1/16" to the left and right. This line serves as the
back edge for the Anti-Tip Brackets and its furthest
points mark the outer edge of each bracket.
Note: Instructions are shown for built-in installation. Use
same dimensions for free-standing installation.
www.U-LineService.com
2175WC/2175WCOL Wine Captain
Marks on floor
14
®
Back
Wall
Front
of Unit
Marks
11 - 1/16"
on Floor
Figure 31
5. Place the Anti-Tip Brackets on the floor against the line
drawn for the outer edge. Mark spots for the screw
holes. See Figure 32.
Drill Holes and
Mount Anti-Tip
Brackets to Floor
Front
of Unit
Figure 32
6. Use a 1/8" drill to make two starter holes and fasten the
Anti-Tip Brackets to the floor using the screws provided.
CAUTION
Other hardware is required for floors made of materials
other than wood.
7. Place the unit back into position, making sure the feet
engage the Anti-Tip Brackets properly. Check the
alignment of the lines made on the floor in Step 3 with
the position of the front feet to ensure proper
positioning.
Line Marks
Back
of Unit
20 - 1/4"
11 - 1/16"
Centerline
Back
Wall
Back
of Unit
