Checking Door Alignment; Adjusting Door Alignment - U-Line Echelon 2175WC Installation Manual

5 Adjust Door

Checking Door Alignment

The unit's door is aligned at the factory before shipment.
However, its alignment could have been disturbed during
shipment or during overlay frame installation.
IMPORTANT
Properly aligned, the door should be 1/8" below the top of
the unit's cabinet, NOT flush with the top (see Figure 23).
1/8"

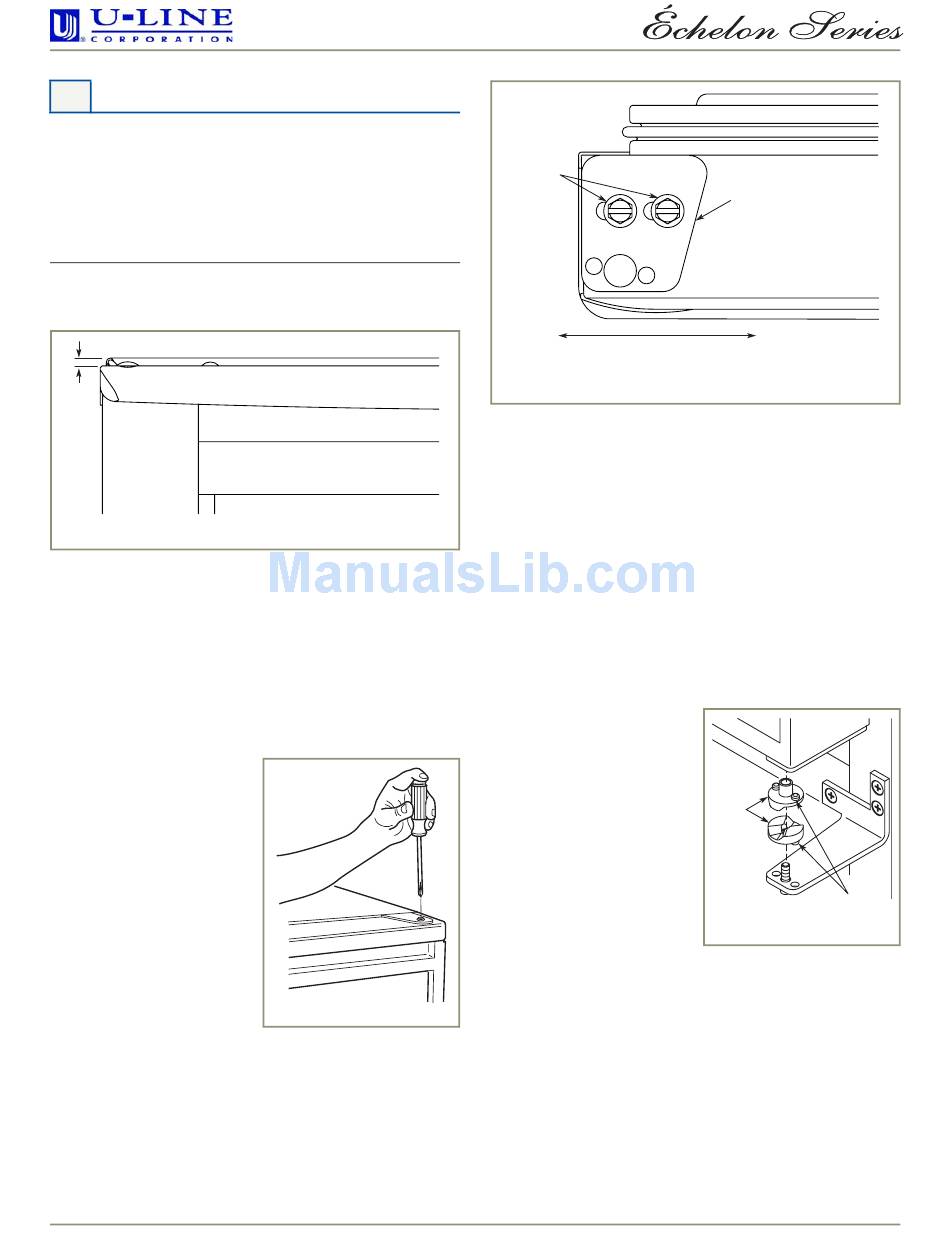

Figure 23
1. Compare the top edge of the door to the top edge of
the cabinet.
2. If the door edge is 1/8" below and parallel to the top of
the cabinet, go on to 6 Prepare Power Supply. If it is
not, note whether the side opposite the hinge needs to
be moved UP or DOWN, and use the following
procedure.

Adjusting Door Alignment

1. Remove top hinge screw
pin (Phillips screwdriver,
see Figure 24). Remove
door by tilting forward
and lifting off bottom
hinge pin.
2. With door upside-down,
loosen but do not remove
the two screws on the
door's bottom hinge plate.
www.U-LineService.com
2175WC/2175WCOL Wine Captain
Figure 24
ULIN_0133_A
®
Slotted
Mounting
Holes
Raise
Outside
Door Edge
Figure 25
3. See Figure 25. If the top far edge of the door needs to
move UP, move the hinge plate toward the outside of
the door and retighten screws. If the top far edge of the
door needs to move DOWN, move the hinge plate
toward the inside of the door and retighten screws.
4. Mount the door to recheck alignment and repeat
Steps 2 and 3 if further adjustment is necessary.
5. When top edge of door is parallel to top edge of
cabinet, remove the door and ensure the two screws
are secure.
6. Remove the door closers from the bottom hinge, clean
thoroughly and lubricate the mating surfaces with
petroleum jelly.
7. Reinstall the closers, lining
up the bosses with holes in
hinge and hinge plate (see
Figure 26).
8. Mount the door, install top
hinge pivot pin and go on
to 6 Prepare Power
Supply.
12
Angled Edge
Towards Center
of Door
Lower
Outside
Door Edge
Door
Closer
Inserts
Boss
Figure 26
06/2006
