U-Line Wine Captain 2115WC Use And Care Manual
Echelon series
Hide thumbs
Also See for Wine Captain 2115WC:
- Installation manual (16 pages) ,
- Specifications (2 pages) ,
- Features and specifications (2 pages)
Related Manuals for U-Line Wine Captain 2115WC
Summary of Contents for U-Line Wine Captain 2115WC
-

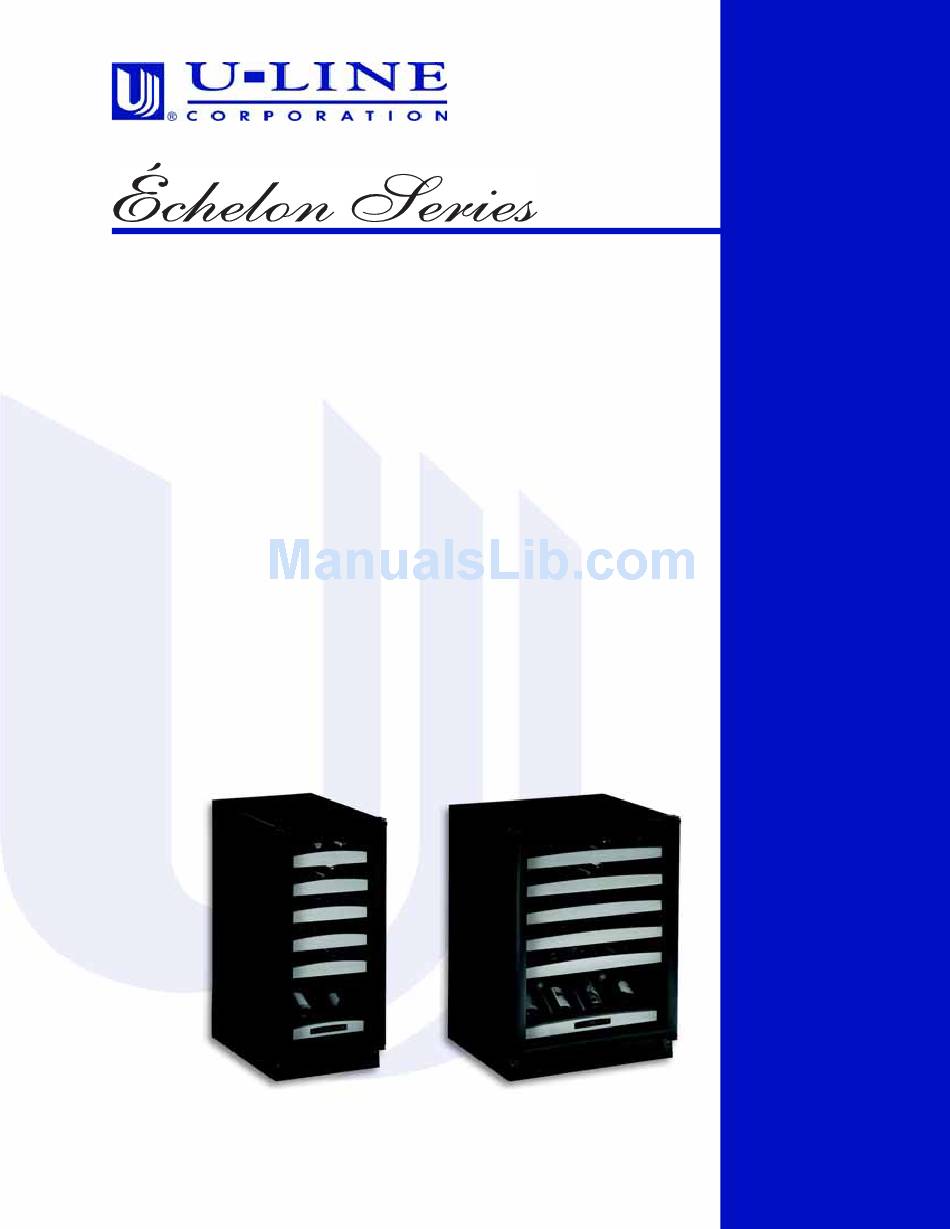

Page 1: Use And Care Guide
Use and Care Guide ® Wine Captain Models: 2115WC and 2115WCOL 2175WC and 2175WCOL 2115WC 2175WC... -
Page 2: Introduction
If your product registration is not on file and a request for warranty coverage is received, the date of sale to the U-Line Selling Dealer or Distributor will be established as the first date of warranty coverage for your product. -
Page 3: Table Of Contents
Cleaning and Maintenance ...13 General Cleaning ...13 Maintenance ...13 Service ...19 Before Calling for Service ...19 If Service is Required ...19 Replacement Parts ...19 Troubleshooting Guide ...20 Electronic Control Quick Guide ...21 U-Line Corporation Limited Warranty ...23 2115WC and 2115WCOL, 2175WC and 2175WCOL... - Page 4 This page intentionally left blank 2115WC and 2115WCOL, 2175WC and 2175WCOL...
-
Page 5: Safety Precautions
An INSTALLATION GUIDE for your unit, providing complete installation information is available from U-Line Corporation directly, and must be consulted before any installation is begun. U-Line contact information appears on the rear cover of this guide. -
Page 6: Product Features
The corks remain moist, which keeps air from entering the bottles. Models 2115WC and 2115WCOL will accommodate up to 24 bottles (750 mL size), and Models 2175WC and 2175WCOL will accommodate up to 48 bottles (750 mL size). -
Page 7: Operation
A grille, located in the base of the unit, must not be blocked at any time, or your unit will not perform as expected. Initial Startup All U-Line units are shipped with controls that are preset. No initial adjustments are required. IMPORTANT IMPORTANT U-Line recommends the unit be allowed to run overnight prior to loading with product. - Page 8 3. To return to the previous mode, repeat Step 1. Temperature Display Selection U-Line products supplied for 110 VAC operation have temperatures displayed in a default Fahrenheit (°F) configuration (Figure 4, 3). Models supplied for 220 VAC operation have temperatures displayed in a default Celsius (°C) configuration.
-
Page 9: Normal Operating Sounds
• Automatic Defrost/Drain Pan: Water may be heard dripping or running into the drain pan when the unit is in the defrost cycle. 2115WC and 2115WCOL, 2175WC and 2175WCOL Wine Stocking Recommendations Specially designed wine racks allow for the proper horizontal storage of wine. -
Page 10: Storage, Vacation, Moving
But there is so much more to true wine appreciation. Many secrets are simply too good to keep bottled up. The U-Line Corporation is proud to present Spilling Wine Secrets online at www.U-Line.com/resources/wine_secrets. Take a... -
Page 11: Suggestions For Matching Food And Wine
Wines Fish, Shell Fish, Crab, Oysters Dry White Wines, Light Sparkling or Extra Dry Champagne Beef, Venison Full-Bodied Red Wines Pork, Veal, Lamb and Poultry Light-Bodied Red Wines Fruit Sweet White and Sparkling Wines 2115WC and 2115WCOL, 2175WC and 2175WCOL... -
Page 12: Guide To Common Styles Of Wine
Tannins are extracted from the grape skins and stems and are necessary for a well-balanced red wine. Tannins are easily identified in wine tasting as the drying sensation over the gums. Tannins generally fade as a wine ages. 2115WC and 2115WCOL, 2175WC and 2175WCOL California French... -
Page 13: Cleaning And Maintenance
2115WC and 2115WCOL, 2175WC and 2175WCOL Maintenance Proper maintenance of your U-Line product will ensure efficiency, top performance and long life. The maintenance intervals listed are based on normal conditions. You may want to shorten the intervals if you have pets or other special considerations. -
Page 14: Condenser Cleaning
WARNING DO NOT touch the condenser fins. The condenser fins are SHARP and can be easily damaged. 2115WC and 2115WCOL, 2175WC and 2175WCOL DO NOT use any type of cleaner on the condenser unit. 4. Clean the condenser coil (Figure 11, 2) using a soft brush with a “combing”... -
Page 15: Door Alignment Check And Adjustment
2. Remove the top hinge pivot pin with a Phillips screwdriver (Figure 15) and lift door off bottom hinge pin. Be careful not to lose the door closer insert sets. 2115WC and 2115WCOL, 2175WC and 2175WCOL 3. Turn the door upside down and inspect the hinge plate mounting holes. -
Page 16: Door Reversal
Door Reversal Figure 18 All U-Line black units may be left- or right-hand opening. Stainless steel unit doors cannot be reversed. The doors are easily reversed by moving the hinge hardware to the opposite side. The top hinge hardware will be used on the bottom of the other side and the bottom hinge hardware will be used on the top of the other side (Figure 18). -
Page 17: Light Bulb Replacement
3. Replace the bulb only with a genuine U-Line P/N 31317 replacement. 4. Replace the lens by first inserting the tab side back into the housing at a slight angle. -
Page 18: Wine Rack Removal/Installation
The trim on the racks may be coated with a final finish or stained. 2115WC and 2115WCOL, 2175WC and 2175WCOL To prevent permanent damage to the inner liner of your unit, the wood trim MUST be removed from the unit for staining and/or finishing. -
Page 19: Service
2115WC and 2115WCOL, 2175WC and 2175WCOL 8 Service Before Calling for Service If your U-Line product appears to be malfunctioning, read through the OPERATION section of this guide to ensure that the function of all controls are clearly understood. If... -
Page 20: Troubleshooting Guide
The unit frosts up. High ambient temperatures or humidity Door gasket not sealing 2115WC and 2115WCOL, 2175WC and 2175WCOL REMEDY Plug unit in or check circuit breaker. Tighten or replace bulb (See MAINTENANCE; LIGHT BULB REPLACEMENT). Exit blackout/Sabbath mode (not Star K certified) (See OPERATION;... -
Page 21: Electronic Control Quick Guide
(Office Mode) NOTE: 38°F is an example; the display will vary with actual set-point. Factory recommended set-point is 38°F for refrigerators and beverage centers, and 50°F for wine coolers. 2115WC and 2115WCOL, 2175WC and 2175WCOL Touch Release when °F flashes. - Page 22 This page intentionally left blank 2115WC and 2115WCOL, 2175WC and 2175WCOL...
-
Page 23: U-Line Corporation Limited Warranty
During the initial one-year warranty period for all U-Line products U-Line shall: (1) at U-Lines option, repair any product or replace any part of a product that breaches this warranty;... - Page 24 When you need replacement parts, always request genuine U-Line replacements be used. Visit www.U-Line.com to locate a parts distributor in your area. U-Line Corporation, located in Milwaukee, WI, is a family operated manufacturer of built-in undercounter ice makers, Combo ice maker/refrigerators, Wine Captain ®...
