https://www.phoenixcontact.com/us/products/2903808

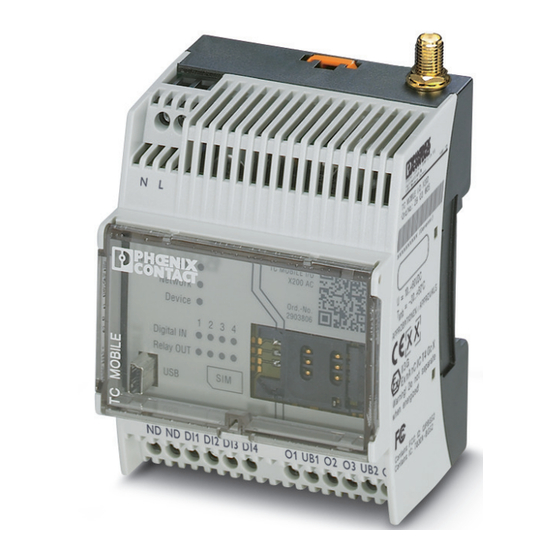

Signaling system - TC MOBILE I/O X300 AC - 2903808
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Your advantages
GPRS messaging system for remote control of outputs
Alarm generation on voltage failure via SMS
GSM mobile phone network: 850, 900, 1800, and 1900 MHz
Communication via ODP protocol
Data transmission either online or as historical values with time stamp
Configuration via USB and web browser
Compact design also for domestic installations (4 HP, DIN 43880)
Mounting on DIN rail or on the wall
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
Technical data
Note
Utilization restriction
Dimensions
Compact signaling system for cellular networks to monitor digital values as well as to switch relay outputs
remotely. Communication is via the ODP protocol to an ODP server using GPRS. Supply voltage range of 93 V ...
250 V AC.
1
4046356768863
85176200
EMC: class A product, see manufacturer's declaration in the download
area
Use in potentially explosive areas is not permitted in China.
03/20/2021 Page 1 / 7
Advertisement
Related Manuals for Phoenix Contact TC MOBILE I/O X300 AC
Summary of Contents for Phoenix Contact TC MOBILE I/O X300 AC
- Page 1 Signaling system - TC MOBILE I/O X300 AC - 2903808 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download)
-
Page 2: Technical Data
Signaling system - TC MOBILE I/O X300 AC - 2903808 Technical data Dimensions Width 72 mm Height 90 mm Depth 62 mm Ambient conditions -25 °C ... 70 °C (SMS mode only, note the derating information in the Ambient temperature (operation) technical documentation for data connection) Ambient temperature (storage/transport) -40 °C ... - Page 3 Signaling system - TC MOBILE I/O X300 AC - 2903808 Technical data Wireless interface Interface description GSM / GPRS Frequency range 850 MHz (2 W (EGSM)) 900 MHz (2 W (EGSM)) 1800 MHz (1 W (EGSM)) 1900 MHz (1 W (EGSM)) GPRS Multislot Class 10 Function...
-
Page 4: Standards And Regulations
Signaling system - TC MOBILE I/O X300 AC - 2903808 Technical data Standards and Regulations Signal ± 1 kV (Data line, asymmetrical) Standards/regulations EN 61000-4-6 Frequency range 0.15 MHz ... 80 MHz Conducted noise emission Class B, area of application: Industry and residential Standards/regulations EN 61000-4-11 EN 50360... -
Page 5: Schematic Diagram
Signaling system - TC MOBILE I/O X300 AC - 2903808 Schematic diagram Schematic diagram Connecting the supply voltage Wall mounting Schematic diagram Schematic diagram 0,5-0,6 Nm 5-7 lb In TC MOBILE I/O Reset Network Device 1 2 3 4 Digital Relay OUT S I M... - Page 6 Signaling system - TC MOBILE I/O X300 AC - 2903808 Schematic diagram S I M S I M v i c v i c g i t g i t l a y l a y S I M S I M Insert the SIM card...
- Page 7 Signaling system - TC MOBILE I/O X300 AC - 2903808 Classifications UNSPSC UNSPSC 6.01 30211506 UNSPSC 7.0901 39121008 UNSPSC 11 39121008 UNSPSC 12.01 39121008 UNSPSC 13.2 43222604 UNSPSC 18.0 32151602 UNSPSC 19.0 32151602 UNSPSC 20.0 32151602 UNSPSC 21.0 32151602 Phoenix Contact 2021 © - all rights reserved http://www.phoenixcontact.com 03/20/2021 Page 7 / 7...
