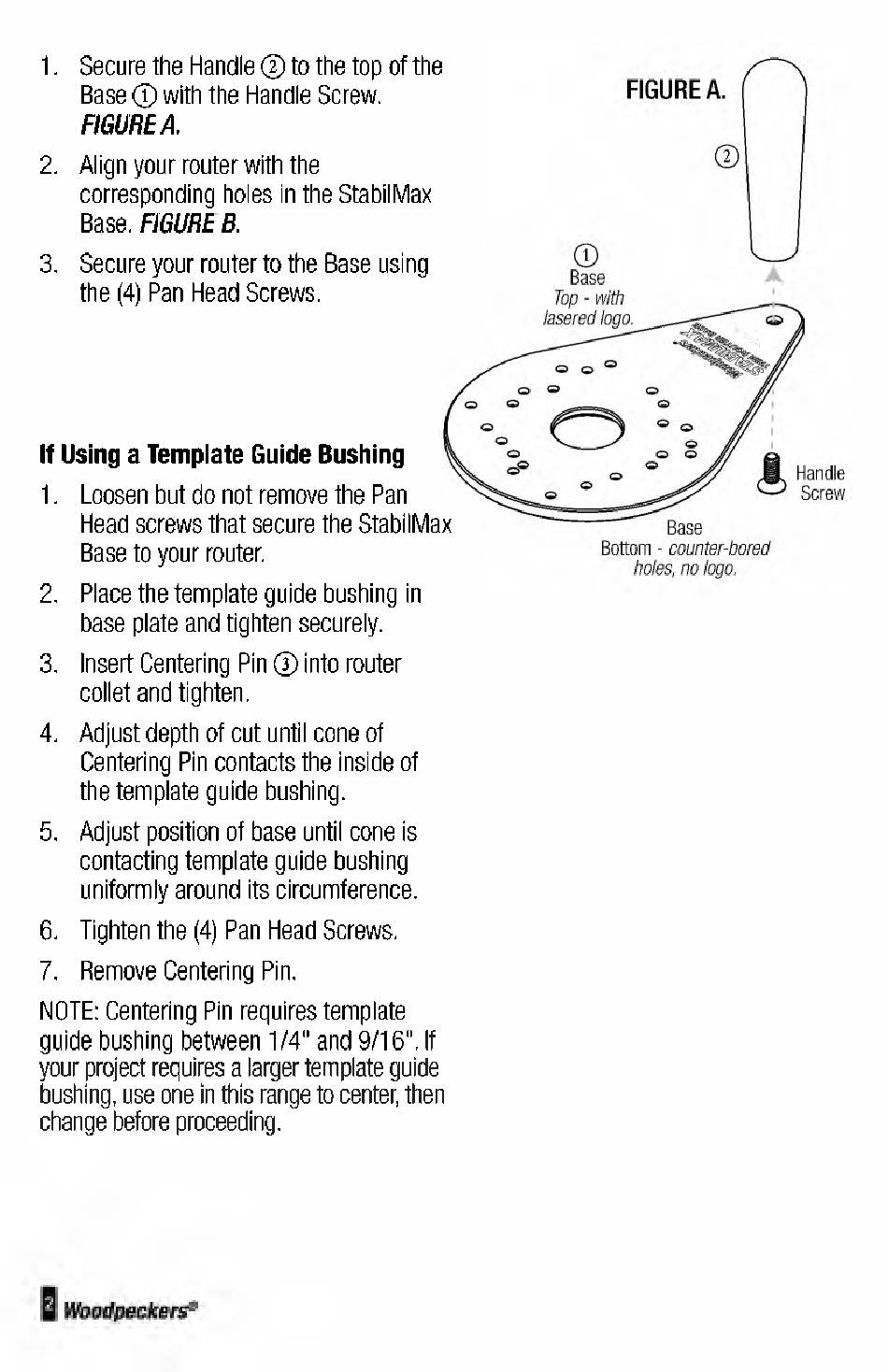

1. Secure the Handle 2 to the top of the
Base 1 with the Handle Screw.
IGURE A.
2. Align your router with the
corresponding holes in the StabilMax
Base. IGURE B .
3. Secure your router to the Base using
the (4) Pan Head Screws.
If Using a emplate Guide Bushing
1. Loosen but do not remove the Pan
Head screws that secure the StabilMax
Base to your router.
2. Place the template guide bushing in
base plate and tighten securely.
3. Insert Centering Pin 3 into router
collet and tighten.
4. Adjust depth of cut until cone of
Centering Pin contacts the inside of
the template guide bushing.
5. Adjust position of base until cone is
contacting template guide bushing
uniformly around its circumference.
6. Tighten the (4) Pan Head Screws.
7. Remove Centering Pin.
N TE: Centering Pin requires template
guide bushing between 1/4 " and 9/16 ". If
your project requires a larger template guide
bushing, use one in this range to center, then
change before proceeding.
