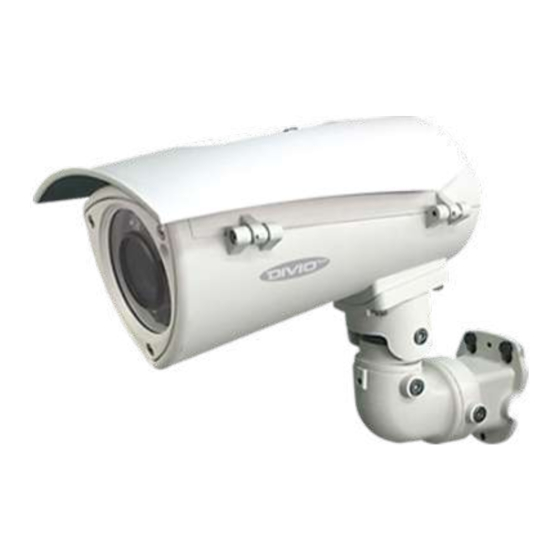

IP Camera
TBR927 and TBR927-W
User Manual
Released on 2024.01.12
Note: The manual is subject to change without notice

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TBR927 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DivioTec TBR927

Summary of Contents for DivioTec TBR927

  • Page 1 IP Camera TBR927 and TBR927-W User Manual Released on 2024.01.12 Note: The manual is subject to change without notice...

  • Page 2: Table Of Contents

    Network - FTP ..................33 Cable Outlet Description .................. 7 Network - SSL ..................34 Hardware Installation ..................8 Network - 802.1x ................... 35 axis Angle Adjustment .................. 9 TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.
  • Page 3 Event - SMTP Notification ..............56 Event - Network Storage ............... 58 Event - Relay Handler ................60 Event - SD Record Handler ..............61 Event - TCP Notify ................. 63 TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.

  • Page 4: Preface

    ▪ Follow all warnings and cautions in this manual. any form or by any means without the prior written consent from DivioTec ▪ Do not place the unit on an unstable surface, cart, or stand.

  • Page 5: Rohs Compliance

    (Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB) < 0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or 1,000ppm. In order to meet the RoHS compliant directives, DivioTec has established an engineering and manufacturing task force to implement the introduction of green products.

  • Page 6: Installation Recommendations

    2. Maintenance: to keep the unit clean, use only approved cleaning products or clean with a dry cloth. Copyright © 2024 DivioTec INC. All Rights Reserved. TBR927 and TBR927-W User Manual...

  • Page 7: Conventions Used In This Manual

    This will prevent injury to yourself when performing a task. Caution: Information to avoid damaging components or losing data. Note: Provides additional information to complete a task easily. Copyright © 2024 DivioTec INC. All Rights Reserved. viii Tbr927 and TBR927-W User Manual...

  • Page 8: Package Contents

    Preface Package Contents The TBR927 and TBR927-W package contain the following accessories: Name Quantity Placement sticker Quick installation guide Mounting accessory kit Waterproof connector 3-axis cable concealed wall mount bracket Dehumidifier packet Wall mount base Placement sticker Quick installation Mounting accessory...

  • Page 9: Chapter 1: Product Introduction

    ▪ IR LED 45M / White LED 15M ▪ Capture Plate Distance 10M~20M ▪ Support De-icing function ▪ 5mm -- 50mm Advance P-Iris ▪ 120 dB True WDR TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.

  • Page 11: Hardware Specifications

    Night, Anti-flicker, AWB, BLC, Corridor NTP, uPnP, ONVIF, IPv4/v6, SNMP,SSL, LDAP, 802.1x, BT28181, SSH ▪ Browser: Internet Explorer, Chrome, Firefox, Safari ▪ Security: Multi-level passwords/ HTTP encryption TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.
  • Page 12 ▪ NWT: 3kg ▪ DC/AC: DC 12V/AC 24V terminal block ▪ GWT: 3.1kg ▪ PoE: Yes/IEEE 802.3at (PoE+) ▪ Dimension: 311mm (D) x 286mm (W) x 178mm (H) TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.

  • Page 13: Di/O & Function Description

    3-1 Ethernet / PoE 3-5 Micro SD SB Module Dehumidier Packet 3-2 DC 12V / AC 24V 3-6 DI/DO 3-3 Line-out 3-7 Reset 3-4 Line-in 3-8 Default Rotate Rotate Rotate TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.

  • Page 14: Di/O Pin Definition & Waterproof Connector Description

    Waterproof connector No. Description Pin Description No. Description AC24V/DC12V (+) ALM_IN (+) Gasket AC24V/DC12V (-) ALM_IN (-) Main body ALM_out_NC Tightening collar ALM_out_COM Strain relief ALM_out_NO Seal nut TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.

  • Page 15: Cable Wiring Description

    Ethernet cable and plug it into the corresponding port on the MB module. 5. Close the camera’s top cover and secure it with the supplied hardware tool to complete. TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.

  • Page 16: Cable Outlet Description

    2. The left one features four wire holes. Please cover unused holes with sealing plugs to prevent water from entering. 3. Applicable cable diameter: * Ø 1.8~2.5mm (Left) * Ø 4.7~6.9mm (Right) TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.

  • Page 17: Hardware Installation

    Then, attach and secure the wall mount bracket to the wall mount plate with two M5 screws. Next, install the waterproof connectors onto the cables on the front of the wall mount bracket. TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.

  • Page 18: 3- Axis Angle Adjustment

    180°. Loosen the left and right screws depicted below to adjust the horizontal tilt angle and then tighten the screws after finishing the adjustment. TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.

  • Page 19: Chapter 2: Camera Configuration

    You can access the camera via a web browser or IP-FINDER software. The program. following information outlines the instructions for each method. 4. Click the Next button on the welcome screen to continue. TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.
  • Page 20 Cost button, a pop-up window will appear on the screen to show the disk information. 5.3 Specify which user accounts on the computer can access the program, the options are Everyone and Just me. TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.
  • Page 21 6. Click on Next button to begin installation. 7. Once the installation process is completed, click on Close button to finish. A shortcut will be created on the desktop. TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.

  • Page 22: Ip-Finder

    Search button. The cameras displayed in the Camera list are based on the camera that you have connected. TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.

  • Page 23: Introduction To The Ip-Finder User Interface

    Device Mark IP” and, “Firmware Upgrade” functions. NOTE: Different IP camera models use different firmwares, please Do NOT update the firmware of different models using the same firmware. TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.

  • Page 24: Web Browser

    The recommended browsers to use are Chrome, Edge, Firefox, and Safari. However, Chrome only supports the viewing of the web menu; of the video stream is not supported. TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.

  • Page 25: Live View

    Take an image snapshot from the camera, you will be prompted to store the image file onto the computer’s hard drive. Pause Press to stop the live video or press again to restart. TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.

  • Page 26: Configuring The Camera's Setting

    Event: Alarm Handler / Motion Detection / Tampering Alarm / Network Loss Detection / FTP Upload / SMTP / Network Storage / Relay Handler / SD Record Handler / Playback / TCP Notify TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.

  • Page 27: Video - Video Configuration

    1~255. Bit Rate Configure the bit rate, the range is 500~12000. Users can enter a value or adjust it through the slider bar. TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.
  • Page 28 1~255. Bit Rate Configure the bit rate, the range is 500~8000. Users can enter a value or adjust it through the slider bar. TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.
  • Page 29 High, Normal, and Low. Frame Rate Adjust the frame rate of the video stream, the range is 1~30FPS. The stream will be off if 0 is selected. TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.

  • Page 30: Video - Audio Configuration

    Audio Out Enable or disable audio-out on the camera. Audio Out Volume Volume adjustment for audio-out of the camera, the available options are High, Mid, and Low. TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.

  • Page 31: Video - Digital Zoom

    When enabled, a zoom controller panel ( ) will appear at the bottom of the screen to move the digital zoom area toward four different directions in steps. TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.

  • Page 32: Image - Exposure

    (the range is 1/3~1/50000) and Minimum Exposure Time (the range is 1/3~ 1/50000) manually. Exposure Time The range is 1/3~1/50000. It is available for editing when Lock is selected in the Mode. TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.
  • Page 33 Enable this function to remove fog or moisture. The available options are OFF, Low, Medium, and High. Noise Reduction Enable this function to reduce noise. The available options are OFF, Low, Medium, and High. TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.
  • Page 34 The available options are OFF, Auto, Always ON, High, Medium, and Low. IR Cut Control Select the IR cut control mode to use. The available options are AUTO, Force Day, and Force Night. TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.

  • Page 35: Image - Basic Settings

    Configure the contrast of the image, the range is 0~100, with 0 being the lowest contrast. Enter a value or adjust the bar to increase or decrease the value. The default value is 50. TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.
  • Page 36 Discard all the settings applied to the image and reset to the default settings. Default All Image Settings Discard all the settings applied to the image and revert to the previous settings. TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.

  • Page 37: Image - Roi

    Press the Set Area button for the setting to take effect. The ROI area will then be seen on the video stream. Press the Del Area button or select OFF (step 1) to delete the ROI area. TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.

  • Page 38: Image - Privacy Zone

    Mask will be seen on the video stream. Press the (Del Area) button or select OFF (step 1) to delete the privacy zone. TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.

  • Page 39: Image - Osd

    Custom Text: A customized text can be specified here. Save Apply the configuration settings. Click on (Save) button once all the settings are confirmed for the new changes to take effect. TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.

  • Page 40: Network - Basic

    IPv6 Auto There are 3 modes to be selected: Stateless, Stateless DHCP, and Stateful DHCP, enable IPv6 Auto then the address prefix won’t be able to be inputted. TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.
  • Page 41 100Mbps Half Duplex, 10Mbps Full Duplex, and 10Mbps Half Duplex. Save Save button to apply the configurations, click on this button once all the settings are confirmed for the new changes to take effect. TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.

  • Page 42: Network - Ftp

    1~10. Save Save button to apply the configurations, click on this button once all the settings are confirmed for the new changes to take effect. TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.

  • Page 43: Network - Ssl

    You can find reference images for each option below. Save Save button to apply the configurations, click on this button once all the settings are confirmed for the new changes to take effect. TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.

  • Page 44: Network - 802.1X

    Save Save button to apply the configurations, click on this button once all the settings are confirmed for the new changes to take effect. TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.

  • Page 45: Network - Snmp

    Save button to apply the configurations, click on this button once all the Download MIB settings are confirmed for the new changes to take effect. Download MIB file for SNMP. TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.

  • Page 46: Network - Firewall

    A total of 8 IP addresses can be added to the list. Save Save button to apply the configurations, click on this button once all the settings are confirmed for the new changes to take effect. TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.

  • Page 47: Network - Ldap

    Upload the certificate for checking the server’s identity. Save Save button to apply the configurations, click on this button once all the settings are confirmed for the new changes to take effect. TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.

  • Page 48: Network - Ddns

    Type the same password again for confirmation. Save Save button to apply the configurations, click on this button once all the settings are confirmed for the new changes to take effect. TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.

  • Page 49: Network - Rtsp

    Default URL Path of Stream 1 to Stream 3 Stream 1: rtsp://cameraIP/stream1 Stream 2: rtsp://cameraIP/stream2 Stream 3: rtsp://cameraIP/stream3 TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.
  • Page 50 Configure the port number of the html meta. Path Configure the URL address of the video stream. Configure the time-to-live threshold of the multicast datagram before it is discarded by the router. TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.

  • Page 51: Network - Bonjour / Upnp

    Universal Plug and Play is a service that allows devices on the same local network to discover each other and automatically connect through standard networking protocols (such as TCP/IP HTTP, and DHCP). TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.

  • Page 52: System - Date / Time

    Select the time zone relevant to your location in the drop-down menu. Save Save button to apply the configurations, click on this button once all the settings are confirmed for the new changes to take effect. TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.

  • Page 53: System - Maintenance

    Reset to Default Click this button to restore all the camera’s setting back to factory default except IP address (keeps all the settings on the Network Basic setting page). TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.
  • Page 54 Update and Restore Click on the Choose File button and locate the backup file, once the file is selected, press the Update and Restore button to restore camera settings. TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.
  • Page 55 Option to switch between NTSC or PAL video system. The camera will restart and reset to default after switching the video system. Focus D/N Auto Focus Calibration Enable Day & Night focus calibration. TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.

  • Page 56: System - User Management

    Information. Press Give Up to User delete the new user if you do not want to set up continually. To delete an account, press the Delete User button. TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.
  • Page 57 Username must be at least 1 and up to 16 characters. Password Password must be at least 1 and up to 16 characters. Re-type Password Retype the same password to confirm. TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.

  • Page 58: System - Homepage Layout

    Upload button. The image file format should be GIF, JPG, or PNG, it will be resized to 240x40 pixel to replace the previous logo. TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.

  • Page 59: Event - Alarm Handler

    Save button to apply the configurations, click on this button once all the settings are confirmed for the new changes to take effect. Close Press to exit the schedule setting page. TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.

  • Page 60: Event - Motion Detection

    Repeat the above steps to create motion areas for zones 2 to 5. To delete an area, find the motion zone number you would like to remove, and press the Del Area button. TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.
  • Page 61 Save button to apply the configurations, click on this button once all the settings are confirmed for the new changes to take effect. Close Press to exit the schedule setting page. TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.

  • Page 62: Event - Tampering Alarm

    Save button to apply the configurations, click on this button once all the settings are confirmed for the new changes to take effect. Close Press to exit the schedule setting page. TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.

  • Page 63: Event - Network Loss Detection

    Chapter 2: Camera Configuration Event - Network Loss Detection Network Loss Detection Configurations Enable Enable or disable the network loss detection function. TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.

  • Page 64: Event - Ftp Upload

    Specify the login username for the FTP server. Password Specify the login password for the FTP server. Image Destination Sub Folder or Single Folder as options to be chooses. TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.

  • Page 65: Event - Smtp Notification

    Subject Specify the subject of the message. Message Specify the message content. Attach JPEG Snapshot Enable or disable e-mail delivery of trigger event snapshots. TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.
  • Page 66 Save Save button to apply the configurations, click on this button once all the settings are confirmed for the new changes to take effect. TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.

  • Page 67: Event - Network Storage

    Specify the IP address of the network storage server. Share Specify the shared folder name on the network storage server. Record Type Specify the event trigger action. The options are Snapshot and Video. TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.
  • Page 68 Network Storage Status Save Save button to apply the configurations, click on this button once all the settings are confirmed for the new changes to take effect. TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.

  • Page 69: Event - Relay Handler

    Save button to apply the configurations, click on this button once all the settings are confirmed for the new changes to take effect. Configure the seconds from 0 to 30 seconds. TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.

  • Page 70: Event - Sd Record Handler

    Display whether an SD card is installed or not. If an SD card is detected, ok will be displayed; if an SD card is not detected (or a faulty SD card is used), not_mounted will be displayed. TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.
  • Page 71 Enable or disable SD card overwrite. Record Type Configure the recording type to record the stream on to the SD card. The options are Video and Snapshot. TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.

  • Page 72: Event - Tcp Notify

    • Trigger Tempering Detection • IP Address Configure the number of address Port Configure the port number. The range is 1025~65535. Message Input messages for the detection. TBR927 and TBR927-W User Manual Copyright © 2024 DivioTec INC. All Rights Reserved.
