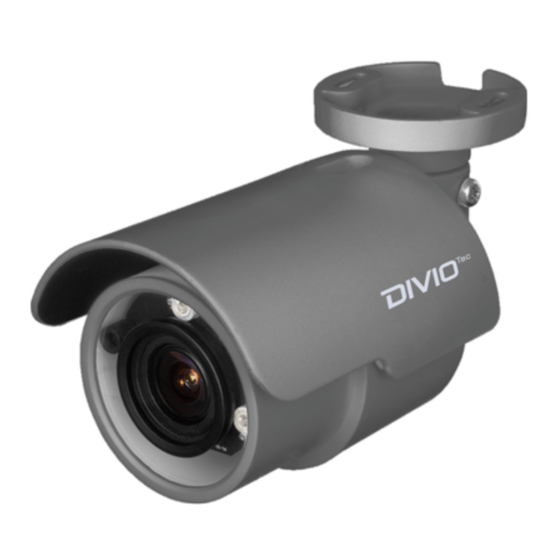

- Page 1 Full HD Multi-Streams Extreme WDR Compact Bullet IP Camera NBR225P User’s Manual Ver. 1.4 001B0JXXZ1A4...
-
Page 2: Table Of Contents
Table of Contents Overview ..........................2 Features ........................2 Package Contents ....................... 3 Dimensions ........................4 Function Cables ......................5 Micro SD Card Slot / Default Button ................6 Camera Cabling ........................7 Power Connection ....................... 7 Ethernet Cable Connection ..................7 Waterproof Cable Connector .................. -
Page 3: Overview
Overview The Full HD Multi-Streams Extreme WDR Compact Bullet IP Camera supports both H.264 and MJPEG standard. The H.264 encoder performance is up to 1080P at 60 fps. Also, the camera can supply dual full HD 1080P real-time streaming. With more computing power, the camera could provide more flexibility for users and system managers. -
Page 4: Package Contents
Package Contents Please check the package containing the following items listed below. Full HD Multi-Streams Extreme WDR Compact Bullet IP Camera with Vari-Focal Lens Self-Tapping Screw Plastic Screw Anchor (x5) (x5) Quick Guide (bundled software and documentation) NOTE: The supplied self-tapping screws are for soft substances / materials such as wood. -
Page 5: Dimensions
Dimensions The dimensions of the camera are shown below. -
Page 6: Function Cables
Function Cables RJ-45 & DC 12V Cable Pin Definition Connector Definition RJ-45 For network and PoE connection Power Jack (DC 12V) Power connection... -
Page 7: Micro Sd Card Slot / Default Button
Micro SD Card Slot / Default Button The positions of the microSD card slot and the default button are shown as below. Vari-Focal Lens microSD Card Slot Insert the microSD card into the card slot to store videos and snapshots. Do not remove the microSD card when the camera is powered on. -
Page 8: Camera Cabling
Camera Cabling Before users connect cables, make sure that all cables and the power adaptor are placed in dry and well-waterproofed environments, e.g. waterproof boxes. The purpose is to prevent moisture accumulation inside the camera and moisture penetration into cables, which might lead to camera breakdown. Please follow the instructions below to complete camera connection. -
Page 9: Waterproof Cable Connector
Waterproof Cable Connector Follow the instruction below to waterproof the connectors. RJ-45 & DC 12V Cable Follow the steps below to waterproof the connectors of the All-in-One cable. Step 1: Connect the required devices to the RJ-45 & DC 12V cable and coat the joints with silicone gel. -
Page 10: System Requirements
System Requirements To perform the IP camera via web browser, please ensure the PC is in good network connection, and meet system requirements as described below. Items System Requirement ® ® 1. Intel Pentium M, 2.16 GHz or ® Personal Computer Intel Core 2 Duo, 2.0 GHz... -
Page 11: Access Camera
Access Camera For initial access to the camera, users can search the camera through the installer program: DeviceSearch.exe, which can be found in “Device Search” folder in the supplied CD. Accessing the Camera by Device Search Software Step 1: Double click on the program Device Search.exe. Step 2: After its window appears, click on the <Device Search>... - Page 12 Step 8: A prompt window requesting for default username and password will appear. Enter the default username and password shown below to login to the camera. Login ID Password Admin 1234 NOTE: ID and password are case sensitive. NOTE: It is strongly advised that administrator’s password be altered for the security concerns.
- Page 13 Once the Viewer is successfully installed, the Home page of the IP camera will be displayed as the figure below.
-
Page 14: Setup Video Resolution
Setup Video Resolution Users can setup video resolution on Video Format page of the user-friendly browser-based configuration interface. Video Format can be found under this path: Streaming> Video Format. The default values of video resolution are as below. H.264- 1920 x 1080 (25/30 fps) + H.264- 720 x 576 (25 fps) / H.264- 720 x 480 (30 fps) H.264- 1920 x 1080 (25/30 fps) + H.264- 640 x 480 (25/30 fps) -
Page 15: Configuration Files Export / Import
Configuration Files Export / Import To export / import configuration files, users can access the Maintenance page on the user-friendly browser-based configuration interface. The Maintenance setting can be found under this path: System> Maintenance. Users can export configuration files to a specified location and retrieve data by uploading an existing configuration file to the camera. -
Page 16: Tech Support Information
Tech Support Information This chapter will introduce how to delete previously-installed Viewer in the PC and how to setup the Internet security. Delete the Existing Viewer For users who have installed Viewer in the PC previously, please remove the existing Viewer before accessing the IP camera. Deleting the Viewer Activate the <Control Panel>, and then double click on <Add or Remove Programs>. -
Page 17: Setup Internet Security
Setup Internet Security If ActiveX control installation is blocked, please either set Internet security level to default or change ActiveX controls and plug-ins settings. Internet Security Level: Default Step 1: Start the Internet Explorer (IE). Step 2: Click on the <Tools> tab on the menu bar and select <Internet Options>.
