DivioTec TBR721 Quick Installation Manual

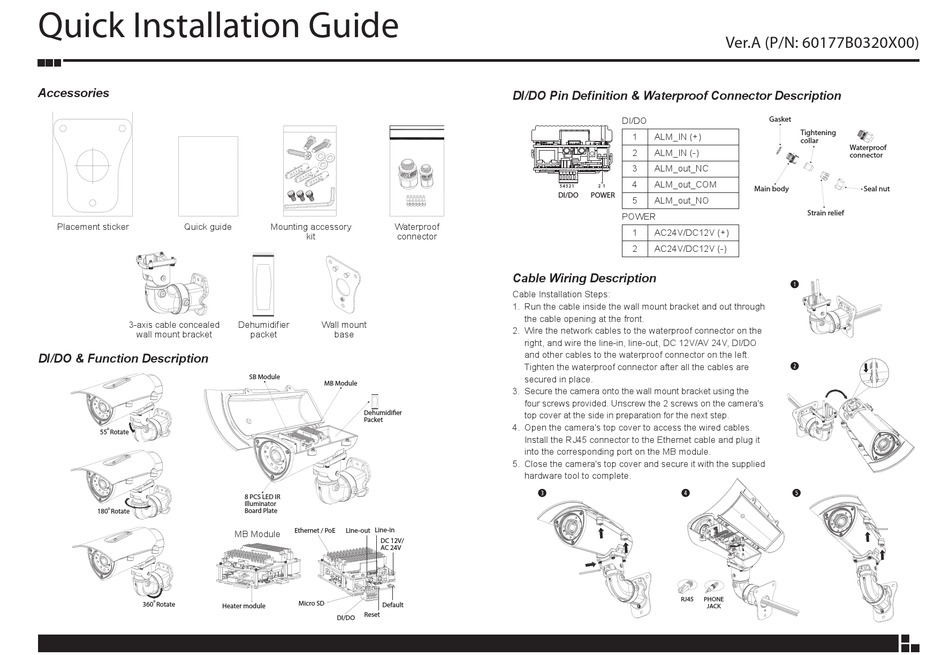

Quick Installation Guide

Accessories
Placement sticker Quick guide
3-axis cable concealed
wall mount bracket
DI/DO & Function Description
O
55 Rotate
180 O Rotate
360 O Rotate
Mounting accessory Waterproof
kit connector
Dehumidifier Wall mount
packet base
SB Module
MB Module
Dehumidi er
Packet
8 PCS LED IR
Illuminator
Board Plate
Ethernet / PoE Line-out Line-in
MB Module
DC 12V/
AC 24V
Micro SD
Default
Heater module
Reset
DI/DO
DI/DO Pin Definition & Waterproof Connector Description
DI/DO
1 ALM_IN (+)
2 ALM_IN (-)
3 ALM_out_NC
4 ALM_out_COM
5 4 3 2 1 2 1
DI/DO POWER
5 ALM_out_NO
POWER
1 AC24V/DC12V (+)
2 AC24V/DC12V (-)

Cable Wiring Description

Cable Installation Steps:
1. Run the cable inside the wall mount bracket and out through
the cable opening at the front.
2. Wire the network cables to the waterproof connector on the
right, and wire the line-in, line-out, DC 12V/AV 24V, DI/DO
and other cables to the waterproof connector on the left.
Tighten the waterproof connector after all the cables are
secured in place.
3. Secure the camera onto the wall mount bracket using the
four screws provided. Unscrew the 2 screws on the camera's
top cover at the side in preparation for the next step.
4. Open the camera's top cover to access the wired cables.
Install the RJ45 connector to the Ethernet cable and plug it
into the corresponding port on the MB module.
5. Close the camera's top cover and secure it with the supplied
hardware tool to complete.
e r
RJ45
Ver.A (P/N: 60177B0320X00)
Gasket
Tightening
collar
Waterproof
connector
Main body Seal nut
Strain relief
q
w
t
PHONE
JACK
