Transportation Network Camera

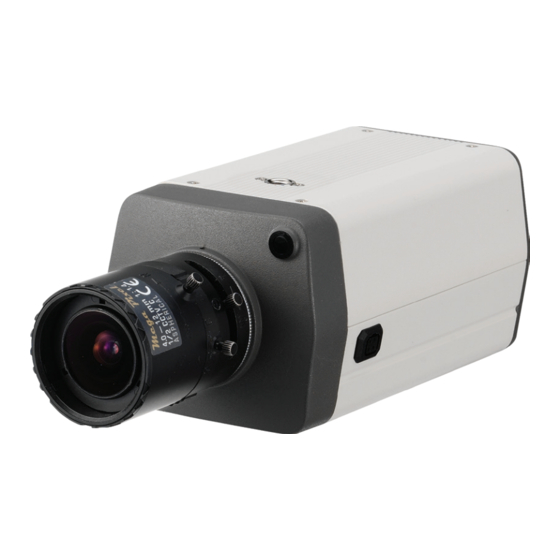

IP Camera TBR925
User Manual
Released on 2020.02.04
Note: The manual is subject to change without notice

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TBR925 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DivioTec TBR925

Summary of Contents for DivioTec TBR925

  • Page 1 Transportation Network Camera IP Camera TBR925 User Manual Released on 2020.02.04 Note: The manual is subject to change without notice...

  • Page 2: Table Of Contents

    ontents Chapter 1: Product Introduction Orientation ........................21 Digital Processing ......................21 Overview ..........................1 Image - ROI ...........................23 Physical Descriptions ......................2 Configurations ........................23 DI/O Pinout Assignment ....................2 Image - Privacy Zone ......................24 Hardware Installation ......................3 Configurations ........................24 Image - OSD .........................25 Chapter 2: Camera Configuration General Settings ......................25 Accessing the Camera’s Configuration Menu (Graphical User Interface) ..
  • Page 3 Firewall Configurations ....................33 Tampering Alarm ......................48 Network - LDAP ........................34 Tampering Schedule Settings ...................48 LDAP Configurations ....................34 Event - Object Detection ....................49 Network - DDNS ........................35 Object Detection Configurations ................49 DDNS Configurations ....................35 Object Schedule Settings ...................52 Network - RTSP ........................36 Event - FTP Upload ......................53 RTSP Configurations .....................36 FTP Upload Handler Configurations ...............53...

  • Page 4: Chapter 1: Product Introduction

    1: p hapter roduCt ntroduCtIon Overview...

  • Page 5: Di/O Pinout Assignment

    Physical Descriptions DI/O Pinout Assignment strobe (+) Flash (-) strobe (-) Flash (+) ALM2_IN (+) RS485_D (-) Alarm-out_No Alarm-out_Com ALM2_IN (-) RS485_D (+) ALM2_out_NC Light Sensor Alarm-out_Nc Alarm-In - ALM2_out_COM RS232_TXD Lens Cover Alarm-In + ALM2_out_NO RS232_RXD DI/O Aluminum Focus Ring Iris connector (Optional for P-Iris and DC Iris) Description...

  • Page 6: Hardware Installation

    Hardware Installation 1. Remove the lens cover. 2. Attach the camera lens (purchased separately) onto the focus ring and connect it to the iris connector. 3. After adjusting the lens focus, use the supplied hex wrench to tighten the two set screws into the set screw holes on the focus ring to secure the lens.

  • Page 7: Chapter 2: Camera Configuration

    The camera’s default IP address is 192.168.0.250, make sure the IP address 1. Download the CAM-FINDER installer le.Please access: http://www. of the computer accessing the camera is on the same network subnet diviotec.com/index.php?tid=1603&pid=31&cid=50 before proceeding. 2. Unzip the CAM-FINDER le to a location on the hard drive.
  • Page 8 4. Confirm the directory that the program will be installed on. To specify 6. Specify which user accounts on the computer can access the program, a different folder, please click on the Browse button and locate the the options are Everyone and Just me. desired installation folder.
  • Page 9 8. Click on the Next button to begin installation. 9. Once the installation process is complete, click on the Close button to finish. A shortcut will be created on the desktop.

  • Page 10: Cam-Finder

    CAM-FINDER 3. Once the camera is discovered, it will show the following information: ▪ Model name 1. Locate and open the CAM-FINDER software shortcut on the desktop. ▪ IP address ▪ MAC address ▪ UUID ▪ Serial number ▪ Version 4.
  • Page 11 Multiple Cameras If more than one IP camera are detected, the Camera List will show all the available cameras on the network. To access all the cameras’ configuration menu simultaneously, click on the Select All button to select all the cameras in the list, then click the Home Page button.

  • Page 12: Web Browser (Internet Explorer)

    Web Browser (Internet Explorer) Snapshot Takes a image snapshot from the camera, you will be prompted to store the 1. Locate and open the Internet Explorer (IE) shortcut on the desktop. image file onto the computer’s hard drive. 2. In the address bar, type 192.168.0.250 (default IP address of the camera) and then press the Enter button.

  • Page 13: Configuring The Camera's Setting

    Configuring the Camera’s Setting 1. To configure the camera’s setting, click on the Setup button on the main screen to enter the configuration menu. Setup...

  • Page 14: Browsing Through The Configuration Menu

    Browsing Through the Configuration Menu The layout of the configuration menu is split into two sections. All the camera settings are located on the left hand side of the interface, clicking The following are the camera settings available on the left hand side: on them will open their corresponding sub-menu on the right.

  • Page 15: Video - Video Configuration

    Video - Video Configuration Primary Stream 1 Codec Configures the format of the video stream, the options are H.265, H.264 and MJPEG. Resolution Configures the resolution of the video stream. The available options are 2048x1536, 1920x1080 and 1280x720. Rate Control Configures the Rate Control mode as CBR (constant bit rate) or CVBR (constrained variable bit rate) for the stream.

  • Page 16: Secondary Stream

    Video Configuration Cont. Smart GOP Enables or disables Smart GOP feature. Enabling it will allow GOP to automatically increase when no moving objects are detected to save bandwidth. When moving objects are detected, GOP will automatically decrease. Bit Rate Configures the bit rate, the range is 64~8000. Users can enter the value or adjust it through the slider bar.

  • Page 17: Third Stream

    Video Configuration Cont. Third Stream Resolution Configures the resolution of the video stream. The available option is 640x480. Quality Configures the video quality of the stream. The options are High, Medium and Low. Frame Rate Adjusts the frame rate of the video stream, the range is 0~15FPS. The stream will be off if 0 is selected.

  • Page 18: Video - Audio Configuration

    Video - Audio Configuration Audio Settings Audio In Enables or disables audio-in on the camera. Audio In Volume Volume adjustment for audio-in of the camera. The available options are High, Mid and Low. Audio Out Enables or disables audio-out on the camera. When enabled, specify the volume in the Volume textbox.

  • Page 19: Video - Digital Zoom

    Video - Digital Zoom Configurations Enables or disables digital zoom feature. Drag the mouse to select the digital zoom area directly on the live screen. When enabled, a zoom controller panel will appear at the bottom of the screen to move the digital zoom area toward four different directions in steps, as shown below.

  • Page 20: Image - Exposure

    Image - Exposure Configurations - Normal Mode Profile Selects which profile (Day or Night) to configure. Users can set up one Day profile and one Night profile. AE Mode The available options are Auto, Iris priority, Shutter priority and Lock. If Lock is selected, then Exposure Time Control, Gain Control and BLC cannot be edited.
  • Page 21 Exposure Cont. (Normal Mode) Gain Control The available options are OFF, Low, Medium, High and User Define. Select User Define to enter the value of Maximum Gain (the range is 1~512) manually. Gain The range is 1~512. It can only be edited when Lock is selected as the AE Mode.

  • Page 22: Day Night Setting

    Exposure Cont. (Normal Mode) Day Night Setting Image Profile Select Day or Night profile to automatically set up parameters quickly. The available options are AUTO, Force Day and Force Night. Day Night Control Select the Day and Night control mode. The available options are AUTO, Force Day, Force Night and Switch Schedule.

  • Page 23: Orientation

    Image - Basic Settings Orientation Mirror Flips the image horizontally (flip left-to-right) or vertically (flip top-to- bottom). They can be selected at the same time. Rotate Allows you to get a vertically oriented image from the camera. It is suitable for narrow corridors, hallways or aisles applications. Digital Processing Stabilize Enables or disables video stabilization function.
  • Page 24 Basic Settings Cont. Brightness Adjust Configures the brightness of the image, the range is 0 ~ 100, with 0 being the lowest brightness. Enter the values or adjust the bar to increase or decrease the values. The default value is 50. Hue Adjust Configures the overall hue of the image, the range is 0 ~ 100.

  • Page 25: Image - Roi

    Image - ROI Configurations ROI is used to select which areas will be monitored and recorded with higher image quality while using lower image quality for other non-ROI zones to save bandwidth and storage. The instructions below illustrate how to setup ROI.

  • Page 26: Image - Privacy Zone

    Image - Privacy Zone Configurations Configures which area of the video stream will be masked for privacy. There are 5 privacy zones that can be configured. 1. Select ON to enable Privacy Zone function. The default is OFF. 2. Select the area to set the privacy zone by holding down the mouse button and drag to make a rectangular square, release the button once the desired area is covered.

  • Page 27: Image - Osd

    Image - OSD General Settings Camera Name Specifies a name for the device. The maximum length is 32 characters. Background Configures the background color of the text overlay, the options are Translucent or Transparent. Text Color Configures the text colour as Black, White, Green or Yellow. Text Overlay There are 4 content positions (Top Left, Top Right, Bottom Left and Bottom Right) to display the camera name, current date/time and text overlay.

  • Page 28: Network - Basic

    Network - Basic IPv4 Settings DHCP Enables or disables DHCP, use this feature if the camera is connected to a network with DHCP server. To manually configure an IP address, disable DHCP and input the IP address, subnet mask, default gateway, primary and secondary DNS server address. System Settings HTTP Port Configures the HTTP port number of the web configuration menu.

  • Page 29: Rtmp Settings

    Basic Cont. RTMP Settings RTMP Enables or disables RTMP function. Configures the web URL address. Save Save button to apply the configurations, click on this button once all the settings are confirmed for the new changes to take effect.

  • Page 30: Network - Ftp

    Network - FTP Configurations Enable Enables or disables FTP access to this camera. This function is only available when an SD card is inserted. You can access files in the SD card attached to the IP camera. Password Specifies the FTP login password to access the IP camera. Max Connection Specifies the maximum number of FTP connections the IP camera can support.

  • Page 31: Network - Ssl

    Network - SSL SSL Configurations Mode Disabled: Support for http only. Optional: Support for http & https. Required: Support for https only. Certificate Install New Certificate Provides options to install a new CA certification. Save Save button to apply the configurations, click on this button once all the settings are confirmed for the new changes to take effect.

  • Page 32: Network - Ssh

    Network - SSH SSH Configurations Enable Enables or disables SSH access to this camera. Password Specifies the SSH login password to access the IP camera. Save Save button to apply the configurations, click on this button once all the settings are confirmed for the new changes to take effect.

  • Page 33: Network - 802.1X

    Network - 802.1x 802.1x Configurations Protocol The default is None to disable 802.1x function. Select the protocols to enable 802.1x function. The available protocols are EAP-MD5, EAP-TLS, EAP-TTLS or EAP-PEAP. After the protocol has been selected, manually configure the username, password and other required information.

  • Page 34: Network - Snmp

    Network - SNMP SNMP Configurations No SNMP Server Disables SNMP function. SNMP V2c Enables or disables SNMPv2c support. Community String Configures the community string. Trap Configuration Specifies the destination IP address to send SNMP trap messages. SNMP V3 Enables or disables SNMPv3 support. User Configures the SNMPv3 username.

  • Page 35: Network - Firewall

    Network - Firewall Firewall Configurations Mode Select OFF to disable the filtering of the specified IP address. Select Allow or Deny in the drop-down menu to specify the type of filtering rule applied to the IP address entered. Address1 to Address8 The IP address and associated protocol (TCP, UDP or None) to filter can be entered here.

  • Page 36: Network - Ldap

    Network - LDAP LDAP Configurations Enables or disables LDAP, use this feature if the camera is connected to a network with LDAP server. After enabling LDAP, manually configure the LDAP server and other required information. Save Save button to apply the configurations, click on this button once all the settings are confirmed for the new changes to take effect.

  • Page 37: Network - Ddns

    Network - DDNS DDNS Configurations Enable Enables or disables DDNS service. Hostname Hostname of the DDNS account. DDNS Server Select the DDNS service provider from the drop-down menu, the available providers are DynDNS, NO-IP, and Two-DNS. The default option is DynDNS.

  • Page 38: Network - Rtsp

    Network - RTSP RTSP Configurations Authentication Enables or disables verification of the account and password. The account and password are same as the camera’s login account and password. Port Configures the port number for stream 1 to stream 3. The range is 554/1025~65535.

  • Page 39: Multicast (Stream 1 To Stream 3)

    RTSP Cont. Multicast (Stream 1 to Stream 3) Enable RTSP Multicast Enables or disables RTSP multicast streaming. Always Multicast Check this option to enable the video stream to start multicast streaming without using RTCP. Video IP Configures the multicast address to stream video. Video Port Configures the port number of the video stream.
  • Page 40 RTSP Cont. Path Configures the URL address of the video stream. Configures the time-to-live threshold of the multicast datagram before it is discarded by the router. Save Save button to apply the configurations, click on this button once all the settings are confirmed for the new changes to take effect.

  • Page 41: Network - Gb28181

    Network - GB28181 GB28181 Configurations Enable Enables or disables GB28181 settings. After enabling GB28181, manually configure the related information for GB28181 settings. Save Save button to apply the configurations, click on this button once all the settings are confirmed for the new changes to take effect.

  • Page 42: System - Date/Time

    System - Date/Time Date/Time Configurations Display Format Displays the current date and time. There are various formats to select from the drop-down menu. Time Setting Time Server None: Disables synchronization of the current date/time through the internet. DHCP: If your DHCP server provides NTP server information, select this setting to enable NTP information retrieval.

  • Page 43: System - Maintenance

    System - Maintenance System Information Firmware Version Displays the current firmware version. Model Name Displays the IP camera model number. Serial Number Displays the IP camera serial number. MAC Address Displays the IP camera MAC number. Firmware Update To update the camera’s firmware, click on the Browse button and locate the firmware image file, once the file is selected, press the Upload button to begin.

  • Page 44: Backup

    Maintenance Cont. Reset to Factory Default Click this button to restore all the camera’s setting back to factory default, including IP address (default is 192.168.0.250). Download Log File Records all the status information of the camera in list format when the camera is connecting to the PC.

  • Page 45: System - User Management

    System - User Management Admin Setting Admin The default username is Admin. Users cannot change it. Password Set up the password for administrator’s authorization. Re-type Password Retype the same password to confirm. User List Displays user accounts available on the camera. Press New User to add a new account and set up the authorization level of this user from the following User Information.

  • Page 46: User Information

    User Management Cont. User Information This section allows users to set up each new user’s authorization level. A total of ten accounts can be created for Admins/Views. Access Level Admins: Has full control (read/write) over every configuration menu item. Views: Only has access (read) to the live view of the camera (main screen). User Name Username must be at least 1 and up to 16 characters.

  • Page 47: Event - Alarm Handler

    Event - Alarm Handler Alarm Handler Configurations Enable Enables or disables the alarm schedule setup. Alarm Schedule Settings Press S for a particular weekday to set up a 24-hour schedule automatically. Press D for a particular weekday to clear all the previous scheduled settings automatically.

  • Page 48: Event - Motion Detection

    Event - Motion Detection Motion Configurations This section configures which area of the live video will be monitored for detecting motion. Enable Enables or disables motion detection function. Sensitivity Configures the sensitivity of motion detection, the range is 0 to 100. Zone1 to Zone5 Setup Configures the type of area layout to use for motion detection.

  • Page 49: Motion Schedule Settings

    Motion Detection Cont. Motion Schedule Settings Press S for a particular weekday to set up a 24-hour schedule automatically. Press D for a particular weekday to clear all the previous scheduled settings automatically. Configure the scheduled time by holding down the mouse button and clicking the time block to enable the schedule settings on the selected time.

  • Page 50: Tampering Alarm

    Event - Tampering Alarm Tampering Alarm Enable Enables or disables the tampering alarm function. Tampering Sensitivity Configures the sensitivity level of the tampering alarm, the options are High, Medium and Low. Tampering Schedule Settings Press S for a particular weekday to set up a 24-hour schedule automatically. Press D for a particular weekday to clear all the previous scheduled settings automatically.

  • Page 51: Event - Object Detection

    Event - Object Detection Object Detection Configurations Enable Enables or disables object detection function. Detect mode Configures the methods of object detection, the options are Object- counting, Line Intrusion, Zone Object-counting and Zone Intrusion. Object-counting: To create a Object-counting area for calculation (no event trigger), on the live video screen, select the area by holding down the mouse button and draw the Object-counting lines, release the button once the desired area is covered.
  • Page 52 Object Detection Cont. Zone Intrusion: To create a Zone Intrusion area for triggering events, on the live video screen, select the area by clicking the mouse button to specify the first anchor point, then draw a line to place the second anchor point. Continue to draw lines for the third and fourth anchor points, then finish off the selection by clicking the first anchor point.
  • Page 53 Object Detection Cont. Outside for Zone Counting: Objects entering from outside the zone area to the inside will be counted as Outside. Objects leaving from inside the zone area to the outside will not be counted as Inside or Outside. Count Reset Resets all the counting results of Line Counting or Zone Counting to zero.

  • Page 54: Object Schedule Settings

    Object Detection Cont. Object Schedule Settings Press S for a particular weekday to set up a 24-hour schedule automatically. Press D for a particular weekday to clear all the previous scheduled settings automatically. Configure the scheduled time by holding down the mouse button and clicking the time block to enable the schedule settings on the selected time.

  • Page 55: Event - Ftp Upload

    Event - FTP Upload FTP Upload Handler Configurations Configures which type of event trigger to enable and the FTP server address that the camera will connect to. The options are: ▪ Trigger Alarm Detection 1 ▪ Trigger Alarm Detection 2 ▪...

  • Page 56: Event - Smtp Notification

    Event - SMTP Notification SMTP Notification Handler Configurations This section configures the SMTP mail server address that the camera will use for sending emails. From Specifies the email address of the sender. Trigger Event Configures which type of event trigger to enable and the SMTP server address that the camera will connect to.

  • Page 57: Smtp Server

    SMTP Notification Cont. SMTP Server Host Address Specifies the host name or IP address of the SMTP mail server. Port Number Specifies the port number of the SMTP mail server. Username Specifies the login username for the SMTP mail server. Password Specifies the login password for the SMTP mail server.

  • Page 58: Event - Network Storage

    Event - Network Storage Network Storage Configurations Network Storage This section configures the network storage server address that the camera will use when an event trigger is detected. Trigger Event Configures which type of event trigger to enable and the network storage server that the camera will connect to.

  • Page 59: Login Certificate

    Network Storage Cont. Login Certificate Username and Password Specifies the login username and password for the network storage server. Mount and Remove Network Storage Mount Set up a network connection with the network storage server. All the video recordings or snapshots from event triggers will be uploaded to the network storage server.

  • Page 60: Event - Alarm Output

    Event - Alarm Output Alarm Output This section configures the event trigger options for devices connected to the DI/DO of the camera. Trigger Alarm Detection 1 & 2: When a signal is detected from Alarm in, the Alarm out will be triggered. Trigger Motion Detection: When a motion detection event is detected, the Alarm out will be triggered.

  • Page 61: Event - Sd Record Handler

    Event - SD Record Handler SD Record Handler Configurations Configures which type of event trigger to enable the SD recording and scheduling function. The following options are available: ▪ Trigger Alarm Detection 1 ▪ Trigger Alarm Detection 2 ▪ Trigger Motion Detection ▪...

  • Page 62: Alarm/Motion/Tampering/Object Detection Settings

    SD Record Handler Cont. Alarm/Motion/Tampering/Object Detection Settings Record Type Selected: Snapshot Pre-event Snapshots Configures the number of pre-event snapshots to upload to SD card. The options are 0, 1, 3, 5 and 10. Post-event Snapshots Configures the number of post-event snapshots to upload to SD card. The options are 1, 3, 5, 10, 30 and 60.
